SHARP JW-214SA Original Industrial Spare JW Series Compatible

Product Overview

SHARP JW-214SA Original Industrial Spare JW Series Compatible: Ensuring System Stability in Demanding Industrial Environments

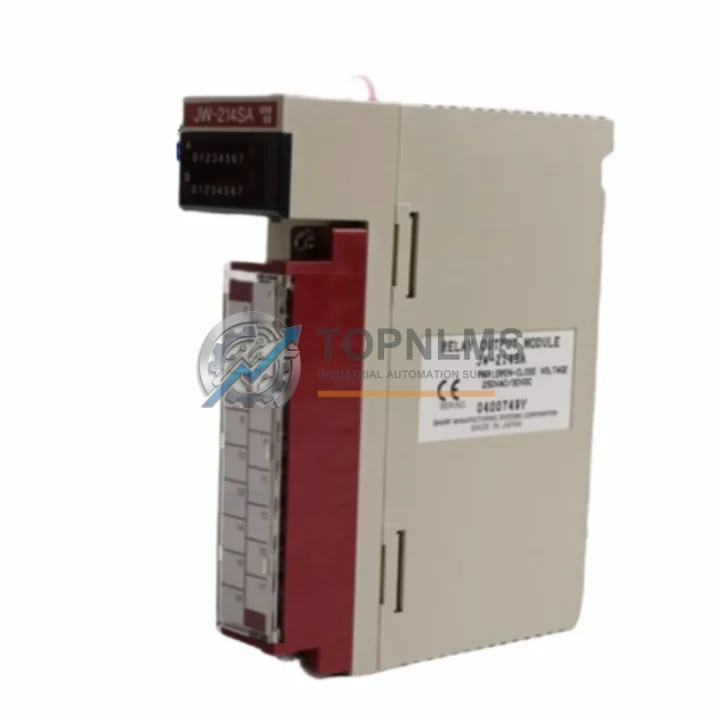

The SHARP JW-214SA is an original relay output module designed for the SHARP JW Series programmable logic controller platform. In industrial facilities where production continuity is non-negotiable, having a verified, original spare module on hand is one of the most effective strategies for minimizing unplanned downtime. The JW-214SA delivers reliable discrete output control through relay contacts, making it a critical component in machine control panels, conveyor systems, packaging lines, and process automation cabinets that rely on the JW Series architecture.

Whether you are managing a scheduled overhaul, responding to an unexpected module failure, or building a strategic spare parts inventory for aging SHARP JW Series installations, the JW-214SA represents a direct, compatible replacement that requires no firmware reconfiguration or hardware adaptation. Its original design ensures full electrical and logical compatibility with the JW Series backplane and CPU modules, preserving the integrity of your existing control system without costly re-engineering.

Critical Technical Specs

Preventive Maintenance Strategy

When a relay output module such as the JW-214SA is flagged for replacement during a scheduled maintenance window, experienced maintenance engineers know that the module itself is rarely the only component that warrants attention. A thorough inspection of the surrounding control cabinet often reveals adjacent components that are approaching end-of-life or showing early signs of degradation.

The JW-214SA interfaces directly with the JW Series backplane, so it is advisable to inspect the JW Series CPU module (such as the JW-21CU or JW-32CUH) for firmware integrity and battery status during the same maintenance cycle. A failing CPU battery can cause program loss on power interruption, compounding the impact of any output module fault. Alongside the CPU, the JW Series power supply module should be load-tested; an aging PSU delivering marginal voltage can accelerate relay contact wear across all output modules in the rack.

For facilities running mixed I/O architectures, it is equally prudent to inspect the JW Series digital input modules (such as the JW-212SA or JW-216SA) installed in the same base unit. Input modules sharing the same backplane bus are subject to the same environmental stresses — heat cycling, vibration, and humidity — as the output module being replaced. Replacing the JW-214SA without auditing adjacent I/O modules can result in a repeat maintenance call within weeks.

The field wiring connected to the JW-214SA’s relay output terminals should also be inspected. Terminal blocks and wiring connectors on relay output modules are subject to contact oxidation and thermal stress from switching loads. Loose or corroded terminals are a common root cause of intermittent output faults that are incorrectly attributed to the module itself. Replacing terminal blocks and re-torquing all field connections during a module swap is a low-cost step that significantly improves long-term reliability.

If the JW Series system communicates with upstream SCADA or DCS platforms, the JW Series communication module (such as a RS-232C or RS-485 link module) should be verified for stable data exchange after any rack-level maintenance. Communication modules are sensitive to ground potential shifts that can occur when relay output modules switch inductive loads. A signal isolator or surge suppressor installed on high-frequency switching outputs is a recommended addition for systems controlling motors, solenoids, or contactors.

For older JW Series installations, it is also worth reviewing the condition of the controller base unit or backplane itself. Backplane connector pins can develop micro-arcing damage over years of module insertion and removal cycles. If the JW-214SA is being replaced due to erratic behavior rather than a clear electrical fault, a damaged backplane slot may be the underlying cause. Stocking a spare backplane unit alongside output and input modules is a best practice for facilities where the JW Series is a critical production asset.

Finally, for facilities managing multiple control cabinets, a structured spare parts inventory that includes the JW-214SA alongside fuse modules, 24VDC power supplies, and HMI interface units compatible with the JW Series ecosystem ensures that any single-point failure can be resolved within one shift, without waiting for international procurement lead times.

Strategic Replacement Solutions

The SHARP JW Series was widely deployed across Japanese and Asian manufacturing facilities throughout the 1990s and 2000s. Many of these installations remain in active production service, supported by a combination of original spare parts and experienced maintenance teams who understand the platform’s reliability and programming environment. However, sourcing original JW Series modules through standard distribution channels has become increasingly difficult as the product line has matured.

The JW-214SA available through TOPNLMS is an original SHARP module — not a third-party clone or remanufactured substitute. This distinction is critical for facilities where output module compatibility is validated against a certified machine configuration. Using non-original modules in safety-related or process-critical applications can introduce undocumented electrical differences that affect relay contact ratings, response times, or backplane communication behavior.

For maintenance teams managing the transition from aging JW Series hardware, the JW-214SA serves as a direct drop-in replacement that preserves the existing ladder logic program, I/O address mapping, and field wiring layout. There is no need to modify the PLC program, reconfigure I/O assignments, or retrain operators. The replacement can be completed during a planned maintenance window — typically within one to two hours for a trained technician — restoring full system functionality without extended downtime.

For facilities considering a longer-term migration strategy, maintaining a buffer stock of JW-214SA modules provides operational continuity during the transition period, allowing engineering teams to plan and validate a system upgrade without the pressure of an imminent production stoppage. A recommended buffer stock of two to three units per active JW Series rack is a practical guideline for facilities with annual maintenance cycles.

Support FAQ

Q1: Is the JW-214SA a new original module or a refurbished unit?
The JW-214SA supplied by TOPNLMS is an original SHARP module sourced from authorized industrial surplus channels. Each unit undergoes functional testing prior to shipment to verify relay output operation and backplane interface integrity. A 12-month warranty is provided from the date of shipment.

Q2: How do I verify compatibility with my existing JW Series installation?
The JW-214SA is designed for use with SHARP JW Series PLC base units. Compatibility can be confirmed by matching the module slot type on your existing base unit and verifying the I/O address range in your PLC program. If you require compatibility verification support, contact our technical team with your base unit model number and current I/O configuration.

Q3: What is the lead time and shipping arrangement for the JW-214SA?
In-stock units are dispatched within 1–3 business days. International shipments are supported with tracking. Expedited shipping options are available for urgent maintenance requirements. Please contact us directly to confirm current stock availability and shipping timelines for your destination.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the SHARP JW Series technical documentation. Warranty claims require the original invoice and a description of the fault condition. Units damaged by incorrect installation, overvoltage, or environmental conditions outside the specified operating range are not covered under the standard warranty.
