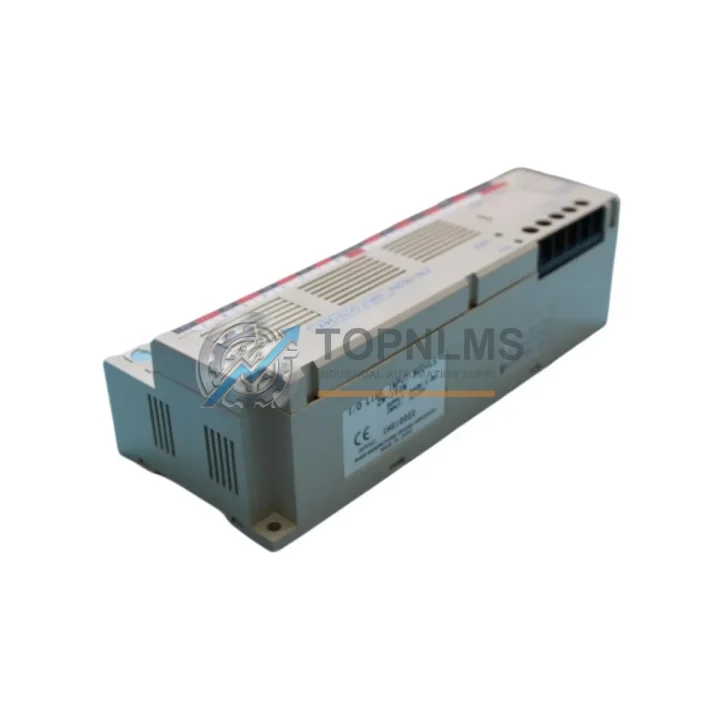

Sharp ZW-162N Ruggedized DC Digital Input Module

Product Overview

Sharp ZW-162N Ruggedized DC Digital Input Module: Industrial Resilience for Harsh Environments

The Sharp ZW-162N is a 16-point DC digital input module engineered for the ZW Series programmable logic controller platform. Designed to operate reliably in the most demanding industrial conditions — including high-temperature process areas, high-humidity enclosures, dust-laden factory floors, vibration-intensive machinery bases, and environments with significant electromagnetic interference — the ZW-162N delivers the signal integrity and long-term stability that mission-critical automation systems require.

In continuous production lines where downtime is measured in thousands of dollars per minute, the ZW-162N provides the deterministic input scanning and noise immunity that plant engineers depend on. Its compact DIN-rail form factor integrates seamlessly into standard control cabinets alongside ZW Series CPU modules, output modules, and analog I/O expansion units, enabling a fully coordinated control architecture without signal degradation or compatibility compromises.

Whether deployed in a petrochemical processing skid, a mining conveyor control panel, a water treatment SCADA cabinet, or a steel mill drive coordination system, the ZW-162N maintains consistent 24 VDC input recognition thresholds and reliable communication with the host PLC backplane — even when adjacent variable frequency drives, large motor starters, or high-current contactors introduce conducted or radiated interference into the panel environment.

Rugged Specifications Table

Comprehensive Protection Solutions

The ZW-162N is rarely deployed in isolation. In a well-engineered control cabinet, it works in concert with a full suite of ZW Series components to form a complete, fault-tolerant automation architecture. The ZW-162N typically interfaces with the ZW Series CPU module, which handles ladder logic execution and coordinates data exchange across the I/O backplane. Alongside the ZW-162N, engineers commonly install ZW Series DC digital output modules to drive solenoid valves, motor contactors, and indicator lamps — creating a balanced input/output configuration that covers the full range of field device signals.

For analog process variables such as temperature, pressure, flow, and level, the ZW Series analog input modules complement the ZW-162N by bringing 4–20 mA and 0–10 V signals into the same PLC rack. In applications where communication with SCADA systems or distributed control networks is required, ZW Series communication modules supporting protocols such as Modbus RTU, RS-485, or proprietary Sharp network interfaces are mounted in the same backplane, ensuring seamless data flow without additional gateways.

Power integrity is equally critical. Industrial-grade DIN-rail power supplies — typically 24 VDC units with wide AC input ranges and built-in surge protection — feed the ZW-162N and its companion modules. Surge protection devices and EMC filters installed at the cabinet entry point further shield the ZW-162N’s input circuits from transient voltages generated by nearby variable frequency drives and large inductive loads. Terminal blocks and marshalling modules provide the field wiring interface, while safety relays and safety I/O modules in adjacent slots handle emergency stop circuits and SIL-rated interlock functions, ensuring that the overall system meets the functional safety requirements of the installation.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the ZW-162N monitors discrete field signals from wellhead sensors, valve position switches, and pressure switch contacts. Its optical isolation prevents ground loops and protects the PLC backplane from the high-voltage transients common in hazardous area cable runs. In mining operations, the module tracks conveyor belt run/stop status, crusher overload contacts, and ventilation fan feedback signals — all in environments where coal dust, silica particulate, and mechanical vibration are constant factors.

In power generation plants — whether thermal, hydroelectric, or renewable — the ZW-162N captures breaker status, transformer tap position feedback, and auxiliary relay contacts, feeding real-time discrete state data to the plant DCS or SCADA layer. Water and wastewater treatment facilities rely on the module to monitor pump run/fault signals, level switch contacts, and valve open/close feedback across multiple lift stations and treatment stages, where humidity and chemical vapors challenge less robust hardware.

In metallurgical and steel production environments, where radiated heat from furnaces and electromagnetic noise from large DC drives are ever-present, the ZW-162N’s photocoupler isolation and wide operating temperature range make it a dependable choice for monitoring rolling mill position sensors, ladle transfer car limit switches, and cooling water flow switches. Its proven compatibility with the ZW Series platform means that replacement during scheduled maintenance shutdowns is straightforward, with no re-engineering of the control program required.
