SEW-Eurodrive MC07B0022-5A3-4-00 MOVITRAC B Replacement

Product Overview

SEW-Eurodrive MC07B0022-5A3-4-00 MOVITRAC B Replacement & Upgrade Solution: Seamless Transition from Legacy Drive Systems

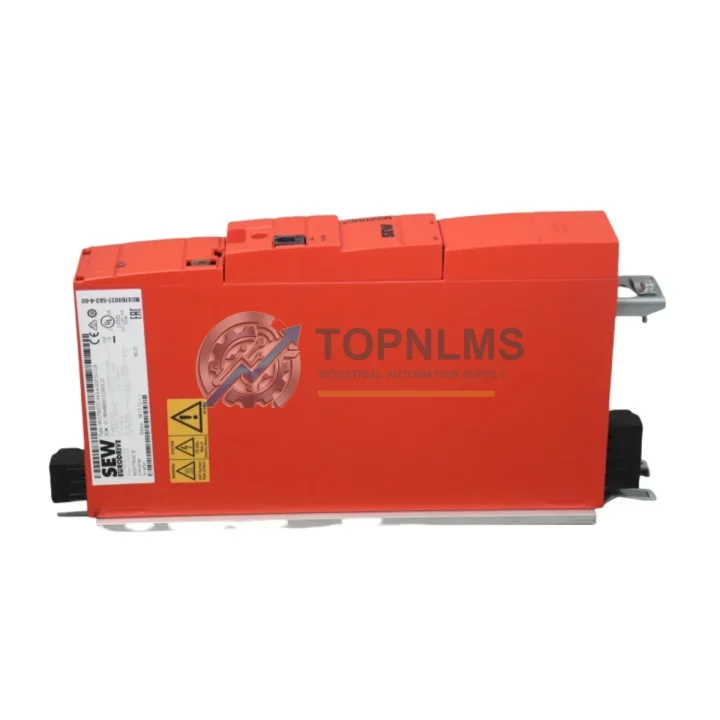

The SEW-Eurodrive MC07B0022-5A3-4-00 is a 2.2 kW, three-phase 400 V AC frequency inverter from the MOVITRAC B series — one of SEW-Eurodrive’s most widely deployed compact drive platforms in European and global industrial installations. As aging MOVITRAC B units reach end-of-service life or become increasingly difficult to source through OEM channels, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that minimize downtime, preserve existing wiring infrastructure, and maintain compatibility with installed control architectures.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find and discontinued industrial automation components. Our MC07B0022-5A3-4-00 inventory is drawn from verified supply channels, subjected to pre-shipment functional inspection, and backed by a 12-month replacement warranty — giving your maintenance and procurement teams the confidence to plan ahead rather than react to unplanned failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MC07B0022-5A3-4-00 retrofit rarely involves the drive unit alone. In most MOVITRAC B installations, the inverter operates as part of a broader drive and control architecture that includes upstream and downstream components — all of which must be evaluated during the migration process.

For sites running multiple MOVITRAC B drives on a shared RS-485 bus, the SEW-Eurodrive FBG11B operator panel is the most practical tool for parameter cloning. Before decommissioning the old unit, technicians should use the FBG11B to capture the full parameter set — including ramp times, reference frequency, and digital input assignments — and restore it to the replacement MC07B0022-5A3-4-00 without requiring a laptop or MOVITOOLS connection on the shop floor.

Where the existing installation uses PROFIBUS-DP for PLC integration — common in Siemens S7-300 or S7-400 environments — the SEW-Eurodrive FBG11B gateway module or the DFP21B PROFIBUS-DP fieldbus interface must be verified for compatibility with the replacement unit. If the original drive carried a DFP21B option card, confirm that the card is transferable or that a replacement DFP21B is available, as the GSD file and node address configuration will need to be preserved to avoid PLC program changes.

In control cabinets where the MC07B0022-5A3-4-00 is paired with a Siemens SIMATIC S7-1200 or S7-1500 PLC via USS protocol over RS-485, the existing PLC function block (FB USS) and parameter assignments typically require no modification, provided the replacement drive’s USS address and baud rate are set identically to the outgoing unit. This is a key advantage of like-for-like MOVITRAC B replacement: the PLC program remains untouched.

Power supply integrity is equally important. Many MOVITRAC B Size 1 installations share a 24 V DC control supply rail with other devices — such as the SEW-Eurodrive UOH11A control unit, safety relays, or terminal I/O modules. Before energizing the replacement drive, verify that the 24 V supply rail can sustain the inrush current of the new unit alongside existing loads. A PHOENIX CONTACT QUINT-PS 24VDC power supply or equivalent industrial DIN-rail PSU with sufficient current headroom is recommended if the existing supply is marginal.

For installations where the MOVITRAC B drives a conveyor, pump, or fan through a motor contactor bypass circuit, the motor contactor (e.g., Schneider Electric LC1D09 or equivalent) and associated overload relay should be inspected during the retrofit. Contactors that have accumulated significant switching cycles may introduce nuisance trips or contact bounce that can be misdiagnosed as drive faults on the new unit.

If the retrofit is part of a broader control system modernization — for example, migrating from a legacy SEW-Eurodrive MOVI-PLC motion controller to a modern IEC 61131-3 platform — the MC07B0022-5A3-4-00 can serve as a stable interim drive while the upper-level control architecture is upgraded in phases. This phased approach is particularly valuable in continuous-process environments where a full system cutover is not operationally feasible.

Finally, for sites maintaining a spare parts inventory, we recommend stocking at least one additional MC07B0022-5A3-4-00 alongside related consumables such as the SEW-Eurodrive BW100-006 braking resistor and the FBG11B operator panel. This ensures that a second unplanned failure can be resolved within hours rather than days, without waiting for international freight.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor cable and terminal wiring when replacing the MC07B0022-5A3-4-00?
A: In most cases, yes. The MOVITRAC B Size 1 terminal layout (L1/L2/L3 input, U/V/W output, PE, and X2 control terminals) is consistent across production batches. However, always cross-reference the terminal diagram in the MOVITRAC B operating instructions (SEW document 11295013) against your existing wiring before energizing. Pay particular attention to the X2 analog input (0–10 V or 0/4–20 mA) jumper setting, which must match the signal source.

Q: Do I need to reprogram the PLC after replacing the drive?
A: Not if the replacement unit is configured with identical USS address, baud rate, and parameter set. Export the parameter set from the outgoing drive using MOVITOOLS MotionStudio or the FBG11B keypad before removal. Restore the parameter set to the new unit and verify via the PLC diagnostic screen before returning the axis to automatic mode.

Q: Is the MC07B0022-5A3-4-00 compatible with PROFIBUS-DP networks?
A: The base unit communicates via USS (RS-485). PROFIBUS-DP connectivity requires the DFP21B fieldbus interface option card. If the outgoing drive carried a DFP21B, confirm whether the card can be transferred to the replacement unit (check firmware revision compatibility) or whether a new DFP21B is required. The GSD file and PROFIBUS node address must be preserved to avoid changes to the PLC hardware configuration.

Q: What is the physical installation space requirement?
A: The MC07B0022-5A3-4-00 is a Size 1 MOVITRAC B unit: 72 mm wide, 173 mm high, 149 mm deep. It requires a minimum clearance of 100 mm above and below for ventilation. If the existing cabinet cutout was sized for a MOVITRAC 31C or earlier MOVITRAC B revision, verify that the depth clearance is sufficient, as some earlier units were shallower.

Q: Can the existing braking resistor be reused?
A: Yes, provided the resistor’s resistance value and continuous power rating are within the specification for the MC07B0022-5A3-4-00 (minimum resistance: 68 Ω; recommended: BW100-006 or equivalent). Inspect the resistor for signs of thermal stress or open-circuit condition before reuse.

Q: What commissioning steps are required after installation?
A: After mechanical installation and wiring, restore the parameter set, set the motor nameplate data (P301–P305), verify the direction of rotation with the motor uncoupled, and perform a ramp-up test at reduced speed before returning to full-load operation. Document the commissioning date and parameter checksum for maintenance records.

Warranty Assurance

Every MC07B0022-5A3-4-00 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment confirmation. Our pre-shipment inspection protocol includes power-on functional verification, output voltage balance check across all three phases, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Replacement units are dispatched from our Xiamen warehouse via express freight (DHL / FedEx / SF International), with tracking provided upon dispatch. We do not require the defective unit to be returned before dispatching the replacement in confirmed warranty cases — minimizing your downtime exposure.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration (HS 8504.40) upon request. All units are shipped with ESD-protective packaging and moisture barrier bags suitable for long-term storage if the unit is held as a spare.

For volume orders (3+ units), please contact our sales team directly for lead time confirmation, consolidated shipping options, and volume pricing.
