SEW-EURODRIVE MM15D-503-00 Original Industrial Spare MOVIMOT Compatible

Product Overview

SEW-EURODRIVE MM15D-503-00 Original Industrial Spare MOVIMOT Compatible: System Stability and Industrial Spare Maintenance Value

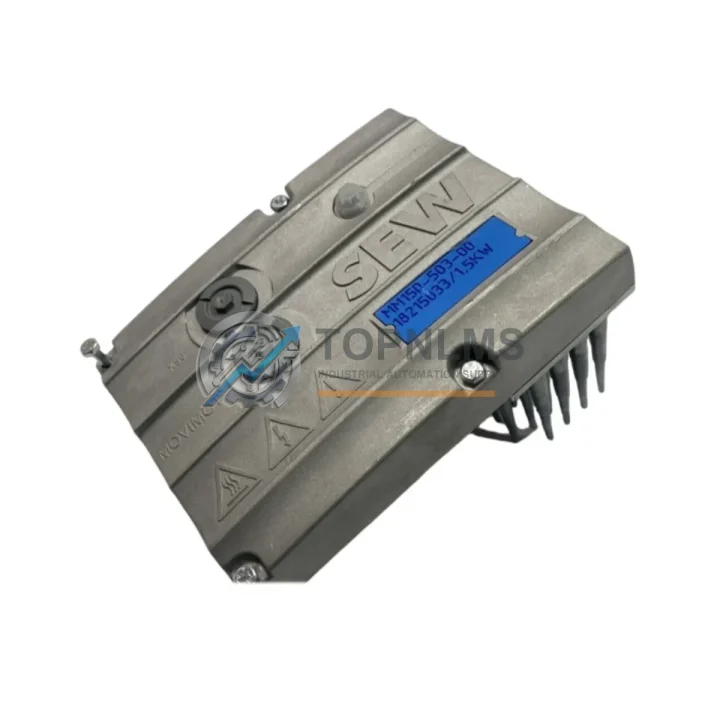

The SEW-EURODRIVE MM15D-503-00 is a genuine MOVIMOT decentralized inverter drive rated at 1.5kW and 500V with IP65 ingress protection. Designed for direct motor-mounting in distributed drive architectures, this unit eliminates the need for a centralized control cabinet by integrating the frequency inverter directly onto the motor. In industrial environments where uptime is measured in production output, having a verified original spare of the MM15D-503-00 on hand is a foundational element of any responsible maintenance strategy.

Decentralized drive systems like the MOVIMOT series are widely deployed across conveyor lines, packaging machinery, material handling systems, and automated warehousing. When a drive fails, the entire downstream process halts. A pre-stocked MM15D-503-00 spare reduces mean time to repair (MTTR) from days to under an hour, protecting production schedules and avoiding costly emergency procurement at inflated spot-market prices.

Critical Technical Specs

Preventive Maintenance Strategy

A MOVIMOT MM15D-503-00 failure rarely occurs in isolation. Decentralized drive systems share power distribution infrastructure, fieldbus networks, and mechanical load paths. A disciplined preventive maintenance inspection triggered by one drive fault should extend to the entire drive zone and associated control architecture.

When replacing or inspecting an MM15D-503-00, maintenance engineers should simultaneously verify the condition of the MOVIMOT MM07D-503-00 and MM22D-503-00 units operating on the same conveyor segment — drives of different power ratings sharing the same bus topology are subject to identical voltage transient stress. The SEW-EURODRIVE MFZ31A fieldbus gateway or MFZ32A AS-Interface module connecting the MOVIMOT units to the PLC should be inspected for firmware version alignment and connector corrosion, as communication faults are a leading cause of nuisance drive trips.

The 24V DC auxiliary power supply feeding the MOVIMOT control electronics — often a SITOP PSU100S or equivalent DIN-rail power supply — should be load-tested during the maintenance window. A degraded power supply delivering marginal voltage under load can cause intermittent drive resets that are misdiagnosed as drive failures, resulting in unnecessary component replacement. Similarly, the motor connection cable assembly (hybrid power and encoder cable, typically SEW type BW or equivalent shielded VFD cable) should be inspected for insulation breakdown, particularly at the motor terminal box entry point where mechanical flexing and heat cycling concentrate wear.

For facilities running SEW-EURODRIVE motors in wet or washdown zones, the IP65-rated terminal box cover gasket and cable gland seals on the MM15D-503-00 housing should be replaced as a matter of course during any drive swap — these consumable seals are inexpensive insurance against moisture ingress that can destroy a replacement drive within weeks. If the installation uses a MOVIMOT parameter module (MPM) for parameter storage and transfer, verify that the MPM firmware and parameter set are current before commissioning the replacement drive, as a parameter mismatch can cause immediate overcurrent faults on startup.

Facilities with aging MOVIMOT installations should also audit their stock of SEW-EURODRIVE brake rectifiers (BGE or BMP series) and motor thermistor evaluation relays. These components interact directly with the drive’s safety chain; a failed brake rectifier or open thermistor circuit will trigger a drive fault that appears identical to a drive hardware failure on the HMI alarm log. Stocking these low-cost components alongside the MM15D-503-00 spare ensures that the maintenance team can resolve the fault at root cause rather than replacing the drive unnecessarily.

Strategic Replacement Solutions

The MM15D-503-00 is a mature product in the MOVIMOT MM generation. While SEW-EURODRIVE continues to support this series, facilities planning long-term asset lifecycle management should be aware that the MM generation may eventually transition to the newer MOVIMOT flexible (MMF) platform. Stocking original MM15D-503-00 units now secures supply at current pricing and avoids the engineering effort of a forced migration during an unplanned outage.

For facilities that have already standardized on the MM series across multiple conveyor zones, a strategic approach is to maintain a minimum of one MM15D-503-00 spare per five installed units, with a reorder trigger set at one unit remaining. This buffer absorbs both random failures and the occasional drive damaged during maintenance activities. Given typical lead times for industrial automation components, a 4–8 week procurement cycle means that a zero-stock position at the time of failure will result in extended downtime regardless of expedite fees.

The MM15D-503-00 is a direct replacement for earlier MM15C-503-00 variants in most installations, provided the motor nameplate ratings and control wiring are verified before commissioning. This backward compatibility allows facilities to consolidate their spare parts inventory around a single current part number, reducing the complexity of spare parts management and the risk of installing an incorrect variant under time pressure.

All MM15D-503-00 units supplied by TOPNLMS are sourced as original SEW-EURODRIVE components, inspected upon receipt, and function-tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are packaged in anti-static, moisture-barrier packaging suitable for long-term storage in a spare parts room environment.

Support FAQ

Q1: Is the MM15D-503-00 compatible with all SEW-EURODRIVE DRS/DRE series motors?
The MM15D-503-00 is designed for use with SEW-EURODRIVE three-phase motors in the DRS, DRE, and DRP series with matching power and voltage ratings. Compatibility should be verified against the motor nameplate and the MOVIMOT system manual (document number 16725020) before installation. If the existing motor was previously paired with an MM15D-503-00, the replacement is a direct swap with no wiring changes required.

Q2: What pre-shipment testing is performed on each unit?
Each MM15D-503-00 unit undergoes functional verification prior to dispatch, including power-on self-test, output voltage symmetry check, and communication interface verification where applicable. Units that do not pass inspection are not shipped. A test record is available upon request for quality-critical applications.

Q3: How should the MM15D-503-00 be stored as a long-term spare?
Store in original anti-static packaging in a dry environment at 10–40°C with relative humidity below 95% non-condensing. Avoid storage near strong magnetic fields or corrosive atmospheres. For storage exceeding 12 months, SEW-EURODRIVE recommends a power-on cycle to reform the DC bus capacitors before placing the unit in service. TOPNLMS packaging is designed to meet these storage requirements out of the box.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as defined in the SEW-EURODRIVE MOVIMOT system manual. It does not cover damage resulting from incorrect installation, overvoltage events, mechanical impact, or operation outside rated parameters. Warranty claims are processed with a target response time of 3 business days from receipt of the returned unit.
