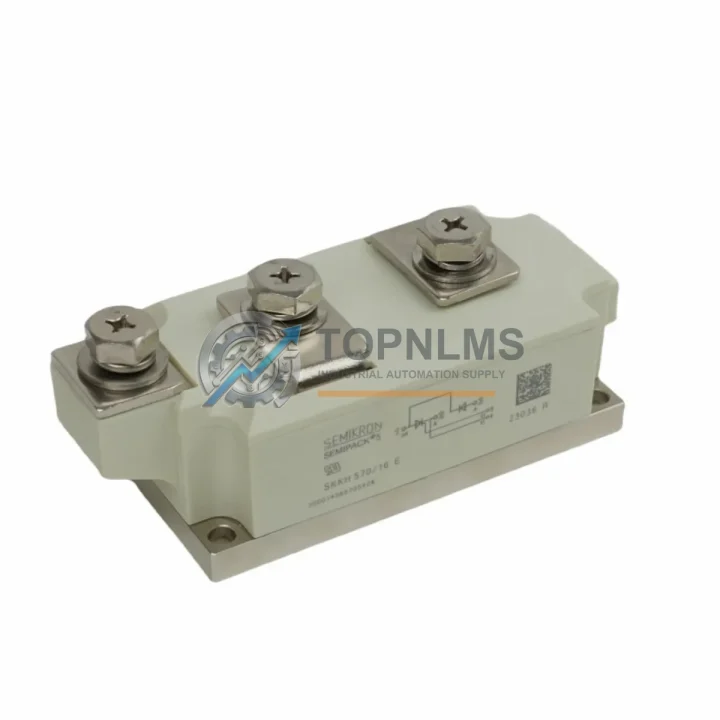

SEMIKRON SKKH570/16E Ruggedized Thyristor Module

Product Overview

SEMIKRON SKKH570/16E Ruggedized Thyristor Module: Industrial Resilience for Harsh Environments

The SEMIKRON SKKH570/16E is a high-current, half-controlled thyristor bridge module engineered for continuous, reliable operation in the most demanding industrial environments. Rated at 570A average on-state current (IT(AV)) and 1600V repetitive peak off-state voltage (VDRM/VRRM), this SKKH-series module is purpose-built for heavy-duty power conversion applications where thermal stability, electromagnetic immunity, and long-term mechanical integrity are non-negotiable.

Manufactured in Germany to SEMIKRON’s exacting quality standards, the SKKH570/16E is a direct-fit replacement and upgrade solution for legacy thyristor assemblies across steel mills, mining hoists, chemical processing lines, and large-scale motor drive systems. Its robust aluminum oxide ceramic substrate and pressure-contact construction deliver superior thermal cycling resistance, making it the preferred choice for engineers who cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern industrial control cabinet, the SKKH570/16E does not operate in isolation — it is the power heart of a carefully coordinated system. For optimal performance and safety, it is typically paired with a SEMIKRON SKHI22A gate driver unit, which provides the precise firing pulses required for controlled rectification while offering short-circuit protection and desaturation detection. Upstream, a SEMIKRON SKT570/16E fast thyristor or equivalent crowbar device may be deployed for fault-current interruption in the event of a downstream short circuit.

Thermal management is critical at 570A continuous current. The SKKH570/16E is designed to mount directly onto SEMIKRON P16 or equivalent forced-air or water-cooled heatsink assemblies, ensuring junction temperatures remain within safe limits even during peak production cycles. A PT100 or NTC temperature sensor embedded in the heatsink, monitored by the PLC or DCS safety loop, provides real-time thermal feedback to prevent overtemperature trips.

On the control side, the module integrates seamlessly into systems governed by Siemens S7-300 or S7-400 PLC platforms via analog output cards that generate the firing angle reference signal. In DCS-controlled environments such as those running on ABB Freelance or Honeywell Experion architectures, the thyristor bridge is typically supervised through a dedicated power electronics controller that interfaces with the DCS via PROFIBUS DP or MODBUS RTU. Phoenix Contact QUINT-series 24VDC industrial power supplies provide stable auxiliary power to the gate driver and control logic, while Weidmüller or Phoenix Contact terminal blocks ensure reliable signal and power distribution within the cabinet.

For applications requiring functional safety compliance, a Pilz PNOZ or Siemens 3SK safety relay module can be integrated into the enable chain of the gate driver, ensuring the thyristor bridge is inhibited during emergency stop or guard-open conditions. Surge protection on the AC input side — typically a DEHN or OBO Bettermann Type 2 SPD — guards the module against transient overvoltages from grid switching events, a common hazard in mining and heavy industry substations.

Application in Critical Infrastructure

The SEMIKRON SKKH570/16E is a proven workhorse across the most demanding sectors of critical infrastructure:

Steel & Metals Processing: In rolling mill main drives and continuous casting lines, thyristor bridge rectifiers based on the SKKH570/16E deliver the precise, high-current DC output required for speed-controlled DC motors. The module’s low thermal resistance and high surge current capability allow it to sustain the repetitive overload cycles inherent in reversing mill drives without degradation.

Mining & Mineral Processing: Hoist drives, conveyor systems, and ball mill drives in underground and open-pit mining operations demand power electronics that can withstand extreme vibration, dust ingress, and wide ambient temperature swings. Installed in sealed, climate-controlled control cabinets, the SKKH570/16E provides the reliability that keeps production running through multi-shift, 24/7 operations.

Oil, Gas & Petrochemical: In pump motor drives and compressor control systems at refineries and offshore platforms, the SKKH570/16E supports controlled soft-start and speed regulation of large DC motors. Its high isolation voltage (3600V RMS substrate-to-baseplate) provides an additional layer of protection in environments where ground fault detection is critical to personnel safety.

Power Generation & Utilities: Excitation systems for synchronous generators and large transformer tap-changer drives rely on half-controlled thyristor bridges for precise voltage regulation. The SKKH570/16E’s stable gate trigger characteristics ensure consistent firing angle control across the full operating temperature range, supporting grid stability in power plants and substations.

Water & Wastewater Treatment: Large pump drives and aeration blower systems in municipal water treatment facilities benefit from the SKKH570/16E’s long service life and low maintenance requirements. In these applications, unplanned downtime directly impacts public health infrastructure, making the module’s 12-month warranty and pre-shipment testing protocol a critical procurement consideration.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
Every SKKH570/16E unit shipped by TOPNLMS carries a 12-month warranty against manufacturing defects, covering failure under normal operating conditions. Prior to shipment, each module undergoes electrical testing including forward voltage drop, gate trigger current verification, and isolation resistance measurement. In the event of a warranty claim, we provide RMA support and technical documentation to facilitate rapid replacement and minimize production downtime.

Q2: How do I confirm compatibility with my existing SEMIKRON heatsink and gate driver assembly?
The SKKH570/16E uses the standard SEMIKRON SKKH package footprint with M6 mounting screws and a 34mm pitch between thyristor and diode sections. It is dimensionally and electrically compatible with all SKKH570-series variants sharing the same package. We recommend cross-referencing your existing gate driver’s maximum gate current output against the SKKH570/16E’s IGT specification (≤150mA). Our technical team can assist with compatibility verification prior to order confirmation.

Q3: Is long-term supply availability guaranteed for this module?
SEMIKRON’s SKKH series is a mature, widely deployed product line with strong aftermarket availability. TOPNLMS maintains buffer stock of high-demand SKKH-series modules to support both planned maintenance schedules and emergency replacement scenarios. For customers with critical infrastructure dependencies, we offer reserved stock arrangements and lead-time commitments upon request.

Q4: What safety precautions apply when replacing the SKKH570/16E in a live industrial installation?
Replacement of a thyristor bridge module must always be performed with the drive system fully de-energized, DC bus discharged, and appropriate lockout/tagout (LOTO) procedures in place. The module’s baseplate must be properly torqued to the heatsink (5 Nm) using thermal interface material to ensure rated thermal performance. Gate connections should be verified against the original wiring diagram before re-energization. TOPNLMS provides datasheet and application note support to assist maintenance engineers with safe replacement procedures.
