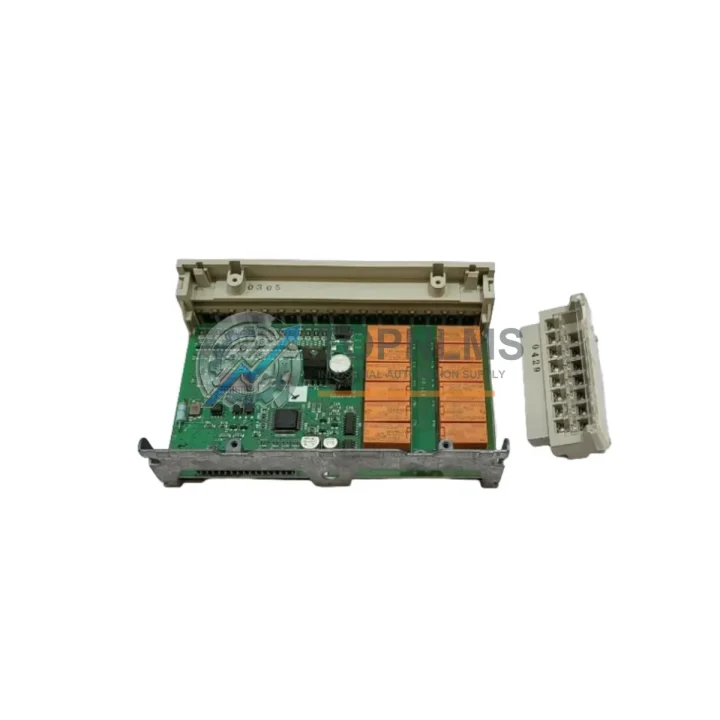

Schneider TSXDMZ28DR Replacement/Upgrade Solution for TSX Micro: Seamless Transition from Legacy I/O to Modern Control

The Schneider Electric TSXDMZ28DR is a 28-point mixed relay I/O module designed for the TSX Micro series of compact PLCs. As Schneider Electric progressively phases out legacy TSX Micro hardware, many industrial facilities operating on TSXP571634M, TSXP572634M, or TSXP573634M base controllers are now facing the critical challenge of sourcing compatible I/O expansion modules to maintain production continuity. The TSXDMZ28DR remains one of the most widely deployed relay output modules in this platform, and TOPNLMS maintains verified stock to support your replacement and upgrade requirements without extended lead times.

This module provides 16 discrete inputs (24 VDC) and 12 relay outputs, making it a direct fit for machine control panels, conveyor systems, packaging lines, and process automation cabinets where relay-isolated outputs are required for motor starters, solenoid valves, and pilot lamps. Its compact DIN-rail-compatible form factor integrates directly into the TSX Micro rack without additional mounting hardware, preserving your existing cabinet space allocation and wiring layout.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TSXDMZ28DR replacement rarely involves the I/O module alone. In most TSX Micro retrofit projects, engineers simultaneously address adjacent components to ensure system-wide reliability. The TSXP571634M and TSXP572634M base controllers are the most common host units for this module; if the controller itself is approaching end-of-life, a coordinated replacement of both the base unit and I/O modules eliminates the risk of cascading failures. Power supply integrity is equally critical — the TSXPSY2600M 26W power supply module should be inspected and replaced if it shows signs of output ripple or thermal stress, as an unstable rail voltage directly affects relay coil actuation reliability.

For facilities migrating from older wiring practices, the TSXCDP053 programming cable remains the standard interface between a PC running PL7 Pro and the TSX Micro terminal port, enabling engineers to back up the existing program before any hardware swap. If your site is transitioning toward Modbus TCP or Ethernet-based SCADA integration, the TSXETY110WS Ethernet communication module can be added to the TSX Micro rack alongside the TSXDMZ28DR, providing network visibility without replacing the entire controller platform.

In applications where the TSXDMZ28DR drives inductive loads such as motor contactors or solenoid valves, installing RC snubber circuits or surge suppressors across relay contacts extends contact life and reduces EMI interference within the control cabinet. For high-density I/O requirements beyond the 28-point capacity, the TSXDMZ28DTK transistor variant can be deployed in parallel expansion slots to add fast-switching digital outputs while the TSXDMZ28DR handles relay-isolated circuits. Signal isolation between field devices and the PLC backplane can be further reinforced using TSXSCP114 or equivalent signal conditioners, particularly in environments with long cable runs or high electrical noise from variable frequency drives.

HMI continuity is another consideration during TSX Micro upgrades. The XBTGT2330 Magelis HMI panel communicates natively with TSX Micro via Uni-Telway or Modbus serial, and its configuration can typically be preserved without modification when only the I/O module is replaced. For sites planning a longer-term migration toward the Modicon M221 or M241 platform, the TSXDMZ28DR can serve as a bridging solution, maintaining production while the new control architecture is engineered and validated offline.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the TSXDMZ28DR?
Yes. The TSXDMZ28DR uses a removable screw terminal block. Disconnect the terminal block from the old module, verify terminal labeling against your wiring diagram, and reconnect to the new module. No rewiring is required if the replacement is the same relay variant.

Q: Do I need to modify my PL7 Pro program after replacing the module?
No. The TSXDMZ28DR is a direct hardware replacement. The I/O addresses assigned in PL7 Pro or Unity Pro remain valid. Back up your program via the TSXCDP053 cable before the swap as a precaution.

Q: Is the TSXDMZ28DR compatible with both TSXP571634M and TSXP572634M base controllers?
Yes. The module is compatible with all TSX Micro 37-10, 37-21, and 37-22 base controllers. Verify the expansion slot count on your base unit before ordering multiple modules.

Q: What is the difference between TSXDMZ28DR and TSXDMZ28DTK?
The DR suffix denotes relay outputs; the DTK suffix denotes transistor (DC) outputs. They are not interchangeable for output circuits. Inputs are identical. Confirm your field device requirements (AC loads vs. DC loads) before selecting the variant.

Q: Can this module be used in a cabinet with a variable frequency drive nearby?
Yes, with proper shielding and grounding practices. Relay outputs provide inherent galvanic isolation. Ensure cable segregation between power and signal wiring, and consider signal isolators for analog signals in high-noise environments.

Q: What communication protocols does the TSX Micro support with this module installed?
The TSX Micro platform supports Uni-Telway, Modbus RTU (via terminal port), and Ethernet (via optional TSXETY110WS module). The TSXDMZ28DR communicates over the internal backplane bus and does not require separate protocol configuration.

Warranty Assurance

Every TSXDMZ28DR shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including input signal response testing and relay contact continuity checks. Units are packaged in anti-static protective packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund based on your preference. Our technical support team responds to after-sales inquiries within 1 business day. We maintain reserve stock of TSXDMZ28DR and related TSX Micro components to support rapid replacement dispatch, minimizing your exposure to extended downtime.

For bulk procurement, project-based reservations, or expedited shipping requirements, contact our sales team directly. We support EXW Xiamen, FOB Xiamen, and DDP delivery terms for international orders, with export documentation including commercial invoice, packing list, and certificate of origin available upon request.
