Schneider TSXDEY16A4 Replacement/Upgrade Solution for TSX Premium

Product Overview

Schneider TSXDEY16A4 Replacement/Upgrade Solution for TSX Premium: Seamless Migration from Legacy Discrete Input Modules

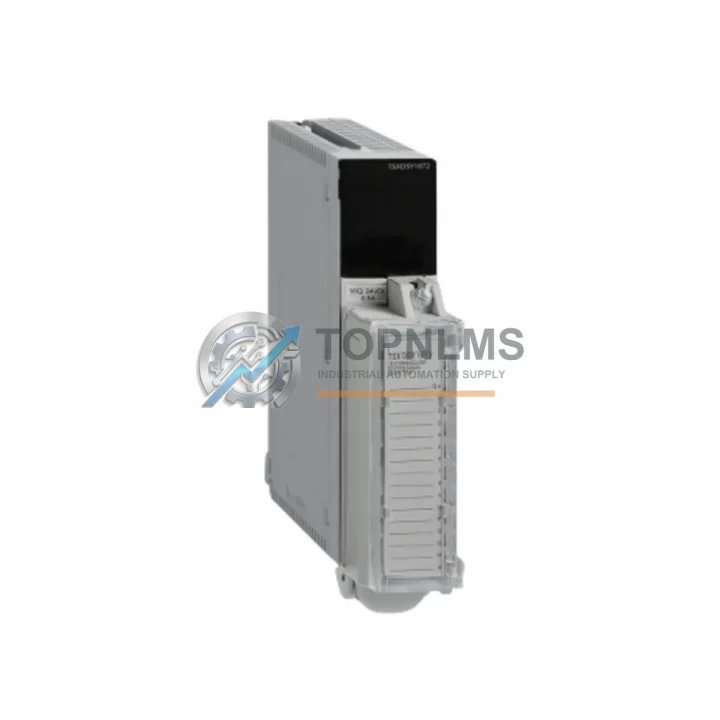

The Schneider Electric TSXDEY16A4 is a 16-channel, 24 VDC discrete input module designed for the TSX Premium PLC platform — one of the most widely deployed mid-range programmable logic controller families in process automation, machine control, and building management systems across Europe, Asia, and the Americas. As Schneider Electric progressively phases out the TSX Premium series in favor of the Modicon M340 and Modicon M580 platforms, many end users and system integrators are now facing the challenge of sourcing reliable replacement units or planning a structured migration path that minimizes downtime and preserves existing wiring infrastructure.

TOPNLMS maintains verified stock of the TSXDEY16A4 to support both direct drop-in replacement and phased upgrade projects. Each unit is pre-shipment tested, ships with a 12-month warranty, and is available for express dispatch from our Xiamen warehouse to destinations worldwide.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TSXDEY16A4 replacement or TSX Premium migration project rarely involves a single module in isolation. In practice, field engineers and procurement teams sourcing the TSXDEY16A4 are typically also managing adjacent components within the same control cabinet or rack assembly. The following components are commonly required alongside the TSXDEY16A4 in replacement and upgrade scenarios:

The TSXPSY2600 and TSXPSY5000 power supply modules are the standard backplane power sources for TSX Premium racks. When replacing a failed input module, it is good practice to verify the power supply’s output capacity, particularly if additional I/O modules have been added to the rack over time. Similarly, the TSXRKY8EX expansion rack and its associated TSXRKY4 or TSXRKY12EX variants may be involved when the migration requires redistributing I/O across multiple racks to accommodate new module layouts.

On the output side, the TSXDSY16T2 16-channel transistor output module and the TSXDSY08R5 relay output module are frequent companions to the TSXDEY16A4 in mixed I/O configurations. Replacing or upgrading discrete input modules without verifying the corresponding output modules can leave the control system in an asymmetric state, particularly in safety-critical interlocking circuits.

For communication-intensive installations, the TSXSCP114 PCMCIA serial communication card and the TSXETY110 Ethernet TCP/IP module are commonly found in the same TSX Premium CPU rack. These modules handle Modbus RTU, Modbus TCP/IP, and Uni-Telway communication to SCADA systems, HMI panels, and remote I/O drops. Ensuring these communication modules remain operational during a discrete I/O swap is essential to maintaining supervisory visibility throughout the maintenance window.

The TSXP57454M and TSXP57554M Premium CPUs are the host processors most commonly paired with the TSXDEY16A4 in large-scale process control installations. If the migration scope extends beyond a single module replacement to a full CPU upgrade, these processors — or their Modicon M340 equivalents such as the BMXP342020 — represent the next logical step in the modernization roadmap. The TSXCDP053 pre-wired HE10 cable assembly is also frequently reused during module swaps, eliminating the need to re-terminate field wiring at the terminal block level.

Retrofit Guidance FAQ

Q: Can I replace the TSXDEY16A4 without modifying field wiring?
A: Yes. The TSXDEY16A4 uses a standard 20-pin HE10 connector. If the existing TSXCDP053 or equivalent pre-wired cable assembly is in good condition, it can be unplugged from the failed module and reconnected to the replacement unit without any re-termination. Sensor wiring at the field junction box is unaffected.

Q: Do I need to update the PLC program after swapping the module?
A: For a like-for-like replacement (same slot, same module type), no software changes are required. The Unity Pro or PL7 Pro project will recognize the module automatically upon power-up. If the slot position changes, the I/O address mapping must be updated in the software configuration and re-downloaded to the CPU.

Q: Is the TSXDEY16A4 compatible with both Unity Pro and PL7 Pro programming environments?
A: Yes. The module is natively supported in Unity Pro (all versions) and PL7 Pro V4.x and later. Legacy PL7 Pro projects can be imported into Unity Pro using the built-in conversion tool, though I/O variable re-mapping is recommended after conversion.

Q: What communication protocols does the TSX Premium backplane support?
A: The TSX Premium internal backplane uses Schneider’s proprietary X-Bus protocol for CPU-to-module communication. This is transparent to the user — modules are addressed by rack number and slot position. External communication (Modbus, Ethernet, Profibus) is handled by dedicated communication modules such as the TSXETY110 or TSXSCP114, which are independent of the discrete I/O modules.

Q: Can the TSXDEY16A4 be installed in any slot of a TSX Premium rack?
A: Yes, with the exception of the CPU slot (slot 0) and any slots reserved for specific function modules (e.g., motion control or safety modules). Standard I/O modules including the TSXDEY16A4 can be freely assigned to any available I/O slot in TSXRKY4, TSXRKY6, TSXRKY8EX, or TSXRKY12EX racks.

Q: What is the physical installation clearance requirement?
A: The TSXDEY16A4 occupies a single module slot in the TSX Premium rack. No additional clearance beyond the standard rack mounting depth is required. Ensure adequate ventilation above and below the rack per Schneider Electric installation guidelines.

Q: How do I verify the module is functioning correctly after installation?
A: After installation and power-up, use Unity Pro’s online diagnostics or the module’s front-panel LED indicators to verify channel status. Each of the 16 input channels has a dedicated green LED that illuminates when the corresponding 24 VDC input signal is active. The module-level RUN LED confirms successful backplane communication with the CPU.

Warranty Assurance

Every TSXDEY16A4 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment testing protocol includes functional verification of all 16 input channels, backplane connector integrity check, and LED indicator validation. Units that do not pass our outgoing quality inspection are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, subject to stock availability. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (GMT+8). We support warranty claims with photographic evidence review and, where required, coordinate with freight carriers for return logistics.

For procurement teams managing critical infrastructure, we recommend requesting a Certificate of Conformance and our standard Outgoing Inspection Report at the time of order. These documents are available at no additional charge and support your internal quality management and asset tracking requirements.

Bulk orders (5 units or more) are eligible for priority allocation from reserved stock, reducing lead time uncertainty for planned maintenance shutdowns or emergency spares programs. Contact our sales team for volume pricing and lead time confirmation.
