Schneider TSXAEZ414 Replacement Solution for TSX Premium

Product Overview

Schneider TSXAEZ414 Replacement Solution for TSX Premium: Smooth Migration & Legacy System Compatibility

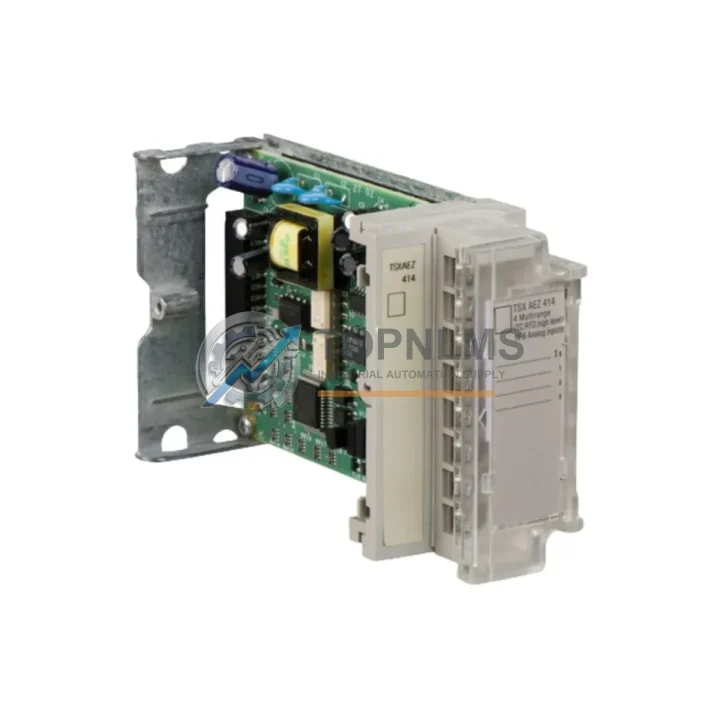

The Schneider Electric TSXAEZ414 is a 4-channel analog input module designed for the TSX Premium PLC platform. As aging TSX Premium installations approach end-of-life or face discontinued spare-part availability, plant engineers and system integrators increasingly require a reliable, drop-in replacement or upgrade path that preserves existing wiring infrastructure, rack geometry, and control logic — without triggering a full system overhaul.

At TOPNLMS, we supply tested, ready-to-ship TSXAEZ414 units sourced from verified industrial channels. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving procurement teams and maintenance engineers the confidence to plan scheduled replacements or respond to unplanned failures with minimal downtime exposure.

Whether you are replacing a failed module in a running production line, building a critical-spare inventory, or executing a phased migration from an older Modicon TSX 7 or TSX Micro platform toward the TSX Premium architecture, the TSXAEZ414 integrates directly into the existing TSX Premium rack (TSXRKY series) without requiring backplane rewiring or software re-engineering of the analog signal conditioning blocks already configured in your Unity Pro or PL7 Pro application.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TSXAEZ414 migration rarely involves a single module swap. In practice, field engineers working on TSX Premium modernization projects encounter a cluster of interdependent components that must be evaluated in parallel to ensure system integrity.

On the power supply side, the TSXPSY2600M or TSXPSY5500M rack power supply modules are commonly assessed during the same maintenance window — adding a 4-channel analog input module increases the backplane current draw marginally, and aging power supplies in long-running installations may already be operating near their rated output. Replacing or verifying the power supply alongside the TSXAEZ414 eliminates a common root cause of intermittent analog signal errors post-installation.

For wiring continuity, the TSXBLY01 front-connector terminal block mates directly with the TSXAEZ414 and allows the existing field wiring harness to be transferred without re-termination — a critical time-saver during a live-line replacement where the maintenance window is measured in hours, not days. If the original terminal block shows signs of corrosion or mechanical wear, a new TSXBLY01 should be included in the replacement kit.

On the communications and network side, many TSX Premium systems use the TSXETY110 or TSXETY410 Ethernet TCP/IP communication modules to expose process data to SCADA systems or MES layers via Modbus TCP. These modules operate independently of the analog I/O subsystem but are frequently reviewed during the same upgrade cycle, particularly when the migration objective includes improving data visibility for the analog signals being acquired by the TSXAEZ414.

For installations that also include discrete I/O expansion, the TSXDEY16D2 16-channel digital input module and TSXDSY16T2 16-channel digital output module are standard companions in mixed I/O racks. Verifying their firmware compatibility with the current CPU module — typically a TSXP574634M or TSXP575634M processor — is recommended before commissioning the upgraded analog module, as Unity Pro I/O object addressing is rack-slot-position dependent.

Where the migration involves transitioning from a legacy Modicon TSX Micro system (such as the TSXMRPC1000 or TSXMRPC1028 all-in-one controllers), a TSXPCX1031 programming cable or USB-to-serial adapter is typically required to back up the existing PL7 Micro application before the new TSX Premium rack is commissioned. Retaining the legacy program as a reference document is standard practice for regulatory compliance in process industries.

Finally, for installations where signal isolation between field instruments and the PLC backplane is a concern — particularly in environments with high electromagnetic interference from variable frequency drives or motor starters — inline signal isolators or signal conditioners (such as those from the Phoenix Contact MINI Analog series or equivalent DIN-rail isolators) are commonly specified alongside the TSXAEZ414 to protect the module inputs and ensure measurement accuracy within the 12-bit resolution specification.

Retrofit Guidance FAQ

Q: Can I replace a failed TSXAEZ414 without modifying my Unity Pro program?
A: Yes, provided the replacement module is installed in the same rack slot position. Unity Pro addresses analog I/O objects by rack number and slot position. A slot-for-slot replacement requires no software changes — only a hardware swap and a cold restart of the CPU to re-initialize the I/O bus.

Q: Is the TSXAEZ414 compatible with both PL7 Pro and Unity Pro programming environments?
A: Yes. The module is supported under both PL7 Pro (for older TSX Premium CPU firmware) and Unity Pro (for current firmware). Verify your CPU model and firmware version to confirm which software version is required for your installation.

Q: What wiring changes are needed when replacing a module from a different TSX Premium analog family?
A: The TSXAEZ414 uses a standard TSX BLY01 front connector. If the failed module used the same connector type, field wiring can be transferred directly. If the connector pinout differs (e.g., replacing a thermocouple input module with a voltage/current input module), re-termination of the field wiring at the front connector is required. Always verify the signal type (voltage vs. current) and configure the input range via software before energizing the field instruments.

Q: Does the TSXAEZ414 support HART protocol for smart field instruments?
A: No. The TSXAEZ414 is a standard analog input module supporting conventional 4–20 mA and voltage signals. For HART-enabled instruments, a dedicated HART multiplexer or a HART-capable analog input module from the TSX Premium or Modicon M340 platform should be specified.

Q: What is the physical installation space requirement?
A: The TSXAEZ414 occupies one standard slot in a TSX Premium rack (TSXRKY4, TSXRKY6, TSXRKY8, or TSXRKY12). No additional DIN-rail space is required. Ensure the rack has at least one free slot adjacent to or near the CPU module for optimal backplane communication performance.

Q: Can this module be used in a hot-standby or redundant TSX Premium configuration?
A: TSX Premium hot-standby configurations (using TSXSCY21601 or similar redundancy modules) support analog I/O modules including the TSXAEZ414, subject to the redundancy architecture constraints defined in the system engineering guide. Consult your system architecture documentation before installing in a redundant rack.

Warranty Assurance

Every TSXAEZ414 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional power-on verification, visual inspection for physical damage, and connector integrity checks. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team responds to warranty inquiries within one business day. For urgent production-line failures, expedited replacement shipping is available upon request.

We maintain buffer stock of high-demand TSX Premium modules to support rapid dispatch. Standard orders ship within 1–3 business days from our Xiamen warehouse. International express shipping (DHL, FedEx, UPS) is available to most destinations with typical transit times of 3–7 business days.

All units are shipped with anti-static packaging, individual serial number documentation, and a packing list suitable for customs clearance. For customers requiring a Certificate of Conformance or test report, please contact us at the time of order.

TOPNLMS is committed to supporting industrial maintenance teams with reliable spare-part supply, transparent sourcing, and responsive after-sales service — because in industrial automation, downtime is never an option.
