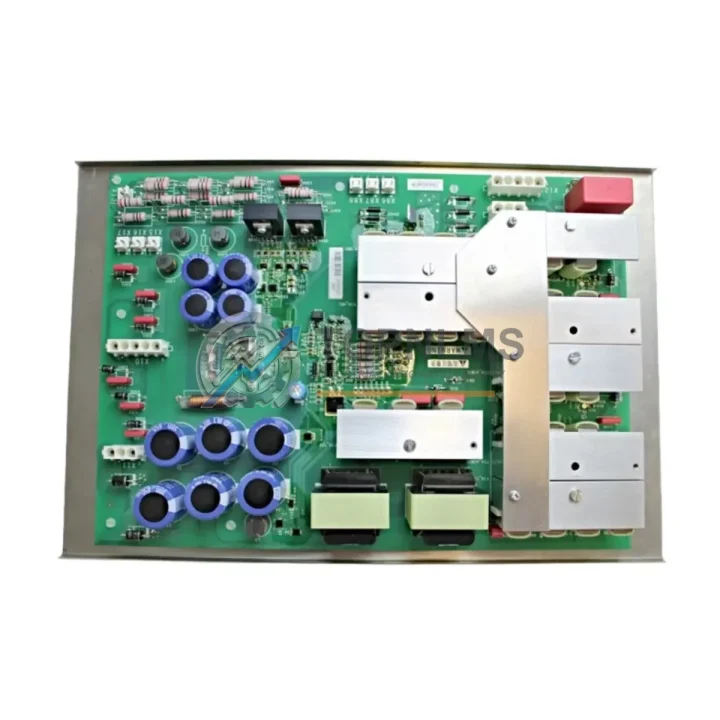

Schneider PN072548P2 Ruggedized Rack Power Board Module

Product Overview

Schneider PN072548P2 Ruggedized Rack Power Board Module: Industrial Resilience for Harsh Environments

The Schneider Electric PN072548P2 is a ruggedized rack power board engineered for the Modicon Quantum PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to deliver stable, conditioned power to the Quantum backplane under extreme operating conditions, the PN072548P2 is a mission-critical component in facilities where downtime is not an option. Whether deployed in oil and gas processing plants, metallurgical furnace control rooms, water treatment SCADA systems, or high-voltage electrical substations, this power board sustains reliable operation across the full Modicon Quantum rack assembly.

Industrial environments impose relentless stress on control hardware. Ambient temperatures fluctuate from sub-zero cold starts to sustained high-heat operation near furnaces and compressors. Humidity levels in coastal chemical plants and offshore platforms regularly exceed 90% RH. Fine conductive dust from mining conveyors and cement grinding mills infiltrates enclosures. Mechanical vibration from heavy presses, pumps, and rotating machinery induces micro-fractures in solder joints over time. The PN072548P2 is built to withstand all of these conditions simultaneously, maintaining regulated DC output to the Quantum rack’s CPU modules, I/O modules, and communication modules without interruption.

Electromagnetic interference is a persistent threat in industrial environments where large variable-frequency drives, high-current motor starters, and arc welding equipment operate in close proximity to control panels. The PN072548P2 incorporates internal filtering and shielding consistent with Schneider Electric’s Modicon Quantum platform design standards, ensuring that EMI-induced voltage spikes do not propagate into the backplane and corrupt the logic execution of the 140CPU series processors or the analog signal integrity of 140ACI and 140AVO I/O modules.

Rugged Specifications Table

Comprehensive Protection Solutions

The PN072548P2 does not operate in isolation — it is the power foundation upon which an entire Modicon Quantum control system depends. In a typical Quantum rack assembly, the power board supplies conditioned voltage to the 140CPU67160 or 140CPU65150 processor modules, which execute the ladder logic and function block programs governing the process. Alongside the CPU, discrete and analog I/O modules such as the 140DDI35300 digital input module and 140ACI04000 analog current input module draw their operating power directly from the backplane bus maintained by the PN072548P2.

In distributed architectures, the Quantum rack communicates with remote I/O drops via the 140CRP93200 RIO head adapter or Ethernet-based 140NOE77101 network option module. Both communication modules rely on stable backplane power to maintain deterministic scan cycles and prevent spurious network timeouts that could trigger safety shutdowns. When the PN072548P2 maintains clean, regulated power, these communication modules sustain uninterrupted Modbus Plus or Ethernet/IP traffic across the plant network.

For safety-critical applications, the Quantum platform integrates with Preventa XPSMC series safety relay modules and external safety PLCs. The power board’s ability to hold output voltage within specification during input transients — such as those caused by large motor starts on the same distribution panel — prevents nuisance trips in these safety circuits. Similarly, in control cabinets where Schneider Electric Altivar 71 or Altivar 312 variable-frequency drives share the same enclosure, the PN072548P2’s EMI filtering prevents drive-generated harmonics from destabilizing the Quantum rack’s logic execution.

Terminal blocks and marshalling components such as the TSXCAP030 cable assembly and 140XTS00200 extension cable are frequently used alongside the Quantum rack in field panel installations. Ensuring the power board is genuine and fully functional protects the integrity of every downstream component in the control loop, from field transmitters through to the HMI SCADA workstation.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the Modicon Quantum platform with PN072548P2 power boards controls wellhead safety shutdown systems, pipeline compressor stations, and gas processing separators. The power board’s wide-range AC input accommodates the voltage fluctuations common in remote generator-powered installations, while its thermal design sustains operation in desert environments where ambient temperatures inside non-air-conditioned equipment shelters can exceed 50°C.

In mining and mineral processing, Quantum racks equipped with PN072548P2 power boards manage conveyor belt interlocking, crusher sequencing, and flotation cell control. The vibration and shock loads generated by blasting operations and heavy mobile equipment are absorbed by the module’s robust mechanical design, preventing the intermittent power interruptions that would otherwise cause unplanned process stops and ore spillage.

In power generation and electrical substations, the PN072548P2 supports Quantum-based protection relay coordination and transformer tap-changer control. The module’s EMI immunity is particularly valuable in high-voltage switchyards where electromagnetic fields from bus bars and disconnectors can induce interference in nearby control equipment.

In water and wastewater treatment plants, Quantum systems with PN072548P2 power boards control pump stations, chlorination dosing, and filtration backwash cycles. The module’s humidity tolerance ensures reliable operation in wet pump rooms and outdoor kiosks where condensation is a constant risk.

In metallurgical and steel production facilities, the power board sustains Quantum rack operation adjacent to electric arc furnaces and rolling mills, where thermal radiation, vibration, and electromagnetic interference are simultaneously present at extreme levels.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the PN072548P2?
All PN072548P2 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal industrial operating conditions. Each unit undergoes pre-shipment functional testing including power-on verification, output voltage measurement, and visual inspection for physical damage. A test report is available upon request.

Q2: Is the PN072548P2 compatible with all Modicon Quantum rack configurations?
Yes. The PN072548P2 is designed for the Modicon Quantum 140-series rack platform and is compatible with standard Quantum backplanes including the 140XBP01600, 140XBP00600, and 140XBP00400 series. It is interchangeable with other Quantum rack power supplies of equivalent specification. If you require compatibility confirmation for a specific rack or system configuration, contact our technical team before ordering.

Q3: How does TOPNLMS ensure the authenticity and quality of Schneider Electric components?
TOPNLMS sources industrial automation components through established supply channels and conducts incoming inspection on all stock. Each PN072548P2 unit is verified against Schneider Electric’s published part markings, label formats, and physical specifications before being accepted into inventory. We do not supply counterfeit, refurbished-as-new, or untested components. Our quality control process includes visual inspection, dimensional verification, and functional power-on testing.

Q4: What is the lead time and shipping arrangement for the PN072548P2?
In-stock units ship within 1–3 business days from our Xiamen, China facility. We support international express shipping via DHL, FedEx, and UPS to most industrial regions globally, including Southeast Asia, the Middle East, Europe, and the Americas. For urgent plant maintenance requirements, expedited same-day dispatch is available upon request. Long-term supply agreements and scheduled delivery programs are available for MRO procurement teams managing ongoing Modicon Quantum fleet maintenance.
