Schneider Electric BMXCPS4002 Ruggedized AC Power Supply Module

Product Overview

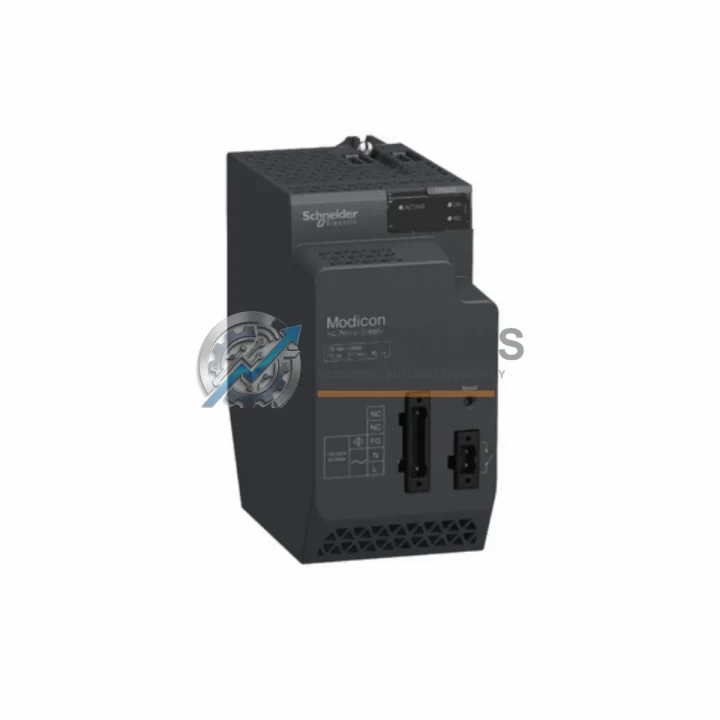

Schneider Electric BMXCPS4002 Ruggedized AC Power Supply Module for Harsh Industrial Environments

The Schneider Electric BMXCPS4002 is a high-reliability AC power supply module engineered for the Modicon M340 PLC rack platform — one of the most widely deployed mid-range programmable logic controller architectures in global industrial automation. Designed to deliver stable, conditioned DC power to the M340 backplane under demanding real-world conditions, the BMXCPS4002 is the backbone of control system uptime in environments where power quality, thermal stress, and electromagnetic interference are constant operational challenges.

In continuous production lines, petrochemical plants, water treatment facilities, and heavy manufacturing sites, power supply integrity is not optional — it is the foundation of every safe and productive operation. The BMXCPS4002 is built to meet that standard, providing consistent 24 VDC bus power to the M340 rack while tolerating wide AC input voltage fluctuations, high ambient temperatures, and the vibration profiles common to rotating machinery environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The BMXCPS4002 does not operate in isolation — it is the power foundation for an entire ecosystem of Modicon M340 components. When installed in a BMX XBP 0800 or BMX XBP 1200 backplane rack, it supplies conditioned power to CPU modules such as the BMXP342020 and BMXP342030, ensuring that the processor core maintains deterministic scan cycles even during AC line transients. Alongside the CPU, discrete and analog I/O modules — including the BMXDDI1602 digital input module and BMXAMI0810 analog input module — depend on the BMXCPS4002’s stable bus voltage for accurate signal acquisition.

In control cabinets where the M340 rack shares enclosure space with Schneider Electric Altivar ATV320 or ATV630 variable frequency drives, the BMXCPS4002’s built-in EMI filtering prevents drive-generated switching noise from corrupting the PLC backplane. Communication modules such as the BMXNOE0100 Ethernet network module and BMXNRP0200 fiber optic repeater module also rely on clean, regulated power to maintain deterministic Modbus TCP/IP and EtherNet/IP communications across the plant network.

For safety-critical applications, the BMXCPS4002 is commonly deployed alongside Schneider Electric Preventa XPSMC safety relay modules and BMXSAI0410 safety analog input modules, where power supply stability directly impacts SIL-rated safety function response times. Terminal block assemblies — including BMXFTB2000 screw-type terminal modules — complete the field wiring interface, and their reliable operation depends on the consistent backplane voltage that the BMXCPS4002 delivers.

Application in Critical Infrastructure

The BMXCPS4002 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream operations, M340-based control systems powered by the BMXCPS4002 manage wellhead pressure monitoring, pipeline SCADA interfaces, and compressor station automation — environments where ambient temperatures can exceed 50°C and vibration from rotating equipment is continuous. The module’s wide AC input tolerance ensures uninterrupted operation even when generator-supplied power fluctuates during field operations.

In mining and mineral processing, the BMXCPS4002 powers M340 PLCs controlling conveyor belt drives, crusher sequencing, and ore slurry pump stations. Dust ingress, mechanical shock, and high-humidity conditions in underground and open-pit environments are mitigated by proper IP20-rated panel enclosures, while the module’s thermal design handles the elevated ambient temperatures common in deep-level mining operations.

Municipal and industrial water treatment and wastewater management facilities rely on M340 systems for dosing pump control, aeration basin management, and SCADA integration. The BMXCPS4002’s stable power output ensures that analog sensor signals from pH, turbidity, and flow transmitters are processed without noise-induced errors. In power generation and electrical substation applications, the module supports M340 PLCs managing transformer protection relay interfaces, switchgear control, and load-shedding automation — where power supply reliability is a direct safety requirement.

Steel mills, aluminum smelters, and heavy metallurgical plants present some of the harshest electromagnetic environments in industry, with large motor drives, arc furnaces, and induction heating systems generating intense EMI. The BMXCPS4002’s compliance with IEC 61000 EMC standards makes it a proven choice for M340 installations in these environments, where control system availability directly determines production throughput and worker safety.

Security & Quality FAQ

Q1: What warranty coverage does the BMXCPS4002 carry when purchased from TOPNLMS?
Every BMXCPS4002 unit shipped by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty process includes direct technical support, failure analysis, and replacement dispatch — no third-party intermediaries. Warranty claims are handled within 5 business days of confirmed fault diagnosis.

Q2: How is each unit tested before shipment?
All BMXCPS4002 modules undergo a pre-shipment functional verification process that includes AC input energization across the full rated voltage range (100–240 VAC), output voltage stability measurement under load, and visual inspection for physical integrity. Units that do not meet Schneider Electric’s published output specifications are quarantined and not dispatched. A test report is available upon request for critical infrastructure procurement.

Q3: Is the BMXCPS4002 compatible with all Modicon M340 rack configurations?
Yes. The BMXCPS4002 is compatible with all standard Modicon M340 BMX XBP backplane racks, including the 4-slot (BMX XBP 0400), 6-slot (BMX XBP 0600), 8-slot (BMX XBP 0800), and 12-slot (BMX XBP 1200) configurations. It is not compatible with Modicon M580, Quantum, or Premium rack platforms — please verify your rack reference before ordering. Our technical team is available to confirm compatibility for your specific system architecture.

Q4: Can TOPNLMS support long-term or repeat procurement of the BMXCPS4002?
Yes. TOPNLMS maintains dedicated stock of high-demand Modicon M340 components, including the BMXCPS4002, to support planned maintenance schedules, emergency spare parts programs, and MRO procurement contracts. We offer volume pricing for multi-unit orders and can provide lead-time commitments for scheduled deliveries. For long-term supply agreements or approved vendor qualification, contact our sales team directly.
