Schneider LUFP7 ABC-PDP-SE Replacement for Altivar

Product Overview

Schneider LUFP7 ABC-PDP-SE Replacement for Altivar: Seamless Profibus DP Migration

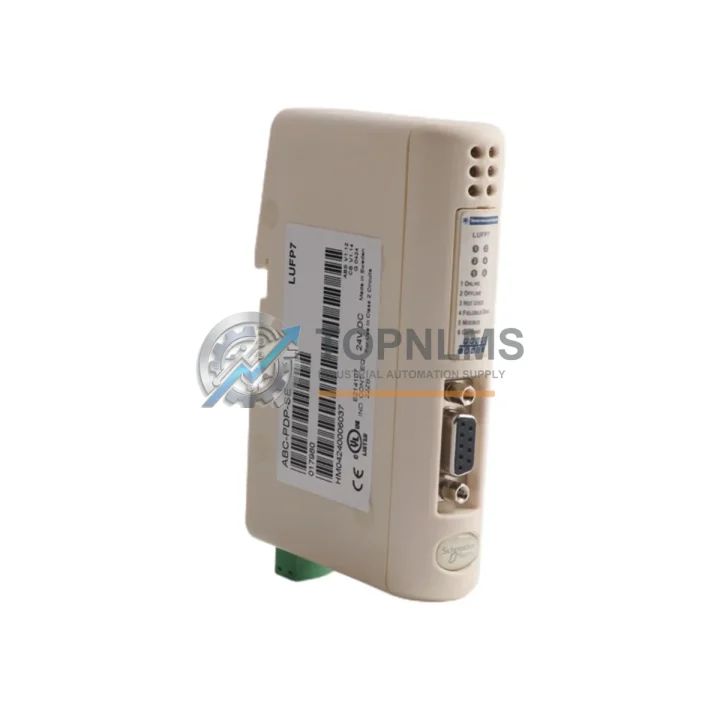

The Schneider Electric LUFP7 ABC-PDP-SE is a Profibus DP slave communication module engineered for the Altivar drive series, including the ATV31, ATV58, ATV71, and ATV312 variable frequency drives. As legacy Altivar systems age and original LUFP7 units reach end-of-life or become increasingly difficult to source, plant engineers and system integrators face mounting pressure to maintain Profibus DP network integrity without triggering a full drive replacement cycle. TOPNLMS stocks verified replacement and upgrade units of the LUFP7 ABC-PDP-SE to support exactly this migration scenario — enabling a controlled, low-risk transition that preserves your existing wiring infrastructure, PLC program logic, and control cabinet layout.

The LUFP7 ABC-PDP-SE plugs directly into the communication option slot on compatible Altivar drives, establishing a Profibus DP slave node at up to 12 Mbit/s. It supports standard GSD file-based configuration, allowing your Siemens S7-300, S7-400, or S7-1500 PLC — or any Profibus DP master — to recognize the drive without reprogramming the master station. The module handles cyclic process data exchange (speed reference, output frequency, motor current, fault status) and acyclic parameter access via DPV1, making it fully compatible with existing STEP 7 or TIA Portal drive function blocks that were originally written for the legacy LUFP7 unit.

When migrating from a failed or discontinued LUFP7, the physical replacement procedure is straightforward: power down the Altivar drive, remove the faulty option card from the drive’s option slot, seat the replacement LUFP7 ABC-PDP-SE, restore power, and verify the Profibus node address via the drive’s HMI keypad or the VW3A1101 remote display. No re-termination of the Profibus cable is required if the existing DB9 connector and bus termination resistors are intact. The module draws its operating power directly from the drive’s internal 5 V bus, eliminating the need for an external power supply or additional wiring in the control cabinet.

For sites running mixed Altivar generations — for example, a combination of ATV71 and ATV312 drives on the same Profibus segment — the LUFP7 ABC-PDP-SE provides a consistent communication interface across both platforms, simplifying the GSD file management in your PLC project. Engineers who have previously used the LUFP9 (CANopen option) or LUFP8 (DeviceNet option) on other drives in the same cabinet will find the LUFP7’s Profibus implementation follows the same Schneider Altivar option card architecture, reducing the learning curve for commissioning technicians.

In retrofit projects where the Altivar drive itself is also being upgraded — for instance, replacing an end-of-life ATV58 with a current-generation ATV320 or ATV340 — the LUFP7 ABC-PDP-SE can serve as a bridging solution during the transition period, keeping the legacy Profibus master online while the new drive is commissioned in parallel. Once the ATV320 is configured with its own integrated Profibus DP port (available on select ATV320 variants), the LUFP7 can be redeployed as a hot spare or used on another drive in the network. This staged approach minimizes production downtime and avoids the need to modify the PLC program or the Profibus network topology during the cutover window.

Procurement teams should note that the LUFP7 ABC-PDP-SE is classified under HS Code 8537.10 (boards, panels, and consoles for electric control) for customs purposes. Units shipped from our Xiamen warehouse are inspected against Schneider Electric’s original factory test criteria before dispatch, and each unit is accompanied by a test report. Standard lead time is 1–3 business days for in-stock units, with DHL Express, FedEx International Priority, and sea freight options available depending on destination and urgency.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful LUFP7 ABC-PDP-SE migration rarely involves the communication module alone. In most Altivar retrofit projects, the following components are evaluated or replaced in parallel to ensure system-wide reliability after the cutover.

The VW3A1101 remote display and parameter backup unit is the most commonly co-ordered accessory: it allows technicians to clone the parameter set from the old drive before removal and restore it to the replacement unit in minutes, eliminating manual re-entry of dozens of motor control parameters. On sites where the Altivar drives are mounted inside sealed control cabinets, the VW3A1104 door-mount remote keypad provides operator access without opening the enclosure during commissioning.

For the Profibus segment itself, a Profibus DP bus termination connector (active termination, DB9 format) should be verified at both ends of the cable run. Degraded termination is a common root cause of intermittent communication faults that are often misdiagnosed as option card failures. Similarly, if the existing Profibus cable shows signs of insulation aging or impedance drift — particularly on installations older than ten years — replacing the segment cable with a new Profibus DP Type A cable (violet, 150 Ω characteristic impedance) during the same maintenance window avoids a repeat outage.

On the PLC side, sites running a Siemens CP 342-5 or CP 443-5 Profibus DP master module in an S7-300 or S7-400 rack should confirm that the GSD file for the LUFP7 is correctly imported into the hardware configuration. For newer installations using a Siemens S7-1500 with CM 1542-5, the same GSD-based approach applies under TIA Portal’s device catalog. No changes to the cyclic data mapping are required if the replacement LUFP7 unit is configured to the same node address as the original.

Where the Altivar drive’s internal 24 V control power supply is shared with other field devices — such as safety relays, Schneider Preventa XPS safety modules, or proximity sensors — it is good practice to verify the 24 V rail loading after the replacement, as a faulty original LUFP7 can sometimes cause marginal voltage drops that mask underlying PSU degradation. A Phaseo ABL8 24 VDC power supply replacement may be warranted if rail voltage is found to be below specification during commissioning.

Finally, for sites planning a longer-term migration from the ATV71 platform to the current ATV340 or ATV630 series, the LUFP7 ABC-PDP-SE replacement provides an immediate operational fix while the broader upgrade project is scoped and budgeted — a pragmatic approach that keeps production running without committing to a full drive changeout on an emergency timeline.

Retrofit Guidance FAQ

Q: Do I need to modify my PLC program after replacing the LUFP7?
No. The replacement LUFP7 ABC-PDP-SE uses the same GSD file and the same cyclic data structure as the original unit. Set the node address to match the original, and the Profibus master will recognize the drive without any changes to the PLC project or function block parameters.

Q: Is rewiring the Profibus cable required?
No. The DB9 connector pinout is identical to the original LUFP7. Disconnect the existing Profibus cable from the old module, connect it to the replacement unit, and verify bus termination at both ends of the segment.

Q: Will the replacement module fit in the same option slot?
Yes. The LUFP7 ABC-PDP-SE uses the standard Altivar option card form factor. It seats into the same slot on ATV31, ATV58, ATV71, and ATV312 drives without any mechanical modification to the drive or the control cabinet.

Q: How do I restore the drive parameters after replacement?
If a VW3A1101 parameter backup was taken before the original module failed, restore it via the remote display. If no backup exists, the drive parameters must be re-entered manually from the commissioning record or the original engineering documentation. TOPNLMS recommends always maintaining a parameter backup file for each drive in the installation.

Q: Can the LUFP7 ABC-PDP-SE operate on a Profibus PA segment?
No. The LUFP7 is a Profibus DP module only. Profibus PA requires a separate DP/PA coupler and is not supported by this option card.

Q: What baud rates are supported?
The LUFP7 ABC-PDP-SE supports all standard Profibus DP baud rates from 9.6 kbit/s up to 12 Mbit/s. The baud rate is detected automatically from the master — no manual configuration is required on the module.

Q: Is the module compatible with DPV1 acyclic services?
Yes. The LUFP7 ABC-PDP-SE supports DPV1 acyclic read/write services, enabling parameter access from the Profibus master without interrupting cyclic process data exchange.

Warranty Assurance

Every LUFP7 ABC-PDP-SE unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection that verifies Profibus DP communication initialization, option slot connector integrity, and LED status indicator operation. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of receiving the returned defective module and confirming the fault. Return shipping costs for warranty claims are covered by TOPNLMS for orders above USD 200. For urgent production situations, an advance replacement can be arranged subject to stock availability — contact our sales team to discuss the options.

Our after-sales team is available Monday through Saturday, 09:00–18:00 CST, to assist with commissioning questions, compatibility verification, and warranty processing. We maintain stock of the LUFP7 ABC-PDP-SE and related Altivar option modules to support rapid response for unplanned outages.

For volume procurement, OEM integrators, and MRO stocking programs, TOPNLMS offers tiered pricing and consignment stock arrangements. Contact us with your annual volume estimate and preferred delivery schedule to receive a tailored quotation.
