Schneider TSXETG3000 Ruggedized Ethernet Module for Harsh Environments

Product Overview

Schneider TSXETG3000 Ruggedized Ethernet Module for Harsh Environments

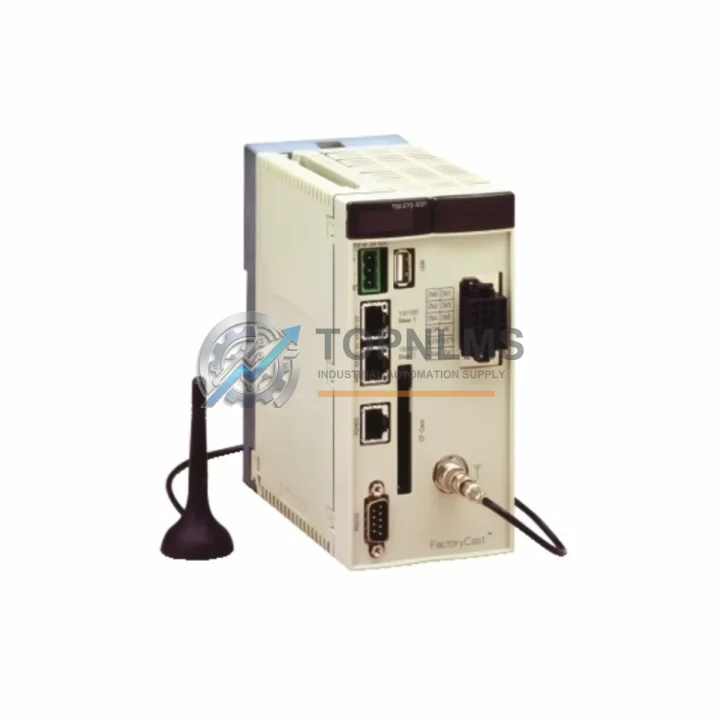

The Schneider Electric TSXETG3000 is a high-performance Ethernet TCP/IP communication module engineered for the Modicon Premium PLC platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — the TSXETG3000 delivers uninterrupted network connectivity where standard commercial hardware would fail. Its ruggedized construction, wide operating temperature tolerance, and robust EMI shielding make it a trusted backbone component for mission-critical automation architectures across oil & gas, power generation, water treatment, metallurgy, and continuous process industries.

Built on Schneider Electric’s proven Modicon Premium architecture, the TSXETG3000 integrates seamlessly into control cabinets alongside the TSX P57 CPU series, enabling transparent Ethernet communication between field devices, SCADA systems, and enterprise-level MES platforms. Its support for Modbus TCP/IP and standard Ethernet protocols ensures broad interoperability with third-party devices, reducing integration risk in brownfield upgrades and greenfield installations alike.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the TSXETG3000 rarely operates in isolation. It functions as the network gateway that binds together an entire ecosystem of automation hardware. Within a Modicon Premium rack, it works in concert with the TSX P57 CPU module, which handles real-time ladder logic and function block execution, while the TSXETG3000 manages all Ethernet-layer communications — offloading network overhead from the CPU and ensuring deterministic scan cycle performance even under heavy network traffic.

On the I/O side, the TSXETG3000 enables remote I/O expansion via Ethernet-connected distributed racks, allowing TSX DEY and TSX DSY digital I/O modules to be deployed across large plant floors without running dedicated fieldbus cabling. For analog process control, it supports transparent data exchange with TSX AEY analog input modules monitoring temperature, pressure, and flow sensors in real time. In drive control applications, the module provides the Ethernet backbone through which Schneider Electric Altivar ATV61 and ATV71 variable frequency drives receive speed references and report fault diagnostics — critical for motor protection in pump stations, compressor halls, and conveyor systems.

Power integrity is equally important in harsh environments. The TSXETG3000 is typically installed in control cabinets powered by Schneider Electric Phaseo ABL8 series industrial power supplies, which provide stable 24 VDC rail power to relay output modules, safety relays, and terminal modules within the same enclosure. Surge protection devices and EMI filters installed upstream of the power supply further shield the TSXETG3000 from voltage transients common in heavy industrial sites. For safety-critical zones, the module integrates with Preventa XPSMC safety controllers via Ethernet-based safety communication, enabling machine guarding, emergency stop monitoring, and safety-rated zone control without dedicated safety fieldbus wiring.

Communication redundancy is addressed through pairing the TSXETG3000 with Schneider Electric ConneXium managed industrial Ethernet switches, which provide RSTP-based ring topology for network fault tolerance. In facilities running Profibus DP alongside Ethernet, the TSXETG3000 coexists with TSX PBY100 Profibus master modules in the same Premium rack, enabling hybrid communication architectures that bridge legacy fieldbus devices with modern Ethernet-based SCADA and historian systems.

Application in Critical Infrastructure

The TSXETG3000 has established a strong track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it serves as the Ethernet communication backbone for wellhead automation panels and pipeline SCADA systems, where continuous uptime is non-negotiable and module replacement must be executed with minimal process interruption. Its wide operating temperature range accommodates both arctic pipeline monitoring stations and desert gas compression facilities.

In power generation and transmission substations, the TSXETG3000 enables IEC 61850-compatible data exchange between Modicon Premium controllers and substation automation systems, supporting real-time protection relay coordination and energy management. Its EMI immunity is particularly valued in high-voltage switchgear environments where electromagnetic interference from bus bars and transformers can disrupt lesser-grade communication hardware.

In water and wastewater treatment plants, the module controls pump sequencing, chemical dosing, and filtration processes across geographically distributed pump stations, communicating over Ethernet to central SCADA servers. Its resistance to high humidity and condensation — common in wet well environments — ensures reliable operation without the corrosion-related failures that plague standard commercial networking equipment.

In metallurgy and steel production, the TSXETG3000 manages communication between rolling mill PLCs, furnace temperature controllers, and production MES systems, operating continuously in environments with extreme radiant heat, heavy vibration from rolling equipment, and airborne metallic dust. Its robust backplane connection and sealed module housing prevent particulate ingress that could otherwise cause intermittent communication faults on the production line.

In mining operations, the module supports conveyor control systems, crusher automation, and ventilation management in underground and open-pit environments, where shock, vibration, and dust are constant operational realities. Its compatibility with fiber-optic Ethernet media converters allows deployment in electrically noisy environments where copper Ethernet would be susceptible to ground loop interference.

Security & Quality FAQ

Q1: What warranty coverage does the TSXETG3000 come with?
Every TSXETG3000 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification testing including communication link establishment, protocol handshake validation, and visual inspection for physical integrity. Warranty claims are processed promptly with replacement or repair support.

Q2: How is compatibility with my existing Modicon Premium system verified?
The TSXETG3000 is designed exclusively for the Modicon Premium platform and is compatible with all TSX P57 CPU variants. It slots directly into any available rack position on TSX RKY racks and is recognized automatically by Unity Pro / PL7 Pro programming software. If you are upgrading from an older TSXETY110 or TSXETY5103 module, the TSXETG3000 provides a direct functional replacement with enhanced throughput and broader protocol support. Our technical team can assist with configuration file migration upon request.

Q3: Is the module safe for use in hazardous or classified areas?
The TSXETG3000 is rated for installation within IP54 or higher-rated control enclosures, making it suitable for use in Zone 2 / Division 2 classified areas when properly housed. For Zone 1 / Division 1 applications, it must be installed in certified Ex e or Ex d enclosures per IEC 60079 requirements. TOPNLMS can advise on appropriate enclosure selection and installation practices for your specific hazardous area classification.

Q4: What is the long-term supply and replacement support for this module?
TOPNLMS maintains dedicated inventory of Modicon Premium series modules, including the TSXETG3000, to support long-term maintenance and emergency replacement needs. As Schneider Electric has transitioned its current PLC platform to Modicon M340 and M580, the TSXETG3000 is increasingly sourced as a spare part for installed base maintenance. We stock tested, genuine units and can fulfill urgent replacement orders with expedited shipping to minimize production downtime. Contact our team for volume pricing and long-term supply agreements.
