Schneider LC1D18M7C Ruggedized AC Contactor for Harsh Environments

Product Overview

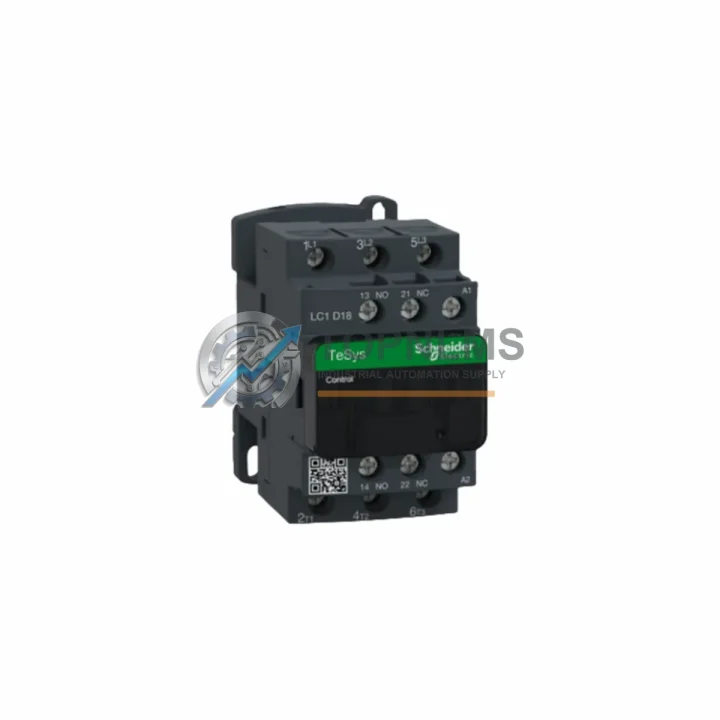

Schneider LC1D18M7C Ruggedized AC Contactor for Harsh Environments

The Schneider Electric LC1D18M7C is an 18A, 3-pole AC contactor from the industry-proven TeSys D series, engineered to deliver uncompromising switching reliability in the most demanding industrial environments. Rated for continuous duty at 18A AC-3 load class, this contactor is designed to withstand high ambient temperatures, elevated humidity, mechanical vibration, airborne particulates, and electromagnetic interference — conditions routinely encountered in oil & gas processing plants, mining operations, steel mills, water treatment facilities, and heavy manufacturing lines.

With a 220V AC coil (M7 designation) and IEC 60947-4-1 compliance, the LC1D18M7C integrates seamlessly into existing TeSys D control architectures. Its compact DIN-rail footprint and standardized terminal layout allow direct replacement of legacy contactors without rewiring, making it the preferred choice for maintenance engineers managing critical uptime on continuous production lines.

In high-vibration environments such as compressor rooms, conveyor drive panels, and pump control stations, the LC1D18M7C’s reinforced contact block and sealed coil assembly maintain consistent pull-in and drop-out characteristics. The silver-alloy contact tips resist welding and erosion even under repetitive inrush currents, extending service intervals and reducing unplanned downtime in facilities where every minute of lost production carries significant cost.

Rugged Specifications Table

Comprehensive Protection Solutions

The LC1D18M7C is rarely deployed in isolation. In a properly engineered motor control center (MCC) or control cabinet, it operates as part of a coordinated protection and switching chain. For motor branch circuit protection, it is typically paired with a GV2ME or GV3ME manual motor starter upstream, providing short-circuit and overload protection in a compact, type-coordinated assembly. Downstream, a LRD21C or LRD22C thermal overload relay clips directly onto the LC1D18M7C’s base without additional wiring, forming a complete motor starter assembly that meets IEC 60947-4-1 Type 2 coordination requirements.

In PLC-controlled systems — particularly those built around Schneider Modicon M221, M241, or M340 PLCs — the LC1D18M7C is driven by discrete output modules such as the TM3DQ16R or TM3DQ16T, which provide the 220V coil switching signal through relay or transistor outputs. For safety-critical applications requiring SIL 2 or PLd compliance, the contactor is often used in conjunction with a Preventa XPSAC or XPSMCM safety relay module, which monitors the auxiliary contact feedback loop to confirm contactor state before permitting machine restart.

Power quality and coil protection are addressed by installing a LA4DA2U RC suppressor across the coil terminals, which eliminates voltage spikes generated during de-energization — a critical measure in cabinets housing sensitive ATV312 or ATV630 variable frequency drives on the same bus. For installations in dusty or humid environments, the control cabinet housing the LC1D18M7C is typically specified with IP54 or IP65 enclosures, and NSYCRN or SPACIAL S3D series enclosures from Schneider Electric provide the appropriate ingress protection. Terminal connections are made via NSYTRV or Linergy TB terminal blocks, ensuring vibration-resistant, torque-controlled terminations that maintain contact integrity over years of thermal cycling.

For distributed I/O architectures, the contactor status feedback is wired back to TM3AI8 analog input modules or TM3DI16 digital input modules, enabling the PLC to monitor contactor health in real time and trigger predictive maintenance alerts before a failure occurs on the production floor.

Application in Critical Infrastructure

In oil and gas upstream operations, the LC1D18M7C controls submersible pump motors and wellhead compressor auxiliaries where ambient temperatures can exceed 50°C and vibration from rotating equipment is constant. Its high mechanical endurance rating ensures reliable operation through thousands of daily switching cycles without contact degradation.

In mining and mineral processing, conveyor belt drives, crusher motor starters, and ventilation fan controls rely on TeSys D contactors for their proven resistance to coal dust, silica particulates, and the high inrush currents associated with heavy-load motor starts. The LC1D18M7C’s silver-alloy contacts handle these inrush events without welding, maintaining safe isolation capability throughout the contactor’s service life.

In municipal water treatment and pumping stations, the LC1D18M7C manages booster pump motors and aeration blower starters in environments with high ambient humidity and corrosive chlorine vapors. Its pollution degree 3 rating and sealed coil construction provide the necessary protection for continuous, unattended operation in these facilities.

In power generation and substation auxiliary systems, the contactor is used in battery charger control panels, cooling fan circuits, and transformer auxiliary equipment — applications where switching reliability directly impacts grid stability and where replacement parts must be immediately available from a trusted supply chain.

In metallurgical and steel production environments, extreme thermal gradients, heavy electromagnetic interference from arc furnaces, and continuous 24/7 operation demand components with proven field reliability. The LC1D18M7C’s IEC-rated performance and Schneider Electric’s global installed base make it the default specification for MCC panels in these facilities.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the LC1D18M7C?
All LC1D18M7C units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. If a unit exhibits any manufacturing defect or fails to perform to published Schneider Electric specifications within the warranty period, we will arrange replacement or full refund. Our warranty process is straightforward — contact [email protected] with your order reference and a brief fault description.

Q2: How is each unit tested before shipment?
Every LC1D18M7C undergoes pre-shipment functional inspection including coil energization verification at rated voltage, auxiliary contact continuity check, and visual inspection for contact condition and mechanical integrity. Units sourced from authorized distribution channels are supplied in original Schneider Electric packaging with full traceability documentation available on request.

Q3: Is the LC1D18M7C compatible with my existing TeSys D installation?
Yes. The LC1D18M7C is fully interchangeable with other TeSys D frame-size contactors in the 9A–18A range and accepts all standard TeSys D accessories including auxiliary contact blocks (LADN series), coil suppressors (LA4DA2U), and mechanical interlocks (LAD9R1). It clips directly onto LRD-series overload relays without adapters, making it a drop-in replacement in existing motor starter assemblies.

Q4: Can TOPNLMS support long-term or repeat procurement for maintenance programs?
Absolutely. TOPNLMS maintains standing inventory of high-demand TeSys D series components to support planned maintenance programs, annual shutdown schedules, and emergency breakdown requirements. We offer priority fulfillment for registered MRO accounts and can provide advance stock reservation for large-volume or project-based orders. Contact our technical sales team at [email protected] or +86 18359293191 to discuss your supply requirements.
