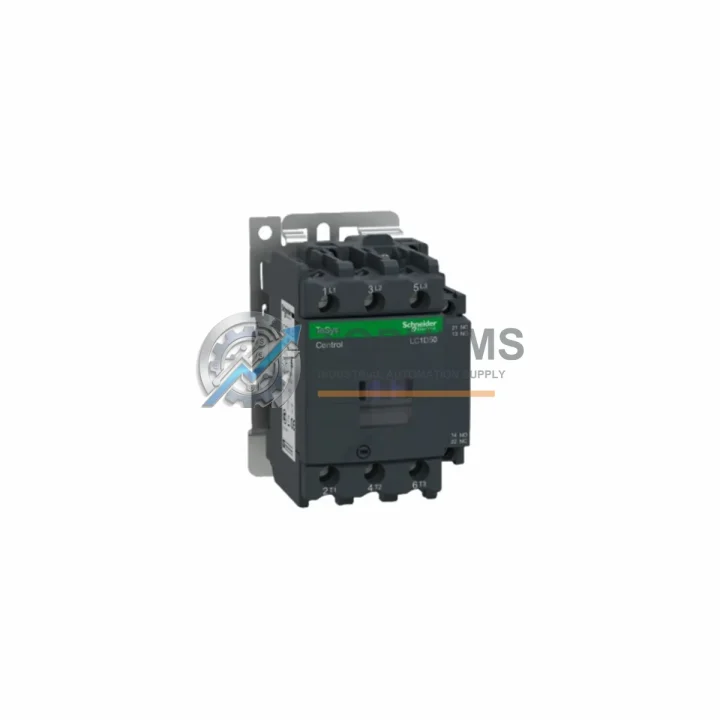

Schneider LC1D50M7C TeSys D 50A 3-Pole Contactor: Industrial Resilience for Harsh Environments

The Schneider Electric LC1D50M7C is a ruggedized 50A, 3-pole AC contactor from the globally trusted TeSys D Series, engineered to deliver uncompromising switching reliability in the most demanding industrial environments. Rated for continuous operation under high ambient temperatures, elevated humidity, mechanical vibration, and intense electromagnetic interference, the LC1D50M7C is the contactor of choice for engineers and procurement teams who cannot afford unplanned downtime.

Designed with a 220V AC coil (M7 designation), this contactor integrates seamlessly into motor control centers, control cabinets, and automation panels across a wide range of heavy industries. Its compact DIN-rail-mountable footprint and standardized terminal layout make it a direct drop-in replacement for aging contactors in both new installations and retrofit projects, minimizing engineering time and field labor costs.

In high-temperature foundry environments and steel mill motor control circuits, the LC1D50M7C maintains stable coil engagement and contact integrity where lesser components fail prematurely. Its silver-alloy contact tips resist welding and erosion under repetitive switching loads, ensuring millions of reliable operations across the service life of the unit. When paired with a LAD4RCU RC suppressor module or a LA4DA2U diode suppressor, coil transient spikes are effectively clamped, protecting adjacent PLC digital output modules and relay modules from voltage-induced damage.

In oil and gas processing facilities, water treatment plants, and mining operations, the LC1D50M7C is routinely deployed in motor starters controlling pumps, compressors, conveyors, and ventilation fans. When combined with a LRD325 TeSys D overload relay (17–25A adjustable), the assembly forms a complete IEC-compliant motor protection starter capable of withstanding the thermal cycling and mechanical shock common to these environments. For applications requiring reversing duty, two LC1D50M7C units can be interlocked with a LAD9R1 mechanical interlock kit, providing a safe and compact reversing starter solution.

The LC1D50M7C is fully compatible with the broader TeSys D ecosystem. Auxiliary contact blocks such as the LADN11 (1NO+1NC) or LADN22 (2NO+2NC) snap directly onto the contactor body without tools, enabling position feedback to Schneider Modicon M340, M580, or Quantum PLC I/O modules. In distributed control architectures, this feedback loop is critical for safety interlock verification and process sequencing logic. The contactor also interfaces cleanly with Schneider Altivar ATV320 and ATV630 variable frequency drives in bypass-contactor configurations, where the LC1D50M7C handles the line-side switching while the drive manages soft-start and speed control.

For panel builders and system integrators working on IEC 60947-4-1 compliant motor control assemblies, the LC1D50M7C carries full CE marking and meets the requirements of UL 508 and CSA C22.2 standards. Its defined short-circuit coordination ratings with GV2ME and GV3ME motor circuit breakers simplify Type 2 coordination panel design, reducing the engineering burden of fault current calculations. In power distribution panels where iC60N or NSX series circuit breakers protect feeder circuits, the LC1D50M7C provides the downstream switching element with proven coordination data.

Procurement teams sourcing replacement contactors for aging TeSys D installations will find the LC1D50M7C fully backward-compatible with earlier TeSys D generation units. The identical mounting footprint, terminal positions, and auxiliary block interface mean zero panel modification is required during scheduled maintenance shutdowns. TOPNLMS maintains verified stock of LC1D50M7C units, each subject to pre-shipment functional testing including coil energization verification, contact resistance measurement, and insulation resistance checks before dispatch.

Rugged Specifications Table

Comprehensive Protection Solutions

The LC1D50M7C is rarely deployed in isolation — it performs at its best as part of a coordinated protection and control architecture. In a typical motor starter assembly, the contactor is paired with a LRD325 thermal overload relay for overcurrent protection, and a GV2ME22 motor circuit breaker for short-circuit protection, forming a fully coordinated Type 2 starter per IEC 60947-4-1. For applications requiring soft-start capability, the LC1D50M7C serves as the bypass contactor in conjunction with an Altivar ATV320U75N4C variable frequency drive, allowing the drive to handle acceleration while the contactor carries full-load current during steady-state operation.

In control cabinet builds, the LC1D50M7C is commonly wired alongside Schneider Modicon TM3DI16 digital input modules and TM3DQ16R relay output modules, with the contactor’s auxiliary contacts providing real-time status feedback to the PLC. Surge suppression is handled by snap-on LAD4RCU RC modules, protecting sensitive 24VDC control circuits and communication modules from coil de-energization transients. For installations in classified hazardous areas requiring remote isolation, the LC1D50M7C is integrated with Schneider Preventa XPSAF safety relay modules that monitor emergency stop circuits and gate the contactor’s control voltage through safety-rated outputs.

Power supply stability in the control cabinet is maintained by Schneider Phaseo ABL8REM24030 24VDC SMPS units, which provide clean, regulated power to the PLC rack, I/O modules, and contactor coil circuits simultaneously. Terminal connections are made via Linergy TR or NSYTRV series terminal blocks, ensuring secure, vibration-resistant wiring in high-shock environments. This complete ecosystem of coordinated components — from circuit breaker to contactor to overload relay to PLC I/O — is what makes the TeSys D platform the preferred choice for industrial panel builders worldwide.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the LC1D50M7C controls electric submersible pump (ESP) motors, gas compressor drives, and wellhead control panel switching. Its resistance to hydrogen sulfide-laden atmospheres (when installed in sealed enclosures) and its high mechanical endurance make it suitable for remote unmanned stations where maintenance intervals are measured in months, not weeks.

In mining operations — underground coal, hard rock, and open-pit — the LC1D50M7C drives conveyor belt motors, ventilation fan starters, and dewatering pump panels. The contactor’s vibration and shock ratings align with the mechanical stress profiles of mobile mining equipment and fixed infrastructure subject to blasting vibration. Its standardized form factor simplifies spare parts management across multi-site mining operations where procurement teams maintain unified BOM lists.

In power generation and transmission substations, the LC1D50M7C is used in auxiliary motor control panels for cooling fans, oil pumps, and transformer tap-changer drives. Its compliance with IEC 60947-4-1 and coordination with NSX-series circuit breakers ensures it meets the stringent protection coordination requirements of utility-grade installations. In water and wastewater treatment plants, the contactor controls submersible pump motors, aeration blowers, and sludge mixer drives in environments characterized by high humidity, chemical vapors, and continuous 24/7 duty cycles.

In metallurgical and steel plants, the LC1D50M7C operates in motor control centers (MCCs) managing rolling mill drives, ladle crane motors, and fume extraction fans. Ambient temperatures in these facilities regularly exceed 45°C, and the LC1D50M7C’s rated operating range to +60°C provides the necessary thermal margin for reliable continuous operation without derating.

Security & Quality FAQ

Q1: What warranty coverage is provided with the LC1D50M7C?
Every LC1D50M7C unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. If a unit exhibits any functional defect within the warranty period under normal operating conditions, we provide replacement or full refund. Our warranty process is straightforward — contact us with your order reference and a brief fault description, and we will arrange resolution within 3 business days.

Q2: How is each unit tested before shipment?
All LC1D50M7C contactors undergo a pre-shipment inspection protocol that includes: coil energization test at rated voltage (220V AC), main contact resistance measurement (target <1mΩ per pole), insulation resistance test between poles and between poles and frame (>10MΩ at 500VDC), and visual inspection for contact wear, housing integrity, and terminal condition. Units that do not pass all checks are quarantined and not shipped.

Q3: Is the LC1D50M7C compatible with my existing TeSys D installation?
Yes. The LC1D50M7C is fully dimensionally and electrically compatible with all TeSys D series contactors in the D40–D65 frame size range. Auxiliary contact blocks (LADN series), overload relays (LRD series), and mechanical interlocks (LAD9R1) from existing TeSys D installations mount directly without modification. If you are replacing an older TeSys D unit with a different coil voltage suffix, please verify the coil designation (M7 = 220V AC) matches your control circuit voltage before installation.

Q4: Can TOPNLMS support long-term and repeat procurement of LC1D50M7C?
Yes. TOPNLMS maintains ongoing stock of LC1D50M7C and related TeSys D components to support MRO (maintenance, repair, and operations) procurement programs. We can provide blanket order arrangements, consignment stock agreements, and priority allocation for customers with high-volume or time-critical requirements. Lead times for standard orders are typically 1–3 business days for in-stock units, with express air freight available for urgent site requirements. Contact our technical sales team to discuss your specific supply continuity needs.
