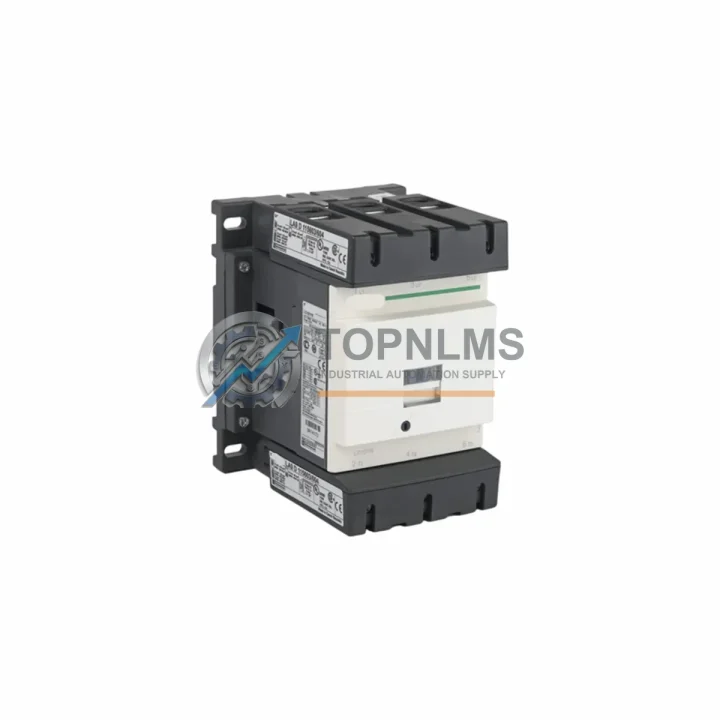

Schneider LC1D170M7C Ruggedized AC Contactor for Harsh Environments

The Schneider Electric LC1D170M7C is a heavy-duty, ruggedized 170A 3-pole AC contactor from the renowned TeSys D series, engineered to deliver uncompromising switching reliability in the most demanding industrial environments. Whether deployed in high-temperature foundries, dust-laden mining galleries, moisture-saturated water treatment plants, or vibration-intensive offshore platforms, the LC1D170M7C maintains consistent electrical performance where lesser components fail. Its robust silver-alloy contact system, reinforced arc-quenching chambers, and thermally stable coil assembly — rated at 220V AC (M7 coil code) — are purpose-built to withstand the cumulative stresses of continuous production cycles without degradation in contact integrity or switching accuracy.

In modern industrial control architectures, the LC1D170M7C serves as a critical power-switching element between the control intelligence layer and the load. It is routinely integrated alongside Schneider Electric TeSys D LC1D series reversing contactors, LRD thermal overload relays, and GV2 motor circuit breakers to form complete motor starter assemblies compliant with IEC 60947-4-1. When paired with a Modicon M340 or M580 PLC output module, the LC1D170M7C responds to discrete control signals with sub-cycle actuation, enabling precise start/stop sequencing for high-inertia loads such as compressors, conveyors, and centrifugal pumps. Its coil suppression circuitry minimizes electromagnetic interference (EMI) feedback into the control bus — a critical consideration when sharing a control cabinet with Altivar ATV630 or ATV930 variable frequency drives, whose sensitive IGBT gate drivers are susceptible to conducted noise transients.

The LC1D170M7C’s IP20-rated enclosure is designed for panel-mount installation inside Prisma or Spacial series control enclosures, where it can be DIN-rail or screw-mounted alongside Acti9 iC60 circuit breakers, Zelio Logic smart relays, and XPSAF safety relay modules. In safety-instrumented systems (SIS), the contactor is frequently used as the final control element in de-energize-to-trip (DTT) loops, where its normally-open (NO) main contacts provide a fail-safe load disconnection path. The 220V coil variant is particularly prevalent in European and Asian industrial installations where 220V AC control voltage is the plant standard, eliminating the need for a dedicated control transformer in many retrofit applications.

For process industries operating under ATEX or IECEx zone classifications — including petrochemical plants, LNG terminals, and grain handling facilities — the LC1D170M7C is typically installed in the safe area control room while switching loads located in the hazardous zone via appropriately rated cable glands and conduit seals. Its low coil power consumption (approximately 7W holding) reduces thermal loading inside sealed enclosures, extending the service life of adjacent components such as XBGT HMI terminals, TSXCSA power supply modules, and Advantys STB distributed I/O islands. In multi-drive systems, the contactor is used for bypass switching, enabling maintenance personnel to isolate an Altivar drive and run the motor direct-on-line without interrupting production — a standard practice in water utilities and HVAC central plant rooms.

Rugged Specifications Table

Comprehensive Protection Solutions

The LC1D170M7C is rarely deployed in isolation. In a fully coordinated motor protection assembly, it works in tandem with the LRD325 thermal overload relay (200–330A range), which clips directly onto the contactor’s base without additional wiring, forming a compact IEC Type 2 coordination starter. For applications requiring reversing duty — such as overhead cranes, rolling mills, or valve actuators — two LC1D170M7C units are interlocked with LAD4RCE mechanical interlock kits to prevent simultaneous energization. Where soft-start capability is required upstream, the contactor serves as the bypass element for Altistart ATS48 soft starters, engaging after the motor reaches full speed to eliminate drive losses during steady-state operation.

In distributed control architectures, the LC1D170M7C receives its switching commands from Modicon M580 ePAC discrete output modules via 24V DC interposing relays or solid-state output cards, maintaining galvanic isolation between the PLC logic bus and the 220V coil circuit. Communication-intensive installations may use TeSys U motor management controllers with Modbus RTU or CANopen interfaces to provide real-time current monitoring, thermal state estimation, and remote trip logging — data that feeds directly into the plant’s SCADA or DCS historian. For cabinet-level power distribution, the contactor is coordinated with Compact NSX160 or NSX250 molded case circuit breakers to achieve short-circuit withstand ratings up to 50kA, satisfying the coordination requirements of IEC 60947-2 for industrial switchgear assemblies.

Application in Critical Infrastructure

In oil and gas upstream facilities, the LC1D170M7C controls submersible pump motors and gas compressor drives in wellhead control panels, where ambient temperatures can exceed 55°C and salt-laden air accelerates contact oxidation in lesser-grade contactors. Its silver-cadmium oxide (AgCdO) or silver-tin oxide (AgSnO₂) contact material — depending on production batch — provides superior arc erosion resistance compared to standard silver contacts, extending maintenance intervals in remote, unmanned installations where downtime costs are measured in thousands of dollars per hour.

In mining and mineral processing, the contactor switches conveyor belt drives, ball mill motors, and slurry pump loads in environments characterized by coal dust, silica particulate, and continuous mechanical vibration. Its reinforced contact spring system maintains consistent contact pressure despite vibration-induced fretting, preventing the intermittent contact resistance increases that can trigger nuisance thermal trips in overload relays. Power generation and grid infrastructure applications include auxiliary motor control centers (MCCs) in thermal power plants, where the LC1D170M7C controls cooling water pumps, forced-draft fans, and fuel oil transfer pumps — loads that must remain available 24/7 with zero tolerance for spurious trips.

In water and wastewater treatment, the contactor is installed in outdoor pump station MCCs exposed to humidity levels approaching 95% RH, where its sealed coil assembly and conformal-coated PCB (where applicable) prevent moisture ingress from causing coil insulation breakdown. Municipal utilities and industrial water recycling plants rely on the TeSys D platform’s long-term spare parts availability — Schneider Electric’s commitment to 10+ years of component availability ensures that a plant designed around the LC1D170M7C today will have access to replacement parts well into the next decade, protecting the capital investment in existing switchgear infrastructure.

Security & Quality FAQ

Q1: What warranty coverage is provided with the LC1D170M7C?
Every LC1D170M7C supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Units are individually inspected and functionally tested — including coil pick-up/drop-out voltage verification and contact resistance measurement — prior to packaging. Warranty claims are processed with replacement shipment or full refund, with no requirement to return the defective unit for low-value claims.

Q2: How do you verify authenticity and compatibility before shipment?
All LC1D170M7C units are sourced from authorized Schneider Electric distribution channels or verified surplus stock with full traceability documentation. Pre-shipment checks include visual inspection of Schneider Electric holographic labels, date code verification, coil resistance measurement, and mechanical operation cycling. Compatibility with your specific application — coil voltage, auxiliary contact configuration, and coordination with existing overload relays — can be confirmed by our technical team before order placement.

Q3: Can the LC1D170M7C replace my existing contactor without rewiring?
The LC1D170M7C is a direct form-fit-function replacement for all TeSys D series 170A contactors with M7 (220V AC) coil designation. It is dimensionally identical to predecessor models and accepts the same LAD auxiliary contact blocks, LAD4RCE interlock kits, and LRD overload relay clip-on attachments. For cross-brand replacement from ABB A145, Siemens 3RT1056, or Eaton DILM150 contactors, our technical team can provide a compatibility assessment and wiring adaptation guidance.

Q4: What are your lead times and long-term supply capabilities?
Stocked units ship within 1–3 business days from our Xiamen warehouse. For project quantities (10+ units), we offer reserved stock agreements with guaranteed delivery scheduling. TOPNLMS maintains a strategic inventory of TeSys D series contactors across multiple ampere ratings, ensuring continuity of supply for ongoing maintenance programs and MRO procurement contracts. Long-term supply agreements with fixed pricing are available for OEM and EPC customers.
