Schneider GV2-ME10C Replacement Solution for TeSys GV2

Product Overview

Schneider GV2-ME10C Replacement Solution for TeSys GV2: Smooth Transition & Legacy System Compatibility

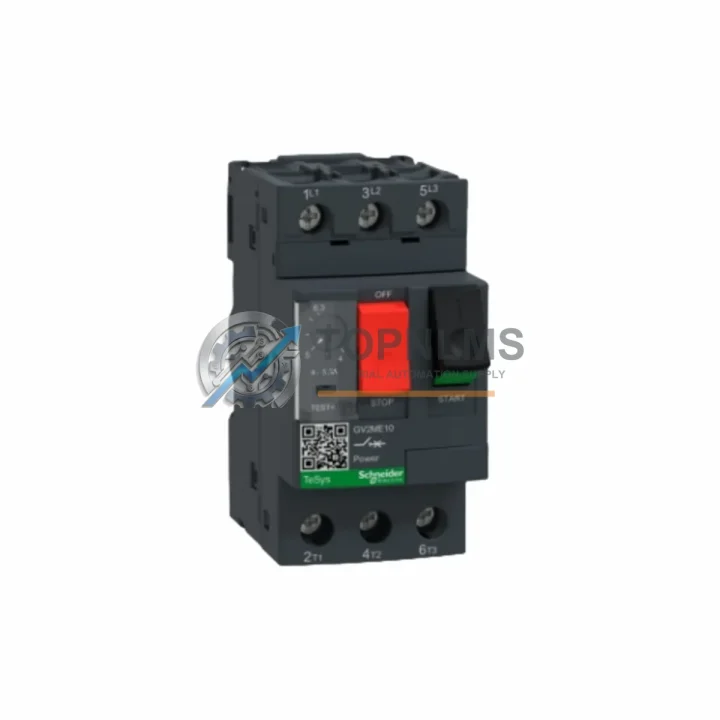

The Schneider Electric GV2-ME10C is a 4–6.3A thermal-magnetic motor circuit breaker from the TeSys GV2 series, designed for direct-on-line motor protection in industrial control panels. Whether you are replacing a failed unit, upgrading an aging motor control center (MCC), or migrating from an obsolete protection relay scheme, the GV2-ME10C offers a proven, plug-compatible solution that minimizes engineering rework and panel downtime.

Industrial facilities running legacy Schneider Electric control architectures — including older TeSys D contactor assemblies, TeSys GV2-ME predecessor variants, or third-party motor starters — frequently encounter the challenge of sourcing a direct replacement that preserves existing wiring, DIN rail footprint, and panel layout. The GV2-ME10C addresses this precisely: its compact 45 mm body, standard 35 mm DIN rail mounting, and screw-clamp terminals accept existing cable cross-sections without re-termination.

For sites migrating from older GV2-M or GV2-P series breakers, the GV2-ME10C maintains the same terminal pitch and mounting hole pattern, allowing a like-for-like swap in most panel configurations. Engineers replacing GV2-ME08C (2.5–4A) or GV2-ME14C (6–10A) units for motor re-rating projects will find the GV2-ME10C fits the same cutout and uses identical auxiliary contact blocks such as the GV2-AN11 and GV2-AN20, preserving existing interlock and signaling wiring.

In distributed I/O and fieldbus-integrated motor control architectures, the GV2-ME10C is commonly deployed alongside TeSys D LC1-D09 or LC1-D12 contactors to form a complete motor starter assembly. These combinations are compatible with TeSys Island and TeSys T motor management relay platforms, enabling seamless integration into Modbus RTU or EtherNet/IP supervisory systems without gateway modifications. Sites using Modicon M340 or Modicon M580 PLCs with existing motor control logic will not require program changes when performing a like-for-like GV2-ME10C replacement, as the device’s electrical interface to the control circuit remains unchanged.

For panel builders and system integrators working on retrofit projects, the GV2-ME10C’s 50 kA rated short-circuit breaking capacity at 400 V AC meets IEC 60947-2 requirements, making it suitable for use in panels fed from standard industrial distribution transformers without additional current-limiting fuses in most applications. When upgrading from older motor protection relays or bimetallic overload relays paired with separate MCBs, consolidating to the GV2-ME10C reduces component count, simplifies wiring, and frees panel space — a critical advantage in densely populated control cabinets.

Procurement teams sourcing GV2-ME10C units for planned maintenance, emergency replacement, or MRO stock will benefit from our pre-shipment functional testing protocol. Each unit undergoes trip-current verification and insulation resistance testing before dispatch. Stock is maintained in Xiamen, China, with standard lead times of 3–7 business days for international express shipments via DHL, FedEx, or UPS, and 1–3 business days for domestic China delivery.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete motor starter retrofit using the GV2-ME10C typically involves several complementary components. The TeSys D LC1-D09 contactor is the standard pairing for motors in the 4–6.3 A range, and its coil voltage variants (24 V DC, 110 V AC, 230 V AC) allow direct reuse of existing control transformer outputs without rewiring. For three-phase motor circuits requiring reversing control, the LC2-D09 reversing contactor assembly integrates directly with the GV2-ME10C without additional mechanical interlock hardware.

Sites upgrading from standalone overload relays will often need to remove the existing LRD-series thermal overload relay from the panel, as the GV2-ME10C incorporates built-in thermal-magnetic protection, eliminating the need for a separate overload device and reducing wiring complexity. For applications requiring remote trip signaling or fault indication back to a Modicon M340 DI module or SCADA system, the GV2-AN11 auxiliary contact block clips directly onto the GV2-ME10C body and provides one N/O and one N/C contact without additional panel space.

In multi-motor control panels, the GV2-ME10C can be busbar-linked using the GV2-G3N3 three-phase busbar connector, enabling a clean, tool-free power distribution arrangement that reduces copper wiring and improves panel maintainability. For panels with limited depth, the GV2-ME10C‘s shallow profile is compatible with standard 200 mm deep enclosures commonly used in retrofit projects where the original cabinet cannot be replaced.

When the migration scope extends to the HMI layer, the GV2-ME10C’s status can be monitored via the TeSys T LTM R motor management relay, which communicates over Modbus RTU and provides current measurement, thermal modeling, and fault logging — a significant upgrade over simple bimetallic protection in critical process applications. For communication-intensive architectures, the TeSys Island distributed motor starter platform accepts GV2-ME series breakers as the protection element within its modular assembly, enabling EtherNet/IP or Modbus TCP integration without panel-level wiring changes.

Retrofit Guidance FAQ

Q: Can I replace a GV2-P10 with a GV2-ME10C without modifying the panel wiring?
A: In most cases, yes. The GV2-ME10C shares the same DIN rail footprint and terminal pitch as the GV2-P series. Verify that existing cable lugs are compatible with the screw-clamp terminals (up to 6 mm² for power terminals). No PLC program changes are required as the electrical interface to the control circuit is identical.

Q: Does the GV2-ME10C support the same auxiliary contact blocks as older GV2 variants?
A: Yes. The GV2-AN11 (1 N/O + 1 N/C) and GV2-AN20 (2 N/O) auxiliary contact blocks are fully compatible and clip onto the GV2-ME10C body without tools. Existing interlock wiring can be reused.

Q: Is the GV2-ME10C compatible with TeSys Island or TeSys T systems?
A: The GV2-ME10C serves as the motor protection element in TeSys Island assemblies. TeSys T motor management relays can monitor motor current and status via Modbus RTU when installed in the same motor starter assembly. No firmware changes are required on the PLC or SCADA side.

Q: What communication protocols are supported in a GV2-ME10C-based motor starter?
A: The GV2-ME10C itself is a purely electromechanical device. Communication capability is added via the TeSys T relay (Modbus RTU, EtherNet/IP) or TeSys Island platform (EtherNet/IP, Modbus TCP). Existing fieldbus configurations do not need to be modified for a like-for-like GV2-ME10C replacement.

Q: What is the physical space requirement for installation?
A: The GV2-ME10C requires 45 mm of DIN rail width and approximately 100 mm of panel depth. It is compatible with standard 200 mm deep enclosures. When paired with the LC1-D09 contactor and GV2-AN11 auxiliary block, the total assembly width is approximately 90 mm.

Q: Can the GV2-ME10C be used in single-phase applications?
A: The GV2-ME10C is rated for three-phase motor protection. Single-phase use is not recommended as the thermal trip mechanism is calibrated for three-phase current balance. Consult Schneider Electric documentation for single-phase motor protection alternatives.

Warranty Assurance

Every GV2-ME10C unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes trip-current functional testing, insulation resistance verification, and visual inspection for mechanical integrity. Units that do not pass inspection are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our after-sales response time is within 24 business hours for warranty inquiries. Replacement units are dispatched from Xiamen stock with priority shipping to minimize your operational downtime.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Country of origin certificates and REACH/RoHS compliance declarations are available upon request. All units are shipped in original manufacturer packaging with intact seals.

Bulk orders for MRO stock programs are supported with volume pricing, reserved inventory allocation, and scheduled release shipments. Contact our sales team to discuss framework agreements for ongoing supply of GV2-ME10C and related TeSys GV2 series components.
