Schneider EOCRSS-05RY7 Ruggedized Overload Relay for Harsh Environments

Product Overview

Schneider EOCRSS-05RY7 Ruggedized Overload Relay for Harsh Environments

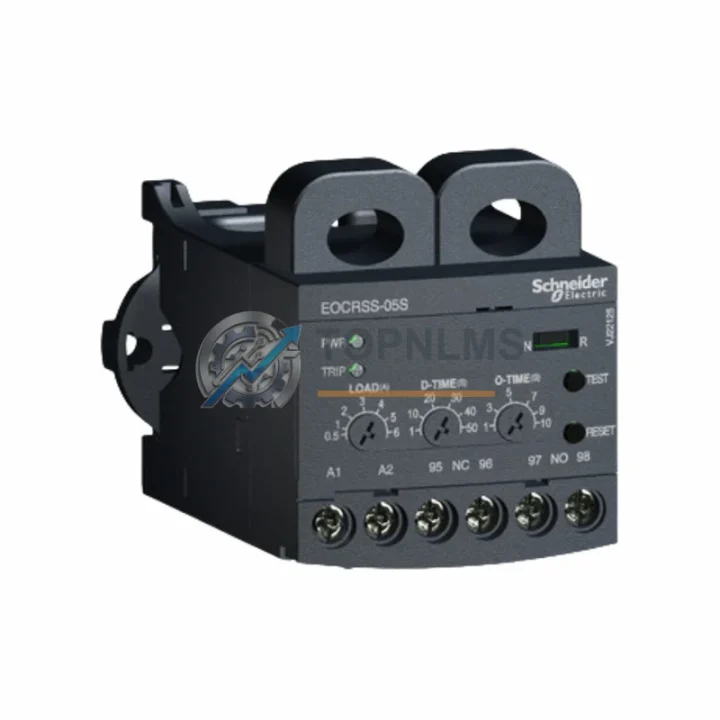

The Schneider Electric EOCRSS-05RY7 is a solid-state electronic overload relay from the proven EOCR-SS series, engineered to deliver uncompromising motor protection in the most demanding industrial environments. Designed for continuous operation under high ambient temperatures, elevated humidity, heavy vibration, airborne particulate contamination, and intense electromagnetic interference, this relay is a cornerstone component for engineers and procurement teams who cannot afford unplanned downtime in critical production systems.

Unlike conventional bimetallic overload relays, the EOCRSS-05RY7 employs solid-state sensing technology to monitor motor current with precision, eliminating mechanical wear and providing consistent trip characteristics regardless of ambient temperature fluctuations. Its compact DIN-rail-compatible form factor integrates seamlessly into standard control cabinets alongside Schneider Electric TeSys contactors, Zelio Logic smart relays, Modicon M221 and M241 PLCs, and Altivar series variable frequency drives — enabling a fully coordinated motor control and protection architecture within a single enclosure.

The relay’s wide current setting range of 0 to 5 A makes it suitable for protecting small to medium-sized three-phase induction motors across a broad spectrum of industrial applications. Its built-in phase-loss detection and phase-imbalance protection functions guard against the most common causes of motor failure in field installations, while the manual and automatic reset options give maintenance teams the flexibility to configure the relay to match their site safety procedures.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated motor control center (MCC) or control cabinet, the EOCRSS-05RY7 operates as part of a layered protection strategy. It is typically wired in series with a Schneider Electric TeSys D or TeSys K contactor, which handles the switching duty, while the EOCR-SS relay continuously monitors the load current and issues a trip signal the moment an overload, phase loss, or phase imbalance condition is detected. This combination is widely deployed alongside Schneider Electric Altivar 312 and Altivar 320 variable frequency drives, where the relay provides a hardware-level safety backstop independent of the drive’s internal protection logic.

For installations requiring programmable control, the EOCRSS-05RY7 integrates naturally with Modicon M221, M241, and M340 PLCs via hardwired I/O connections, allowing the PLC program to log trip events, initiate automatic restart sequences, or trigger alarm outputs on an HMI panel such as the Magelis GTU series. In distributed control architectures, the relay’s output contacts can feed directly into Schneider Electric Advantys STB or Preventa XPS safety modules, ensuring that a motor trip event is captured at both the field device level and the safety layer simultaneously.

Power quality at the cabinet level is maintained by pairing the EOCRSS-05RY7 installation with Schneider Electric Acti9 iC60 circuit breakers and Phaseo ABL8 power supplies, which provide stable, filtered DC control voltage to the relay’s sensing circuitry even in environments with significant harmonic distortion or voltage sag. Terminal connections within the cabinet are typically made through Linergy or Phoenix Contact terminal blocks, ensuring reliable, vibration-resistant wiring that meets IEC 60947 installation standards.

Application in Critical Infrastructure

The EOCRSS-05RY7 is deployed across the full spectrum of heavy and process industries where motor reliability is non-negotiable. In upstream oil and gas facilities, it protects pump motors driving crude transfer and injection systems, where a single undetected overload can result in catastrophic seal failure and unplanned shutdown of an entire production train. Offshore platform operators value the relay’s solid-state design for its immunity to the salt-laden, high-humidity atmosphere that rapidly degrades mechanical relay contacts.

In underground mining operations, the relay is installed in explosion-risk-adjacent control rooms to protect conveyor belt drive motors, ventilation fan motors, and dewatering pump motors. Its phase-loss detection capability is particularly critical in mining environments, where cable damage from heavy equipment can cause single-phasing — a condition that, if undetected, will destroy a motor winding within minutes. The EOCRSS-05RY7’s fast-response solid-state trip circuit detects this condition and isolates the motor before thermal damage occurs.

Power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — rely on the EOCR-SS series to protect auxiliary motor loads such as cooling water pumps, fuel oil transfer pumps, and forced-draft fan motors. Water and wastewater treatment plants deploy the relay on submersible pump motors and aeration blower drives, where continuous 24/7 operation in high-humidity pump stations demands a relay with no mechanical wear components. Metallurgical plants and steel mills use the EOCRSS-05RY7 in rolling mill auxiliary drives and furnace atmosphere circulation fans, where ambient temperatures regularly exceed 50 °C and vibration from heavy machinery is constant.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
All EOCRSS-05RY7 units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. To initiate a claim, contact [email protected] with your order number and a description of the fault. We will arrange inspection, repair, or replacement at no additional cost within the warranty period.

Q2: How is each unit tested before shipment?
Every EOCRSS-05RY7 unit undergoes functional verification prior to dispatch, including current sensing accuracy checks, trip response time validation, and output relay contact continuity testing. Units that do not meet Schneider Electric’s published performance specifications are quarantined and not shipped. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the EOCRSS-05RY7 compatible with my existing Schneider Electric motor control system?
The EOCRSS-05RY7 is designed for direct integration with the Schneider Electric TeSys contactor range and is compatible with standard 35 mm DIN rail enclosures. It operates on 100–240 V AC control voltage, making it suitable for the majority of existing Schneider Electric MCC and control cabinet installations without requiring control transformer modifications. For specific compatibility questions regarding your panel design, contact our technical team before ordering.

Q4: Can you guarantee long-term supply and provide replacement support for discontinued or hard-to-source units?
TOPNLMS maintains dedicated stock of EOCR-SS series components, including the EOCRSS-05RY7, to support customers with ongoing maintenance and spare parts programs. We specialize in sourcing industrial automation components for critical infrastructure operators who require reliable access to both current-production and legacy parts. If your required quantity is not shown in stock, contact us directly — we can confirm availability and lead time within one business day.
