Schneider Electric DEP112 Original Industrial Spare Modicon TSX Compatible

Product Overview

Schneider Electric DEP112 Original Industrial Spare Modicon TSX Compatible: System Stability & Industrial Spare Parts Maintenance Value

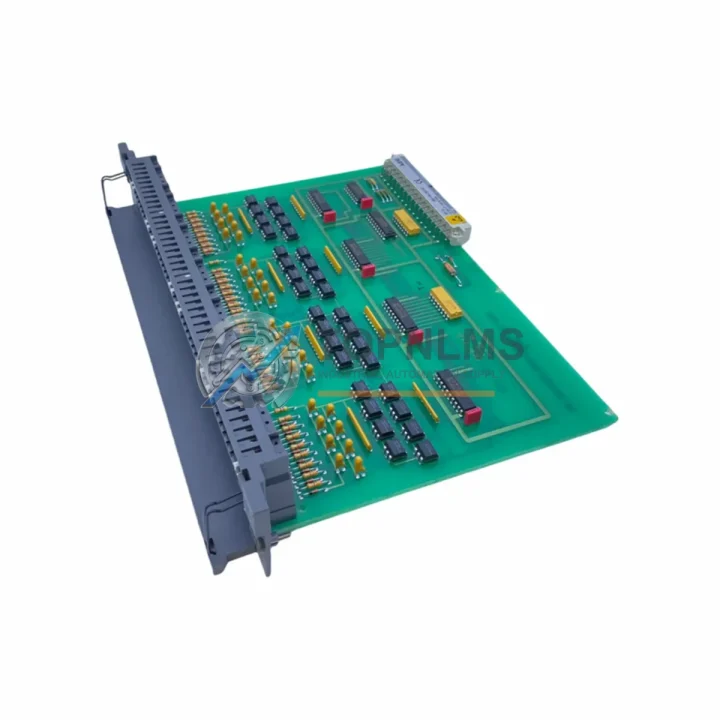

The Schneider Electric DEP112 is an original 12-point 24VDC digital input module engineered for the Modicon TSX series programmable logic controller platform. In industrial environments where production continuity is non-negotiable, maintaining a verified stock of original spare modules such as the DEP112 is a foundational element of any responsible preventive maintenance program. Whether you are managing a high-throughput manufacturing line, a process automation cell, or a legacy control system that must remain operational for years beyond its original design life, the DEP112 delivers the electrical compatibility, signal integrity, and mechanical fit that only an original Schneider Electric component can guarantee.

Unplanned downtime caused by a failed digital input module can cascade rapidly across a control system. A single degraded input channel can trigger false fault states, disable safety interlocks, or cause a PLC to enter a halt condition — stopping an entire production line within seconds. Sourcing a pre-tested, original DEP112 from verified inventory eliminates the guesswork of field substitution and restores system confidence immediately. Every unit dispatched from TOPNLMS undergoes functional verification prior to shipment, ensuring that the module you receive is ready for direct installation without additional bench testing.

Critical Technical Specs Table

Preventive Maintenance Strategy

A digital input module such as the DEP112 does not operate in isolation — it is one node in a tightly integrated control architecture. When scheduling a planned maintenance window or responding to an unplanned fault, experienced maintenance engineers know that inspecting and replacing a single module is rarely sufficient. The DEP112 interfaces directly with field sensors, pushbuttons, proximity switches, and safety devices through its 24VDC input channels. Any degradation in the upstream wiring, terminal blocks, or power supply will manifest as erratic input behavior that can be misdiagnosed as a module fault.

During a DEP112 replacement or inspection cycle, it is best practice to simultaneously verify the condition of the associated TSX power supply module (such as the TSX PSY series) that feeds the rack, since an under-voltage condition on the 24VDC bus is a leading cause of premature digital input module failure. The rack backplane and its connector pins should be inspected for oxidation or mechanical damage. If the control cabinet houses additional I/O modules — for example, a DEP216 or DEP224 digital input expansion module, or a DSY series digital output module — these should be included in the same inspection cycle to avoid a repeat maintenance visit within a short interval.

Field wiring connected to the DEP112 typically terminates on screw-type or spring-clamp terminal blocks; loose or corroded terminals are a frequent source of intermittent input faults that are difficult to reproduce during bench testing. Replacing worn terminal blocks during the same maintenance window is a low-cost intervention that significantly reduces future fault risk. If the system uses signal isolators or signal conditioners between field devices and the PLC input module, these should be tested for drift, as aging isolators can attenuate the 24VDC signal below the DEP112’s minimum input threshold.

For systems that include Modicon TSX communication modules (such as the TSX SCM series for serial communication or TSX ETZ Ethernet modules), a maintenance visit is also an appropriate time to verify firmware versions and cable integrity, since communication faults can mask underlying I/O errors. Similarly, if the control system includes a Modicon TSX analog input module (such as the AEY series) in the same rack, verifying its calibration status during the same shutdown window maximizes the value of each planned maintenance event.

Facilities managing aging Modicon TSX installations should also maintain a small buffer stock of replacement fuse modules and miniature circuit breakers rated for the 24VDC control circuit, as these are consumable protection devices that are frequently overlooked until a fault occurs. Pairing a DEP112 spare with a corresponding TSX processor module backup (such as the TSX37 or TSX57 series CPU) in your critical spares inventory ensures that a single-point failure anywhere in the rack can be resolved within one maintenance shift rather than requiring an emergency procurement cycle.

Strategic Replacement Solutions

The DEP112 is a direct original replacement for aging or failed digital input modules within the Modicon TSX platform. Unlike third-party compatible substitutes, an original Schneider Electric DEP112 requires no firmware reconfiguration, no I/O mapping adjustment, and no re-commissioning of the PLC program — it is a true drop-in replacement that restores the system to its validated operational state immediately upon installation.

For facilities operating legacy Modicon TSX systems that are no longer covered by the original equipment manufacturer’s active support lifecycle, maintaining a stock of original spare modules is the most cost-effective strategy for extending system life without the capital expenditure of a full control system migration. A single unplanned production stoppage caused by an unavailable spare module typically costs far more in lost output than the investment in a pre-positioned inventory of critical spares.

TOPNLMS sources DEP112 modules from verified supply channels, performs pre-shipment functional testing, and ships with full documentation. Lead times are minimized through maintained stock levels, and international shipping is supported to reduce procurement delays for facilities in regions with limited local distributor coverage. The 12-month warranty covers functional defects identified after installation, providing procurement teams with the confidence needed to approve spare parts purchases without extended vendor qualification processes.

Support FAQ

Q1: Is the DEP112 compatible with all Modicon TSX rack configurations?
The DEP112 is designed for the Modicon TSX series rack platform and is compatible with standard TSX rack slots that support digital input modules. Compatibility should be verified against your specific rack reference and PLC configuration file before installation. TOPNLMS can assist with compatibility verification upon request.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional defects in the module under normal operating conditions consistent with Schneider Electric’s published specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the rated operating range. Warranty claims are processed directly through TOPNLMS.

Q3: How is the DEP112 tested before shipment?
Each DEP112 unit undergoes functional verification prior to dispatch. Testing confirms that all 12 input channels respond correctly to 24VDC signals, that the module communicates correctly with the rack backplane, and that no physical damage is present. A test report is available upon request for quality-assurance documentation purposes.

Q4: What is the recommended inventory strategy for Modicon TSX spare modules?
For facilities with three or more Modicon TSX racks in operation, maintaining a minimum of one DEP112 spare per rack type in on-site inventory is recommended. For critical production lines where downtime cost exceeds USD 5,000 per hour, a two-unit buffer is advisable. Spare modules should be stored in anti-static packaging in a climate-controlled environment and rotated into service on a first-in, first-out basis to prevent shelf aging.
