Schneider Electric VDM01D10AA00 Original Industrial Spare Lexium MC-4 Compatible

Product Overview

Schneider Electric VDM01D10AA00 Original Industrial Spare Lexium MC-4 Compatible: System Stability & Industrial Spare Maintenance Value

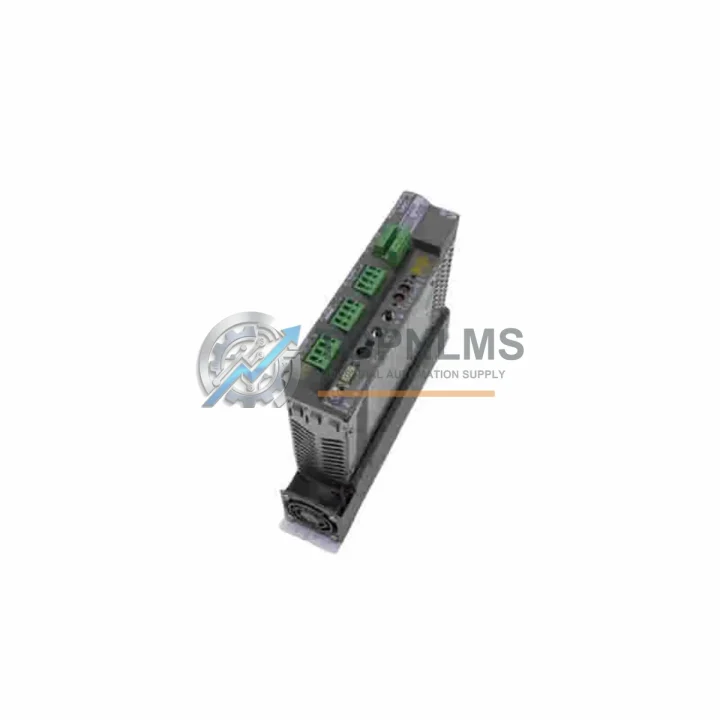

The Schneider Electric VDM01D10AA00 is a high-performance AC servo drive from the Lexium MC-4 series, rated at 11A continuous output current, 400V three-phase input. Designed for precision motion control in demanding industrial environments, this drive is a critical component in servo axis control cabinets across manufacturing, packaging, material handling, and process automation systems. Maintaining an original spare unit on-site is one of the most effective strategies for reducing unplanned downtime and protecting production continuity.

When a servo drive fails in a live production line, every minute of downtime translates directly into lost output and increased maintenance cost. The VDM01D10AA00 is a direct, plug-compatible replacement for existing Lexium MC-4 installations, preserving all original parameter sets, fieldbus configurations, and safety logic without requiring system re-engineering. Its availability as a stocked spare is a cornerstone of any serious preventive maintenance program for Schneider Electric motion control systems.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive does not operate in isolation. The VDM01D10AA00 sits at the heart of a motion control loop that depends on the health of every upstream and downstream component. During scheduled maintenance shutdowns or annual cabinet inspections, experienced maintenance engineers treat the servo drive replacement as an opportunity to audit the entire axis control chain.

Begin with the Lexium MC-4 servo motor paired to this drive — verify encoder feedback integrity, check for bearing wear, and confirm that motor cable insulation resistance meets specification. A degraded motor cable is one of the most common root causes of premature drive failure; replacing the VW3M5101 or VW3M5102 servo motor power cable at the same time as the drive eliminates a hidden failure point. Similarly, inspect the VW3M8D1AR encoder feedback cable for connector corrosion or shield continuity issues.

On the power supply side, verify that the ABL8REM24030 or equivalent 24VDC control power supply feeding the drive’s logic circuit is within voltage tolerance. An unstable control voltage is a frequent but overlooked cause of drive faults and nuisance trips. If the cabinet houses multiple servo axes, this is also the right time to inspect the LXM32 or LXM05 series drives on adjacent axes — drives of similar age in the same cabinet tend to fail within the same maintenance window.

Check the TeSys D or TeSys K series contactor on the main power feed to the drive. Worn contactor contacts cause voltage dips that stress the drive’s rectifier bridge and DC bus capacitors. Replacing a contactor is a fraction of the cost of a drive replacement. While the cabinet is open, inspect the Zelio Logic smart relay or Modicon M221 PLC that issues motion commands — verify that the digital output modules driving the drive’s enable and direction inputs are functioning correctly and that no output channels are stuck or degraded.

Terminal blocks and Linergy or Omega series terminal strips should be torque-checked and inspected for discoloration indicating thermal stress. Loose terminals on the drive’s power input or motor output connections are a leading cause of intermittent faults that are difficult to diagnose under load. Finally, confirm that any EMC line filter (VW3A4601 or equivalent) upstream of the drive is intact and properly grounded — a failed filter allows conducted interference to corrupt the drive’s control electronics over time.

Strategic Replacement Solutions

The VDM01D10AA00 is a direct replacement for aging or failed units within the Lexium MC-4 platform. Because Schneider Electric maintains backward compatibility within the MC-4 series, a new drive can be installed and commissioned using the existing parameter backup from the SoMove or PowerSuite commissioning software without requiring a full system re-validation. This dramatically reduces the time from failure to restored production — in many cases, a trained technician can complete the swap within two to four hours.

For facilities managing aging Lexium MC-4 installations that are approaching end-of-service-life, stocking one or two VDM01D10AA00 units as cold spares is a proven strategy for extending the operational life of the overall motion system by three to five years beyond the original equipment lifecycle. This defers the capital expenditure of a full system upgrade while maintaining production reliability. The original Schneider Electric build quality, combined with our pre-shipment functional testing and 12-month warranty, ensures that each unit shipped is ready for immediate installation.

For facilities transitioning to newer Lexium 32 or Lexium 62 platforms, the VDM01D10AA00 remains essential for maintaining legacy axes during the phased migration period, ensuring that no single axis failure forces an unplanned full-system upgrade.

Support FAQ

Q1: Is this an original Schneider Electric VDM01D10AA00 or a compatible substitute?
This is an original Schneider Electric VDM01D10AA00 sourced from authorized supply channels. Each unit undergoes pre-shipment functional verification. We do not supply counterfeit, refurbished-without-disclosure, or third-party compatible substitutes.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the rated specification. Our technical team is available to assist with installation verification prior to commissioning.

Q3: Can this drive be installed without re-parameterization if replacing a failed unit?
Yes, provided you have a parameter backup from the original drive (via SoMove or PowerSuite). If no backup exists, our team can provide the standard factory default parameter set for the VDM01D10AA00 and advise on the key application-specific parameters that require adjustment during commissioning.

Q4: What is your typical lead time and shipping process?
In-stock units are dispatched within 1–2 business days. Each drive is packaged in anti-static protective packaging with full documentation. We ship worldwide via tracked express freight. A pre-shipment test report is available upon request for critical applications.
