Schneider LXM05BD34N4 Replacement/Upgrade for Lexium 05

Product Overview

Schneider LXM05BD34N4 Replacement/Upgrade for Lexium 05: Smooth Migration from Legacy Servo Systems

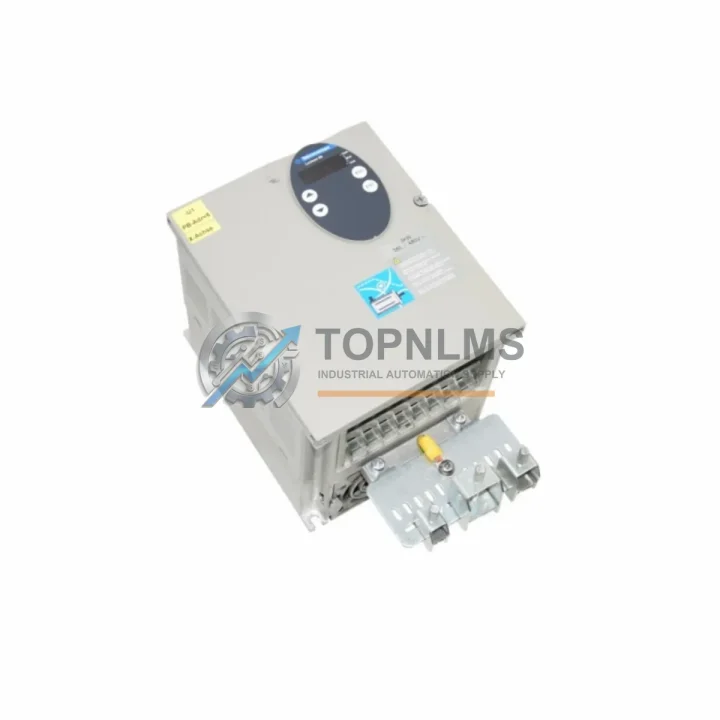

The Schneider Electric LXM05BD34N4 is a 3.4A, 400V AC servo amplifier from the Lexium 05 series, designed for precision motion control in demanding industrial automation environments. Whether you are replacing a failed unit, upgrading from an end-of-life servo drive, or migrating an entire motion control architecture, this amplifier delivers direct compatibility with existing Lexium 05 wiring harnesses, motor feedback cables, and control cabinet footprints — minimizing engineering rework and unplanned downtime.

Many facilities running legacy Telemecanique or early Schneider servo platforms — including older Lexium 05 (LXM05A) variants or discontinued Lexium 15 drives — face increasing difficulty sourcing spare parts. The LXM05BD34N4 serves as a validated drop-in replacement for same-series units, retaining the same DIN-rail or panel-mount profile, identical DC bus connector pinout, and compatible STO (Safe Torque Off) wiring. Engineers performing a like-for-like swap can reuse existing motor power cables and resolver or encoder feedback wiring without modification, provided the motor is a compatible BSH or SH3 series servo motor.

For sites migrating from older motion controllers, the LXM05BD34N4 supports both Modbus RTU and CANopen DS402 communication protocols, making it straightforward to integrate with existing Modicon M340 or Modicon Premium PLCs via the onboard serial port or optional fieldbus interface card. If your legacy system used a TSX Micro or TSX Premium controller with a dedicated motion axis card, the LXM05BD34N4 can be re-commissioned under the same axis parameters using SoMove or PowerSuite commissioning software, significantly reducing re-programming effort.

Control cabinet space is a frequent constraint during retrofit projects. The LXM05BD34N4 maintains the compact Lexium 05 form factor, allowing it to fit into existing cutouts without panel modification. When upgrading multiple axes simultaneously, the shared DC bus architecture means you can retain the existing LXM05PFU power filter unit and common DC bus bar, avoiding costly cabinet redesign. The 24VDC logic supply input is compatible with standard PHASEO ABL7 or equivalent Schneider power supply modules already present in most Lexium 05 cabinets.

During field commissioning, the integrated keypad and seven-segment display allow basic parameter entry and fault diagnostics without a laptop, which is particularly valuable during emergency replacements. For full parameter cloning from a failed unit, the SoMove software backup file can be restored directly to the replacement LXM05BD34N4, restoring all tuning gains, speed limits, and I/O assignments in minutes. If the original parameter file is unavailable, our technical team can assist with baseline configuration based on motor nameplate data.

Sites running multi-axis gantry or conveyor systems often pair the LXM05BD34N4 with LXM05BD17N4 or LXM05BD72N4 amplifiers on adjacent axes, sharing a common DC bus and synchronized via CANopen master-slave configuration. This mixed-axis topology is fully supported and allows phased replacement of individual drives without disrupting the rest of the motion system.

For applications requiring enhanced safety compliance, the LXM05BD34N4 includes a hardware STO input compatible with Preventa XPSAF or equivalent safety relay modules, enabling IEC 62061 SIL2 / ISO 13849 PLd safety architectures without additional external components. This is a critical consideration for retrofit projects subject to updated machinery safety directives.

All units supplied by TOPNLMS are sourced from authorized distribution channels or verified surplus stock, individually tested for output voltage balance, current loop response, and communication integrity prior to shipment. Each LXM05BD34N4 ships with a 12-month warranty, full parameter reset to factory defaults, and original or equivalent packaging to prevent transit damage.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Lexium 05 migration rarely involves a single component. When replacing the LXM05BD34N4, engineers typically review the surrounding system architecture to ensure all interdependent components remain compatible. The LXM05PFU power filter unit, which conditions the AC input and supports common DC bus operation across multiple axes, should be inspected and retained if within its service life. The 24VDC logic supply — commonly provided by a PHASEO ABL7RE24100 or similar regulated power supply — must be verified to meet the amplifier’s inrush and steady-state current requirements.

On the motor side, the BSH0703P11A2A or equivalent BSH series servo motor paired with the LXM05BD34N4 should have its resolver cable and motor power cable continuity verified before commissioning the replacement drive. If the feedback cable connector shows wear, a replacement VW3M5101R30 motor encoder cable is a recommended concurrent replacement to avoid a second service call.

For the control layer, sites using a Modicon M340 BMX P34 2020 CPU with a BMX MSP 0200 motion module will find the CANopen DS402 interface of the LXM05BD34N4 fully compatible, requiring only node address reassignment in Unity Pro or EcoStruxure Machine Expert. Sites on older TSX Premium platforms using a TSX CAY 33 axis card can continue to operate the replacement drive under the same axis configuration without PLC program changes. A VW3A8306 CANopen interface card, if not already installed, may be required for CANopen-based topologies.

For I/O-intensive retrofit projects, TM5 distributed I/O modules or STB NIC 2212 network interface modules are commonly deployed alongside servo drive replacements to modernize the field I/O layer without replacing the entire control cabinet. Signal isolation between the servo drive analog reference output and legacy PLC analog input cards can be achieved using PACT RCP-24VDC or equivalent DIN-rail signal conditioners, ensuring clean ±10V reference signals in electrically noisy environments.

Retrofit Guidance FAQ

Q: Can I reuse existing motor power and feedback cables when replacing with LXM05BD34N4?
A: Yes, for same-series Lexium 05 replacements. The motor power connector (CN2) and resolver/encoder feedback connector (CN3) pinouts are identical across the LXM05B range. If migrating from a Lexium 15 or other series, cable adapters or rewiring at the terminal block level will be required.

Q: Do I need to reprogram the PLC after replacing the servo amplifier?
A: Not for a like-for-like replacement. If the original SoMove or PowerSuite parameter file is available, it can be restored to the LXM05BD34N4 in under 10 minutes. PLC axis configuration (node address, PDO mapping) remains unchanged. Only if upgrading from a different drive series will axis re-parameterization be necessary.

Q: Is the LXM05BD34N4 compatible with CANopen and Modbus simultaneously?
A: The drive supports one active fieldbus protocol at a time. CANopen DS402 is selected via the VW3A8306 option card; Modbus RTU is available on the onboard RJ45 serial port. Protocol selection is made during commissioning and does not require hardware changes beyond the optional fieldbus card.

Q: What are the physical installation requirements?
A: The LXM05BD34N4 requires a minimum 50mm clearance above and below for airflow. It mounts on a standard 35mm DIN rail or directly to a back panel using M4 screws. The unit dimensions are identical to other LXM05B variants, so no panel cutout modification is needed for same-series replacements.

Q: How do I handle the STO wiring during replacement?
A: The STO input (24VDC, dual-channel) wiring from the existing safety relay — such as a Preventa XPSAF or XPSAL module — connects directly to the CN7 connector on the LXM05BD34N4 without modification. Verify STO function after installation per your site’s safety validation procedure before returning the machine to service.

Q: What if the original parameter file is lost?
A: Contact TOPNLMS with the motor nameplate data (BSH part number, rated speed, rated torque) and the original application description. Our technical team will provide a baseline SoMove parameter file to accelerate commissioning. Fine tuning of velocity and current loop gains will still require on-site auto-tuning.

Warranty Assurance

Every LXM05BD34N4 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection protocol includes: DC bus capacitor charge/discharge cycle test, output phase balance verification (U/V/W), STO input functional test, communication port loopback test (Modbus RTU), and parameter write/read verification. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, with no requirement to return the defective unit before the replacement ships for verified warranty cases. Our after-sales team is reachable via email at [email protected] or by phone at +86 18359293191 during business hours (UTC+8, Monday–Saturday).

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code 850440 for customs clearance. Lead time for in-stock units is 1–3 business days for domestic China shipments and 5–10 business days for international express delivery (DHL / FedEx / UPS).

TOPNLMS maintains a standing inventory of Lexium 05 series components to support emergency replacement scenarios. If you require multiple units or a blanket purchase order for ongoing maintenance contracts, contact our sales team for volume pricing and reserved stock arrangements.
