Schneider Electric TSXLES65 Original Industrial Spare TSX Premium Compatible

Product Overview

Schneider Electric TSXLES65 Original Industrial Spare TSX Premium Compatible: System Stability & Industrial Spare Maintenance Value

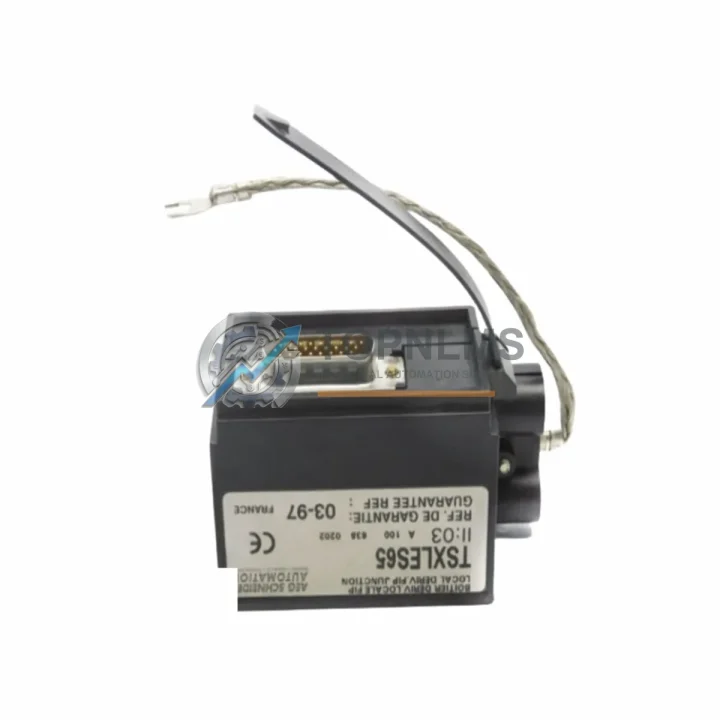

The Schneider Electric TSXLES65 is an original Local I/O Bus Extension Connector designed for the TSX Premium PLC platform — one of the most widely deployed programmable logic controller series in process automation, discrete manufacturing, and critical infrastructure worldwide. For maintenance engineers and procurement teams managing aging TSX Premium control systems, the TSXLES65 represents a mission-critical spare component: it enables the physical extension of the local I/O bus between the TSX Premium rack and remote I/O sub-racks, preserving the integrity of the entire control architecture without requiring costly system redesign or migration.

In industrial environments where unplanned downtime translates directly into production loss, having a verified original TSXLES65 in your spare parts inventory is a proactive risk management decision. This connector ensures that your TSX Premium system continues to communicate reliably across distributed I/O racks, maintaining deterministic scan cycles and signal integrity across the local bus. Whether you are managing a food processing line, a water treatment facility, a packaging plant, or a discrete assembly operation, the TSXLES65 is the correct OEM-specified component for bus extension in TSX Premium configurations.

Critical Technical Specs Table

Preventive Maintenance Strategy

When scheduling a planned maintenance window for a TSX Premium control cabinet, replacing or inspecting the TSXLES65 bus extension connector should be part of a broader rack-level inspection protocol. The local I/O bus is the communication backbone between the CPU rack and any extended I/O sub-racks; a degraded or intermittently failing connector can produce sporadic I/O faults, unpredictable module dropouts, and difficult-to-diagnose communication errors that waste significant engineering time.

During the same maintenance cycle, engineers should inspect and, where appropriate, stock replacement units for the following associated components in the TSX Premium ecosystem:

• TSXCAP030 / TSXCAP050 / TSXCAP100 Bus Extension Cables — the physical cables that connect to the TSXLES65 connector. Cable sheath degradation, connector pin wear, and mechanical stress at cable entry points are common failure modes in high-vibration environments. Always inspect cable condition when replacing the TSXLES65.
• TSX PSY 2600 / TSX PSY 5500 Power Supply Modules — rack power supplies are a primary failure point in aging TSX Premium systems. A failing power supply can cause intermittent bus errors that are misdiagnosed as connector or cable faults. Stocking a spare PSY module alongside the TSXLES65 ensures you can isolate the fault source quickly.
• TSX DEY 16D2 / TSX DEY 32D2 Digital Input Modules — discrete input modules in the extended I/O rack are directly dependent on a healthy bus extension connection. If the TSXLES65 is being replaced due to communication faults, verify that the I/O modules in the sub-rack have not sustained damage from voltage transients during the fault period.
• TSX DSY 16T2 / TSX DSY 32T2 Digital Output Modules — output modules driving field devices such as contactors, solenoids, and motor starters should be inspected for output channel failures, particularly in high-cycle applications where thermal stress accelerates aging.
• TSX AEY 414 / TSX AEY 800 Analog Input Modules — in process control applications, analog input modules measuring temperature, pressure, or flow signals are sensitive to bus communication quality. Verify signal accuracy after any bus extension maintenance.
• TSX REY 200 Relay Output Modules — relay output modules have mechanical wear components (relay contacts) with finite cycle life. Preventive replacement of relay modules in the same maintenance window avoids a secondary unplanned outage.
• TSX ETY 110 / TSX ETY 5103 Ethernet Communication Modules — if the TSX Premium system is networked via Modbus TCP or Ethernet/IP, the communication module should be inspected for firmware version compatibility and physical connector condition.
• TSX P57 104M / TSX P57 204M CPU Modules — for systems running on older processor firmware, a spare CPU module in inventory is the single most important risk mitigation measure. CPU module failure in a TSX Premium system without a spare can result in days of downtime while sourcing a replacement.
• TSXRKY4 / TSXRKY6 / TSXRKY8 Rack Backplanes — rack backplane connectors and bus traces can develop micro-fractures in high-vibration environments. If the TSXLES65 replacement does not resolve bus communication errors, the rack backplane itself should be evaluated.
• 24VDC Terminal Block Power Distribution Modules — field-side power distribution to I/O modules and sensors should be verified during any rack-level maintenance, as loose terminal connections are a frequent source of intermittent field device faults that are incorrectly attributed to PLC communication issues.

A structured spare parts kit covering the TSXLES65 alongside the components listed above provides comprehensive coverage for the most common TSX Premium failure modes, enabling your maintenance team to restore system operation within a single shift rather than waiting for emergency procurement.

Strategic Replacement Solutions

The TSX Premium platform, while no longer in active production, remains operational in thousands of industrial facilities globally. Schneider Electric’s transition toward the Modicon M340 and M580 platforms has created a growing challenge for maintenance teams: original TSX Premium spare parts are increasingly difficult to source through standard distribution channels, and lead times for genuine OEM components have extended significantly.

The TSXLES65 is a particularly critical spare in this context because it is a non-repairable connector component — when it fails, direct replacement is the only corrective action. There is no field repair procedure for a damaged bus extension connector. This makes pre-emptive stocking of the TSXLES65 a high-priority action for any facility running TSX Premium systems in production-critical applications.

For facilities managing the transition from TSX Premium to newer Modicon platforms, the TSXLES65 supports system life extension strategies by maintaining the reliability of the existing architecture during the migration period. Rather than forcing an accelerated and costly full system replacement, a well-maintained TSX Premium system with genuine spare parts can continue to operate reliably for an additional 5–10 years, allowing capital expenditure to be planned and phased appropriately.

All TSXLES65 units supplied by TOPNLMS are sourced as original Schneider Electric components, individually tested for electrical continuity and connector integrity prior to dispatch, and shipped with full 12-month warranty coverage. Expedited shipping options are available for emergency maintenance situations.

Support FAQ

Q1: Is the TSXLES65 compatible with all TSX Premium rack configurations?
The TSXLES65 is designed for use with TSX Premium local I/O bus extension applications, compatible with TSX P57 and TSX P47 series CPU racks. It is used in conjunction with TSXCAP series extension cables (030, 050, 100) to connect the main CPU rack to one or more I/O sub-racks. Verify your rack model and cable length requirement before ordering. If you are unsure of compatibility, contact us with your full system configuration and we will confirm suitability.

Q2: What is the recommended inventory strategy for the TSXLES65?
For facilities operating a single TSX Premium system, a minimum of one spare TSXLES65 unit is recommended. For multi-line or multi-rack installations, a ratio of one spare per three to five installed connectors is a practical baseline. Given the extended lead times for TSX Premium components through standard channels, holding a buffer stock of 2–3 units is advisable for facilities where downtime costs are high. The TSXLES65 has no shelf-life limitation when stored in a dry, temperature-controlled environment.

Q3: How is the TSXLES65 tested before shipment?
Every TSXLES65 unit undergoes pre-shipment inspection covering physical connector integrity, pin condition, housing integrity, and electrical continuity verification. Units that do not pass inspection are not dispatched. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and component failure under normal operating conditions. Warranty claims are supported with replacement dispatch or full refund at the customer’s option.

Q4: Can the TSXLES65 be used to replace a failed connector in an emergency shutdown situation?
Yes. The TSXLES65 is a direct plug-in replacement requiring no configuration or programming changes. Replacement procedure involves powering down the TSX Premium rack, disconnecting the extension cable from the failed connector, removing the old connector from the rack, installing the replacement TSXLES65, reconnecting the extension cable, and restoring power. The TSX Premium CPU will automatically re-establish communication with the extended I/O rack upon power-up. Total replacement time for a trained technician is typically under 15 minutes, making the TSXLES65 one of the fastest field-replaceable components in the TSX Premium architecture.
