Schneider Electric BMXFTB2820 Original Industrial Spare M340 Compatible: System Stability & Industrial Spare Maintenance Value

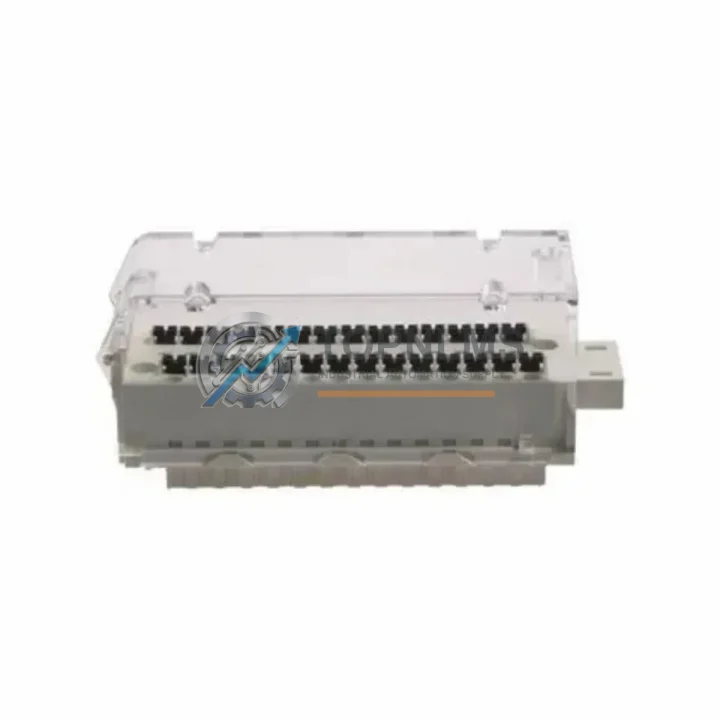

The Schneider Electric BMXFTB2820 is a 28-pin preformed terminal block engineered specifically for the Modicon M340 PLC platform — one of the most widely deployed mid-range programmable logic controllers in process automation, discrete manufacturing, and infrastructure control systems worldwide. Maintaining a verified stock of this component is a foundational element of any serious industrial spare parts strategy. When a terminal block fails or degrades in a live control cabinet, the consequences extend far beyond the component itself: I/O signal integrity is compromised, field wiring connections become unreliable, and the risk of unplanned downtime escalates rapidly.

For maintenance engineers and procurement teams managing aging Modicon M340 installations, the BMXFTB2820 represents a direct, plug-compatible replacement that preserves the original wiring harness layout, eliminates re-termination labor, and restores full electrical continuity to the affected I/O module slot. Its preformed design ensures that field cables connect at the correct pitch and orientation without modification — a critical advantage during emergency shutdowns where speed of restoration is paramount.

Critical Technical Specs

Preventive Maintenance Strategy

A terminal block failure rarely occurs in isolation. In a Modicon M340 control cabinet, the BMXFTB2820 interfaces directly with the I/O module’s front connector and the field wiring harness — meaning that when a terminal block is replaced, the surrounding components should be inspected simultaneously to prevent repeat failures and maximize the value of each maintenance intervention.

During a scheduled replacement of the BMXFTB2820, maintenance teams should conduct a concurrent inspection of the associated BMX DDI 1602 or BMX DDO 1602 digital I/O modules, verifying that the module’s front connector pins show no signs of oxidation or mechanical deformation. The BMX CPS 2000 or BMX CPS 3500 power supply modules feeding the M340 rack should be checked for output voltage stability and capacitor aging — power supply degradation is a leading cause of intermittent I/O faults that are often misattributed to terminal block issues.

Field wiring integrity is equally important. Inspect the cable harness and shielded signal cables connected to the terminal block for insulation cracking, especially in high-temperature or high-vibration environments. If the cabinet includes analog I/O, the BMX AMI 0410 or BMX AMO 0210 analog modules and their associated terminal blocks should be tested for signal drift, as loose terminations at the BMXFTB2820 level can introduce noise into 4–20 mA or 0–10 V signal loops.

For systems using Modicon M340 in networked architectures, the BMX NOE 0100 or BMX NOE 0110 Ethernet communication modules should be verified for firmware currency and network connectivity during the same maintenance window. Communication module faults can mask I/O errors and complicate fault diagnosis. Similarly, if the rack includes a BMX ERT 1604 event-recording module, confirm that its time-stamping function is synchronized and that its terminal connections are secure.

Rack-level integrity checks should include the BMX XBP 0800 or BMX XBP 1200 backplane — inspect the backplane bus connectors for contamination or mechanical stress, particularly in installations where modules have been frequently swapped. Finally, review the BMX P34 2020 or BMX P34 2030 CPU modules for battery status and firmware version, as CPU health directly governs the reliability of the entire M340 system. A comprehensive maintenance visit that addresses all of these components alongside the BMXFTB2820 replacement will significantly extend system uptime and reduce the frequency of emergency callouts.

Strategic Replacement Solutions

The BMXFTB2820 is a direct factory replacement for the original terminal block supplied with Modicon M340 I/O modules. Unlike generic aftermarket alternatives, the original Schneider Electric part guarantees dimensional compatibility with the BMX module front connector, correct terminal pitch, and compliance with the torque specifications defined in Schneider Electric’s installation documentation. This eliminates the risk of connector damage, intermittent contact, or voided module warranty that can result from using non-OEM terminal blocks.

For facilities managing legacy M340 installations that are no longer under active vendor support contracts, maintaining a local stock of BMXFTB2820 units is a cost-effective strategy to extend system life without committing to a full platform migration. A single unplanned shutdown in a continuous-process environment can cost multiples of the annual spare parts budget — stocking two to four BMXFTB2820 units per cabinet type provides meaningful insurance against this risk at minimal carrying cost.

When planning a phased system upgrade, the BMXFTB2820 also supports a hybrid maintenance approach: existing M340 racks can be kept operational with original spare parts while new control segments are migrated to the Modicon M580 platform, allowing engineering teams to manage transition timelines without forcing emergency replacements. This strategy preserves capital budget flexibility and reduces the operational risk associated with large-scale simultaneous migrations.

All units supplied by TOPNLMS are sourced from authorized channels, individually inspected prior to dispatch, and covered by a 12-month warranty. Each shipment includes a test report confirming electrical continuity and dimensional verification. Orders are processed within 1–2 business days, with international logistics support available for urgent requirements.
