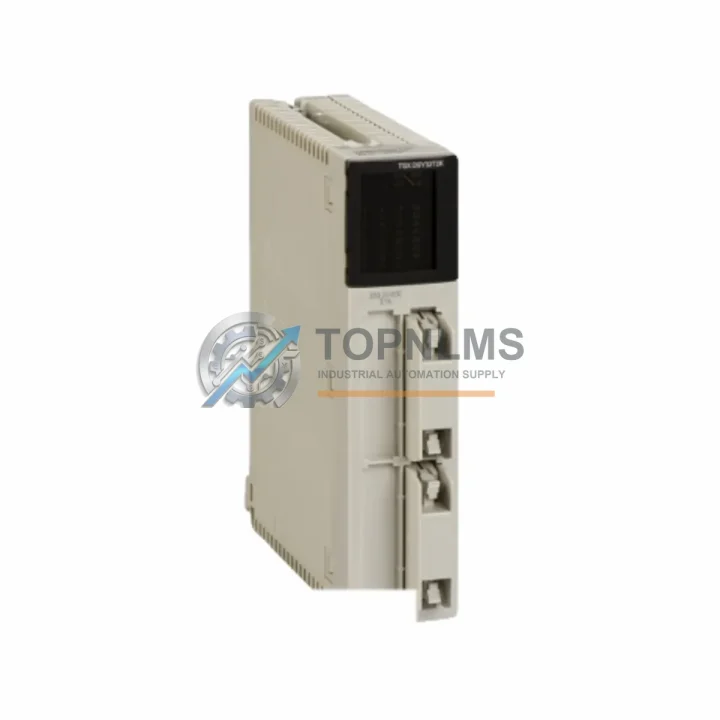

Schneider Electric TSXDSY32T2K Original Industrial Spare TSX Micro Compatible: Securing System Stability in Demanding Industrial Environments

The Schneider Electric TSXDSY32T2K is a 32-channel transistor output module engineered for the TSX Micro PLC platform — one of the most widely deployed compact automation controllers in light manufacturing, material handling, building automation, and process control applications across Europe, Asia, and beyond. As aging TSX Micro systems continue to operate in facilities where full migration is cost-prohibitive or operationally disruptive, maintaining a reliable inventory of original spare modules like the TSXDSY32T2K has become a cornerstone of any credible preventive maintenance strategy.

Sourced as original Schneider Electric production stock, each TSXDSY32T2K unit at TOPNLMS undergoes functional verification prior to dispatch. The module ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions. For maintenance engineers and procurement teams managing legacy TSX Micro installations, this represents a low-risk, high-confidence replacement path that eliminates the need for costly system redesigns or emergency integrator callouts.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your TSX Micro System from Unplanned Downtime

In any facility running TSX Micro-based control panels, the TSXDSY32T2K output module is typically responsible for driving actuators, solenoid valves, indicator lamps, relay coils, and motor starter signals. When this module degrades — whether through channel burnout, connector wear, or internal transistor failure — the downstream impact can range from a single malfunctioning actuator to a complete production line stoppage. Proactive replacement scheduling, rather than reactive emergency sourcing, is the most cost-effective approach for maintenance teams managing these systems.

During scheduled shutdowns or annual control cabinet inspections, maintenance engineers should treat the TSXDSY32T2K as part of a broader module health audit. While replacing or testing the output module, it is equally prudent to inspect the companion TSXDSY16D2 or TSXDSY16T2 digital output modules installed in adjacent slots, as these share the same I/O bus and are subject to similar wear patterns. The TSXDEY32D2 32-channel digital input module should also be verified at the same time — input and output modules in the same control loop often experience correlated degradation due to shared wiring harnesses and environmental exposure.

Power integrity is a frequently overlooked factor in TSX Micro reliability. The TSXPSY2600M or TSXPSY5000M power supply modules feeding the base unit should be load-tested during any maintenance window where output modules are being serviced. A marginal power supply that passes basic voltage checks may still cause intermittent output faults under full channel load. Similarly, the TSXRKY4 or TSXRKY8EX rack extension units, if present in the installation, should be inspected for backplane connector integrity and secure module seating.

For installations where the TSX Micro communicates with upstream SCADA systems or distributed I/O via fieldbus, the TSXSCP114 or TSXSCP111 communication modules deserve attention during the same maintenance cycle. Communication module faults can mask output module issues by generating false diagnostic flags, complicating fault isolation. Inspecting terminal blocks, particularly TSXCDP053 or equivalent HE10-to-screw terminal adapters, for oxidation and loose terminations is a low-cost step that prevents a significant proportion of field-reported output faults.

For facilities managing multiple TSX Micro panels, a recommended spare parts inventory should include at minimum one TSXDSY32T2K per active installation, alongside a TSXMRPC001M or TSXMRPC002M memory cartridge backup of each PLC program. In the event of a complete base unit failure, having a pre-programmed memory cartridge dramatically reduces restoration time. Pairing this with a standby TSX3722 or TSX3741 base unit in storage provides a full cold-standby capability that most facilities can implement without significant capital outlay.

Strategic Replacement Solutions: Extending TSX Micro System Life Without Migration Risk

The TSXDSY32T2K is a direct, slot-compatible replacement for any failed or degraded 32-channel transistor output module in the TSX Micro family. No firmware changes, no I/O address remapping, and no PLC program modifications are required — the replacement module is recognized automatically by the TSX Micro CPU upon power-up, restoring full output functionality within minutes of installation.

For facilities where the original TSXDSY32T2K has been discontinued through normal distribution channels, TOPNLMS maintains stock sourced from verified industrial supply chains. This eliminates the lead time risk associated with standard distributor back-orders, which can extend to 8–16 weeks for legacy Schneider Electric modules. For maintenance managers operating under strict SLA commitments or managing just-in-time production schedules, having a pre-qualified supplier with confirmed stock availability is a material risk reduction measure.

Where a facility is considering a phased migration from TSX Micro to a newer Modicon M221 or M241 platform, the TSXDSY32T2K serves as a cost-effective bridge solution — maintaining operational continuity in non-critical zones while migration resources are concentrated on higher-priority control loops. This hybrid approach reduces total migration cost and risk compared to a full cutover strategy.

Each unit dispatched from TOPNLMS is individually tested for channel continuity, isolation integrity, and connector condition. Units that do not meet original Schneider Electric performance specifications are not offered for sale. Shipment is accompanied by a test record and is covered by a 12-month warranty from the date of delivery.

Support FAQ

Q1: Is the TSXDSY32T2K compatible with all TSX Micro base units?
The TSXDSY32T2K is compatible with the full range of TSX Micro base units including TSX 3721, 3722, 3741, 3742, 3751, and 3752. It occupies a standard I/O slot and is recognized automatically by the TSX Micro CPU without any configuration change. If you are unsure about slot compatibility for your specific base unit revision, contact us with your base unit reference and we will confirm prior to order.

Q2: What testing is performed before shipment?
Every TSXDSY32T2K unit undergoes functional verification including channel output continuity testing, optical isolation check, and connector pin integrity inspection before dispatch. A test record is included with each shipment. Units are packed in anti-static protective packaging suitable for international freight.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions (per the original Schneider Electric environmental and electrical specifications). It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a target response time of 3 business days.

Q4: How should I manage spare parts inventory for a multi-panel TSX Micro installation?
For installations with 3 or more TSX Micro panels, we recommend maintaining a minimum of one TSXDSY32T2K per 3–5 active panels as a rotating spare. For critical production lines, a 1:1 spare ratio is advisable. Bulk procurement pricing is available for orders of 3 units or more — contact us for a quotation. We also recommend pairing output module spares with at least one spare power supply module and a set of HE10 terminal adapter cables to ensure a complete rapid-response kit.
