Schneider Electric TSXAEM1613 Original Industrial Spare TSX Premium Compatible: System Stability & Industrial Spare Parts Maintenance Value

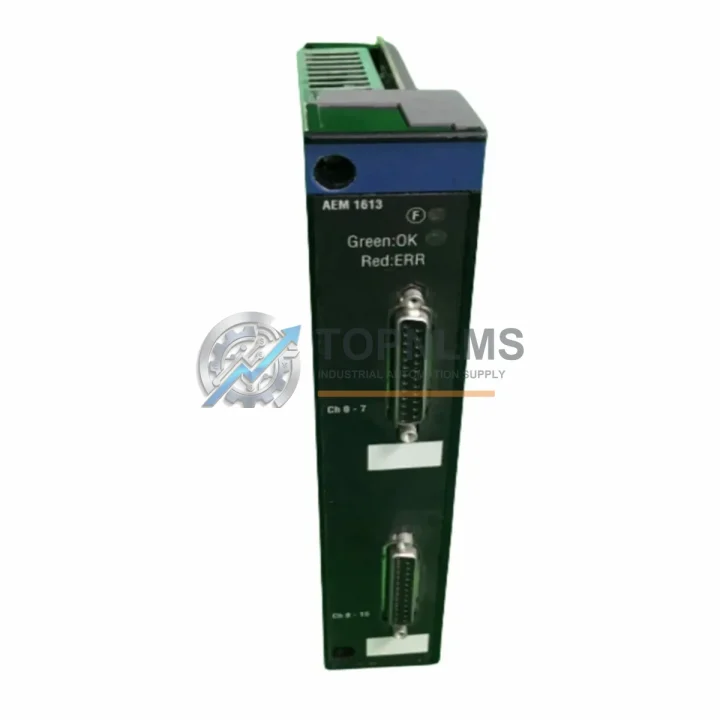

The Schneider Electric TSXAEM1613 is a 16-channel analog input module engineered for the Modicon TSX Premium PLC platform — one of the most widely deployed programmable logic controller families in process manufacturing, utilities, and discrete automation. For maintenance engineers managing aging TSX Premium control systems, sourcing an original, tested TSXAEM1613 is not merely a procurement task; it is a critical decision that directly determines system uptime, signal integrity, and the long-term viability of the entire control architecture.

Industrial facilities running TSX Premium PLCs often face a common dilemma: the control system is stable, well-understood by the maintenance team, and deeply integrated into the production process — yet original spare parts are increasingly difficult to source. The TSXAEM1613 addresses this challenge directly. As an original Schneider Electric module, it slots into the existing TSX Premium rack without firmware reconfiguration, parameter remapping, or hardware adaptation, enabling a rapid like-for-like replacement that minimizes planned and unplanned downtime.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a TSXAEM1613 analog input module is flagged for replacement during a scheduled shutdown or emergency corrective maintenance, experienced maintenance planners treat the event as an opportunity to audit the broader control cabinet. Analog input failures rarely occur in isolation — they are often symptomatic of broader issues including power supply degradation, connector oxidation, or signal cable deterioration.

During the same maintenance window, engineers should inspect the TSXPSY2600 or TSXPSY5000 power supply modules that feed the TSX Premium rack, as a marginal power supply can cause intermittent analog channel errors that are difficult to diagnose remotely. The TSXDEY32D2 digital input module and TSXDSY32T2 digital output module installed in adjacent rack slots should also be checked for contact wear and terminal tightness, since vibration in industrial environments gradually loosens terminal connections across all modules simultaneously.

Signal wiring connected to the TSXAEM1613 should be traced back to field instruments. If the facility uses 4–20 mA transmitters for pressure, temperature, or flow measurement, this is the right moment to verify loop integrity and replace any corroded terminal blocks or marshalling rail assemblies in the junction box. Signal isolators — such as those used to protect the analog input channels from ground loops in long cable runs — should be tested for drift, as aged isolators introduce offset errors that appear as calibration faults rather than hardware failures.

For facilities with TSXSCP114 or TSXSCP111 communication modules installed in the same TSX Premium rack for Modbus or Uni-Telway fieldbus connectivity, firmware version compatibility should be verified after any module swap. Similarly, if the system includes a TSXETY110 or TSXETY410 Ethernet module for supervisory SCADA connectivity, network configuration parameters should be backed up before the maintenance window begins.

Maintenance teams managing multiple TSX Premium cabinets across a plant should also review the status of TSXMFP0128P or TSXMFP0256P memory extension cards in the CPU modules, as these cards store application programs and data tables that must be preserved during any rack-level intervention. Keeping a TSXP57454M or TSXP57354M CPU module as a cold standby spare alongside the TSXAEM1613 is a recognized best practice for facilities where TSX Premium systems control critical process loops.

Strategic Replacement Solutions

The TSXAEM1613 is a direct original replacement for aging or failed analog input modules within the TSX Premium platform. Unlike third-party compatible modules that may require parameter file modifications or introduce subtle signal scaling differences, an original Schneider Electric TSXAEM1613 is recognized immediately by the TSX Premium CPU upon hot-swap or cold restart, with no additional configuration steps required in PL7 Pro or Unity Pro programming environments.

For facilities transitioning from older TSX 17 or TSX 37 micro-PLC systems toward TSX Premium, the TSXAEM1613 provides a consistent analog I/O architecture that simplifies cross-platform maintenance training. Maintenance engineers already familiar with Schneider Electric’s analog channel addressing conventions will find the module’s behavior predictable and its diagnostic LEDs intuitive during fault isolation.

Stocking one or two TSXAEM1613 modules as on-site cold spares eliminates the lead time risk associated with emergency procurement. In facilities where analog input failures trigger production line stoppages, the cost of a single unplanned downtime event typically exceeds the cost of maintaining a small spare parts inventory by a significant margin. Each unit shipped from TOPNLMS is tested prior to dispatch and covered by a 12-month warranty, providing procurement teams with the documentation and assurance required for maintenance budget justification.

Support FAQ

Q1: Is the TSXAEM1613 compatible with all TSX Premium rack sizes?
Yes. The TSXAEM1613 is compatible with all TSX Premium racks in the TSX RKY series, including 4-slot, 8-slot, and 12-slot configurations. It occupies a single rack slot and draws power from the rack backplane without requiring an external power connection.

Q2: What is the recommended inventory strategy for TSXAEM1613 spares?
For facilities with 3 or more TSX Premium racks containing analog input modules, maintaining a minimum of 1–2 TSXAEM1613 units as on-site cold spares is recommended. This buffer covers both emergency corrective replacement and planned preventive swap-outs during scheduled shutdowns, without relying on expedited international shipping.

Q3: How is the module tested before shipment, and what does the 12-month warranty cover?
Each TSXAEM1613 unit is powered on and functionally tested across all 16 analog input channels prior to shipment. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with protective packaging to prevent ESD damage during transit.

Q4: Can the TSXAEM1613 be used as a direct replacement without reprogramming the PLC application?
Yes. As an original Schneider Electric module, the TSXAEM1613 is recognized automatically by the TSX Premium CPU. No changes to the PL7 Pro or Unity Pro application program are required for a like-for-like replacement, provided the rack slot assignment remains the same. Channel configuration parameters stored in the CPU are retained and applied to the replacement module on the next power cycle.
