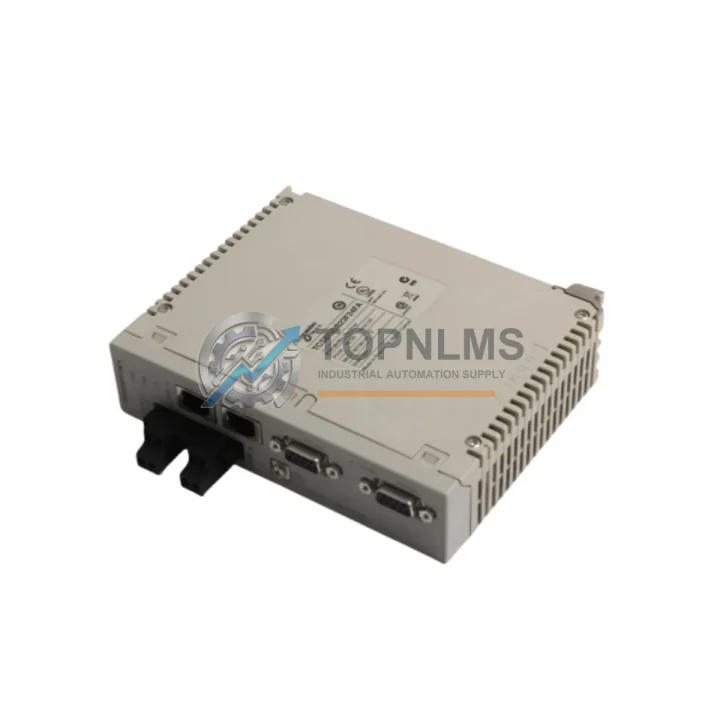

Schneider Electric TCSEGDB23F24FA Ruggedized Gateway Module for Harsh Environments

Product Overview

Schneider Electric TCSEGDB23F24FA Ruggedized Gateway Module for Harsh Environments

The Schneider Electric TCSEGDB23F24FA is a Quantum Series Modbus Plus to Ethernet Proxy Gateway Module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed to bridge legacy Modbus Plus field networks with modern Ethernet TCP/IP infrastructure, this module delivers deterministic communication performance even under conditions of elevated temperature, high humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in oil and gas processing, power generation, mining, water treatment, metallurgy, and heavy manufacturing.

Built on Schneider Electric’s proven Quantum platform architecture, the TCSEGDB23F24FA integrates seamlessly into existing Quantum PLC backplanes alongside I/O modules, power supply units, and CPU processors such as the 140CPU65160 and 140CPU67160, enabling transparent protocol conversion without disrupting live production cycles. Its rugged industrial-grade housing and conformal-coated PCB provide reliable insulation against corrosive atmospheres and condensation, making it a preferred choice for control engineers who cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Quantum control architecture, the TCSEGDB23F24FA operates as the critical communication bridge between field-level Modbus Plus devices and the plant’s Ethernet supervisory network. It works in concert with Quantum backplane power supply modules such as the 140CPS11420 and 140CPS21400, which deliver stable, filtered DC power to the entire rack — a prerequisite for reliable gateway operation in environments with fluctuating mains voltage or diesel generator power sources common in remote mining and offshore installations.

On the I/O side, discrete and analog I/O modules including the 140DAI74000 digital input module and 140ACI04000 analog input module feed real-time process data through the Modbus Plus network, which the TCSEGDB23F24FA transparently proxies to SCADA and DCS hosts over Ethernet. This architecture eliminates the need for costly network rewiring while preserving the deterministic scan cycle of the Quantum CPU.

For installations requiring enhanced network redundancy, the TCSEGDB23F24FA is frequently deployed alongside the 140NOE77101 Ethernet communication module, providing dual-path Ethernet connectivity to the control room. Safety-critical zones additionally incorporate Schneider Electric 140EHC10500 high-speed counter modules and dedicated safety relay modules to enforce SIL-rated interlock logic, ensuring that gateway communication faults trigger safe-state outputs rather than uncontrolled process shutdowns.

In control cabinet configurations, the TCSEGDB23F24FA is paired with industrial-grade terminal blocks, surge protection devices, and shielded Modbus Plus cables to suppress conducted and radiated EMI from variable frequency drives (VFDs), motor starters, and high-current switching equipment operating in the same enclosure. Proper cable segregation and grounding, combined with the module’s built-in EMC filtering, maintain signal integrity across multi-drop Modbus Plus segments spanning hundreds of meters in large plant layouts.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the TCSEGDB23F24FA enables remote terminal units (RTUs) and wellhead controllers to report production data to central SCADA platforms via Ethernet, while retaining the proven reliability of Modbus Plus at the field level. Its tolerance for wide temperature swings and hydrocarbon-laden atmospheres makes it suitable for both onshore compressor stations and offshore platform control rooms.

In power generation and transmission substations, the module bridges legacy protection relay networks to modern energy management systems (EMS), supporting real-time monitoring of generator output, transformer loading, and busbar protection status. Its EMC compliance is particularly valued in high-voltage switchgear environments where induced transients can disrupt lesser-grade communication hardware.

In mining and mineral processing operations, where conveyor systems, crushers, and ball mills generate continuous mechanical vibration and heavy dust loading, the TCSEGDB23F24FA’s conformal coating and robust backplane mounting ensure sustained communication between distributed motor control centers (MCCs) and the central Quantum PLC system. Rapid fault detection and transparent proxy operation minimize conveyor stoppages and reduce ore processing downtime.

In water and wastewater treatment plants, the module supports remote monitoring of pump stations, chemical dosing systems, and filtration processes across geographically dispersed sites, all connected through a unified Ethernet SCADA backbone while preserving existing Modbus Plus field wiring investments.

In metallurgical and steel production environments, where furnace heat radiation, electromagnetic noise from arc furnaces, and aggressive chemical vapors challenge every piece of control hardware, the TCSEGDB23F24FA’s industrial-grade design provides the communication reliability that continuous casting and rolling mill operations demand.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the TCSEGDB23F24FA?
Every TCSEGDB23F24FA unit shipped by TOPNLMS carries a 12-month quality warranty from the date of delivery. If the module exhibits any functional defect under normal operating conditions within this period, we provide replacement or full technical support at no additional cost. Our warranty commitment reflects our confidence in the quality of every unit we stock and test.

Q2: How is each unit tested before shipment?
All TCSEGDB23F24FA modules undergo pre-shipment functional verification, including power-on self-test, Modbus Plus port continuity check, and Ethernet link negotiation confirmation. Units are inspected for physical integrity, connector condition, and firmware version compatibility before packaging. Test records are retained and available upon request for quality-critical procurement processes.

Q3: Is the TCSEGDB23F24FA compatible with all Quantum PLC configurations?
The TCSEGDB23F24FA is designed for the Schneider Electric Quantum platform and is compatible with standard Quantum backplanes and CPU modules. It supports Modbus Plus multi-drop topologies and Ethernet TCP/IP networks running Modbus TCP. For specific firmware version compatibility or integration with third-party SCADA systems, our technical team can provide pre-sales consultation to confirm suitability for your exact configuration.

Q4: Can TOPNLMS support long-term or repeat supply of the TCSEGDB23F24FA?
Yes. TOPNLMS maintains dedicated inventory of Schneider Electric Quantum series modules, including the TCSEGDB23F24FA, to support both emergency spare part replacement and planned maintenance procurement programs. We offer stable pricing, consistent lead times, and the ability to reserve stock for scheduled plant turnarounds. Contact our team to discuss blanket order arrangements or multi-unit pricing for your maintenance inventory strategy.
