Schneider Electric STBDDO3705 Ruggedized Digital Output Module

Product Overview

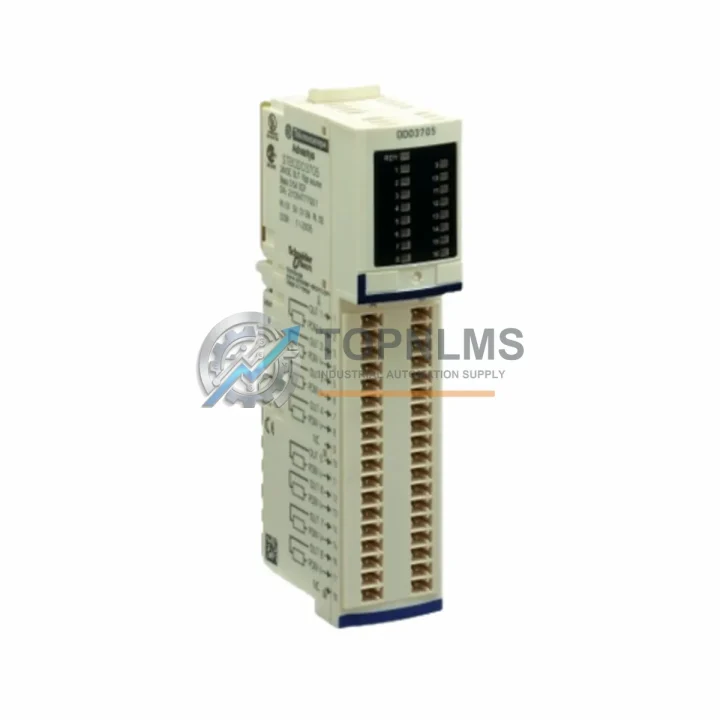

Schneider Electric STBDDO3705 Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The Schneider Electric STBDDO3705 is an 8-channel, 24VDC sourcing digital output module engineered as part of the Advantys STB (Slice Terminal Block) distributed I/O platform. Designed to operate reliably in the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — this module delivers consistent, fault-tolerant digital output control wherever process continuity is non-negotiable.

In continuous production environments such as oil and gas processing plants, underground mining operations, high-voltage power substations, municipal water treatment facilities, metallurgical furnace lines, and heavy-duty manufacturing cells, a single point of I/O failure can cascade into costly unplanned downtime. The STBDDO3705 is purpose-built to prevent exactly that. Its compact DIN-rail-mountable form factor integrates seamlessly into control cabinets alongside Schneider Electric PLCs, safety relays, and power distribution components, maintaining signal integrity even when subjected to the vibration profiles and thermal cycling common in heavy industry.

Rugged Specifications Table

Comprehensive Protection Solutions

The STBDDO3705 does not operate in isolation — it is a critical node within a broader Schneider Electric Advantys STB island architecture. In a typical control cabinet deployment, the module sits alongside the STBNIP2212 or STBNIP2311 Network Interface Module (NIM), which manages fieldbus communication and island-level diagnostics. Power to the island is supplied through the STBPDT3100 power distribution module, ensuring that each I/O slice receives clean, regulated 24VDC even when upstream supply fluctuations occur.

On the input side, the STBDDO3705 is commonly paired with digital input modules such as the STBDDI3725 (8-channel 24VDC sink/source input) to form complete digital I/O islands capable of handling both sensor feedback and actuator control within the same compact footprint. For analog process variables — temperature, pressure, flow — the STBAVI1270 analog voltage input module or the STBACI1230 analog current input module can be added to the same island without requiring additional fieldbus nodes.

In safety-critical zones, the STBDDO3705 is frequently deployed in conjunction with Schneider Electric Preventa XPS safety relay modules and Harmony XPSUAF safety controllers, which monitor emergency stop circuits and machine guarding interlocks. The digital outputs of the STBDDO3705 drive solenoid valves, motor contactors, and pilot lights — all of which must respond deterministically when a safety event is detected. The module’s built-in short-circuit protection and diagnostic feedback via the island bus ensure that any output fault is immediately visible to the host PLC or DCS without requiring manual inspection of the field wiring.

For installations requiring communication redundancy or protocol bridging, the Advantys STB platform supports integration with Modicon M340 and Modicon M580 PLCs via EtherNet/IP or Modbus TCP, making the STBDDO3705 a natural fit for both legacy system upgrades and greenfield automation projects. Terminal block accessories such as the STBXTS2110 wiring system further simplify field installation and reduce commissioning time in large-scale panel builds.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the STBDDO3705 controls wellhead valve actuators, compressor station solenoids, and pipeline isolation valves. Its immunity to the electromagnetic interference generated by variable frequency drives (VFDs) and high-current motor starters — common in pump stations and gas compression skids — ensures that output commands are executed without spurious trips or signal corruption.

In underground mining operations, where conveyor systems, ventilation fans, and ore processing equipment run continuously under heavy vibration and coal dust exposure, the module’s robust construction and DIN-rail mounting provide the mechanical stability required for 24/7 operation. Control cabinets in these environments are typically rated IP54 or higher, and the STBDDO3705’s compact island architecture allows engineers to maximize I/O density within limited enclosure space.

At power generation and transmission substations, the module interfaces with protection relay panels and SCADA systems to control switching equipment, alarm annunciators, and auxiliary power circuits. Its compliance with IEC 61000-4 EMC standards is particularly valuable in high-voltage environments where induced transients and conducted emissions can compromise conventional I/O hardware.

In water and wastewater treatment plants, the STBDDO3705 drives pump motor starters, chemical dosing solenoids, and UV disinfection system contactors. The module’s ability to operate reliably in high-humidity environments — up to 95% RH non-condensing — makes it well-suited for wet process areas where condensation is a persistent concern.

For metallurgical and steel mill applications, where furnace operations generate extreme thermal gradients and heavy electromagnetic noise from arc furnaces and induction heaters, the STBDDO3705 provides the signal isolation and diagnostic transparency needed to maintain process control without interruption.
