Schneider Electric RH924YA FCP280 Upgrade for I/A Series

Product Overview

Schneider Electric RH924YA FCP280 Upgrade for I/A Series: Seamless Transition from Legacy DCS to Modern Field Control

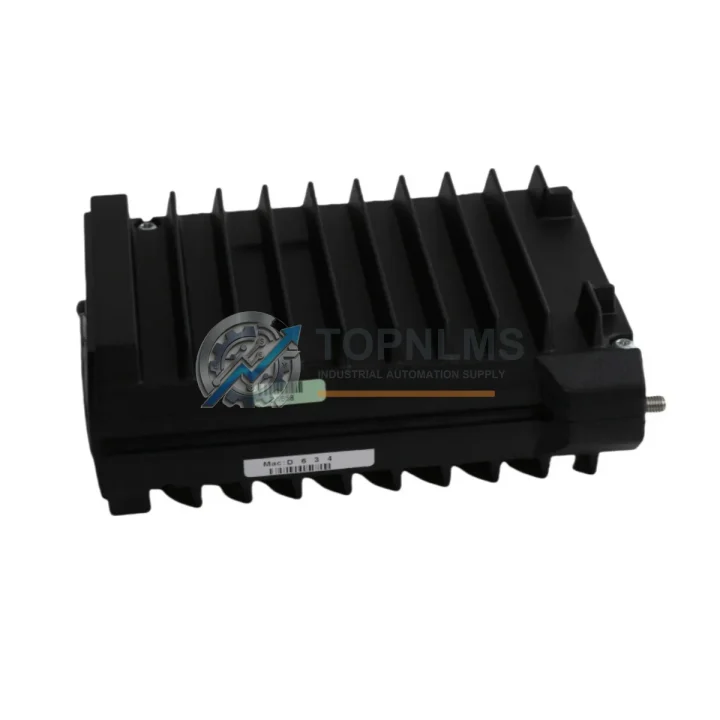

The Schneider Electric RH924YA FCP280 Field Control Processor 280 is a core execution module within the Foxboro I/A Series Distributed Control System (DCS) architecture. As industrial facilities face increasing pressure to maintain uptime while managing aging automation infrastructure, the RH924YA FCP280 has become one of the most sought-after replacement and upgrade components for engineers tasked with modernizing legacy process control environments without full system overhauls.

Whether your plant is running a Foxboro I/A Series system installed in the 1990s or early 2000s, or you are managing a hybrid environment where older CP30, CP40, or CP60 controllers are being phased out in favor of more capable FCP-class processors, the RH924YA FCP280 offers a validated migration path that preserves your existing fieldbus wiring, control strategies, and cabinet footprint. This processor is designed to slot into existing I/A Series Nodebus or Fieldbus Module Enclosures (FMEs) without requiring structural changes to your control room or marshalling cabinets.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Foxboro I/A Series controller to the RH924YA FCP280 rarely involves the processor alone. In practice, field engineers and procurement teams must account for the full control node ecosystem to ensure a smooth cutover with minimal process interruption.

During the upgrade process, the FCP280 typically operates alongside existing Fieldbus Modules such as the FBM201 (analog input), FBM202 (analog output), FBM207 (digital input), and FBM214 (digital output), all of which remain fully compatible without rewiring. If your legacy node was using an FBM04 or FBM08 for thermocouple or RTD inputs, those modules continue to function under the FCP280’s control strategy without modification to the field junction boxes or marshalling panels.

For facilities upgrading communication infrastructure in parallel, the FCP280 supports integration with the Foxboro Nodebus Interface Module (NIM) and is compatible with the standard I/A Series Nodebus coaxial cabling already installed in most plants. If your site is transitioning toward Ethernet-based supervisory connectivity, the FCP280 can coexist with the Foxboro AW70 or AW51 Application Workstations running the standard I/A Series operator interface, preserving your existing HMI investment.

Power distribution within the control cabinet typically relies on the I/A Series Power Supply Module (PSM), which continues to supply the FCP280 at 24 VDC through the existing rack backplane. No external power conditioning is required for the processor swap itself, though sites with aging PSMs may choose to replace the power supply module concurrently to reduce future failure risk.

For sites that require programming cable access during commissioning or post-installation tuning, the standard Foxboro I/A Series RS-232 or Ethernet programming interface remains compatible with the FCP280, allowing your control engineers to use the same I/A Series Control Configurator (ICC) software environment they are already familiar with. No retraining or new software licensing is required for the processor replacement itself.

If your migration scope includes replacing the Fieldbus Module Enclosure (FME) or the Nodebus Termination Assembly (NTA) alongside the FCP280, TOPNLMS can source these components as part of a consolidated procurement package, reducing lead time and simplifying incoming inspection at your facility.

Signal isolators and intrinsic safety barriers installed between the FBMs and field instruments are unaffected by the FCP280 upgrade, as the processor change occurs entirely within the control node — upstream of the fieldbus segment. This means your existing Pepperl+Fuchs or MTL isolator assemblies, terminal blocks, and cable schedules remain valid without revision.

Retrofit Guidance FAQ

Q: Do I need to rewire any field cables when replacing a CP40 or FCP10 with the RH924YA FCP280?
No. The FCP280 connects to the same Fieldbus Module Enclosure and uses the same Nodebus or Fieldbus H1 wiring. Field cables, junction boxes, and marshalling panels are unaffected. The swap is confined to the processor slot in the rack.

Q: Can I reuse my existing control database and function block programs?
Yes. The FCP280 uses the same I/A Series Control Configurator (ICC) environment. Existing compound and block configurations can be downloaded directly to the FCP280 after the hardware swap. Minor revision may be required if upgrading from a very early CP-series processor with deprecated block types, but the vast majority of standard PID, ratio, and sequence blocks are fully portable.

Q: What communication protocols does the FCP280 support?
The FCP280 operates natively on the Foxboro Nodebus and supports FOUNDATION Fieldbus H1 through compatible FBMs. It also supports Modbus RTU via appropriate FBM gateway modules, enabling integration with third-party drives, analyzers, and smart instruments already installed in the plant.

Q: Will the FCP280 fit in my existing Fieldbus Module Enclosure without cabinet modification?
Yes. The RH924YA FCP280 occupies a standard I/A Series processor slot. No additional DIN rail, mounting bracket, or enclosure modification is required. The physical dimensions and connector pinout are consistent with the I/A Series rack standard.

Q: How do I handle the cutover to minimize process downtime?
The recommended approach is to pre-configure the FCP280 offline using a spare rack or bench test setup, download the control database, verify block execution offline, then perform a hot-swap during a planned maintenance window. For redundant FCP configurations, the standby processor can be replaced first, followed by a controlled switchover, allowing the primary process to remain in automatic control throughout the procedure.

Q: Is the FCP280 compatible with older Foxboro DCS versions running I/A Series software v6.x or v7.x?
Compatibility depends on the specific software revision and hardware revision of the FCP280 unit. TOPNLMS provides hardware revision documentation with each unit shipped. We recommend confirming your I/A Series software version prior to ordering so we can match the appropriate hardware revision to your system.

Warranty Assurance

Every Schneider Electric RH924YA FCP280 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process that includes power-on testing, communication interface checks, and visual inspection for component integrity. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a confirmed hardware failure within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with express international shipping available to minimize your plant’s exposure to unplanned downtime.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and certificate of conformance upon request. We support standard industrial procurement terms and can accommodate purchase order requirements from EPC contractors, MRO distributors, and end-user facilities directly.

Our inventory of RH924YA FCP280 units is maintained as a stocked line item, not a spot-buy, which means lead times are predictable and we can support both single-unit emergency replacements and multi-unit planned maintenance orders from the same stock pool.
