Honeywell FC-BKM-0001 V1.0 Replacement for Experion PKS

Product Overview

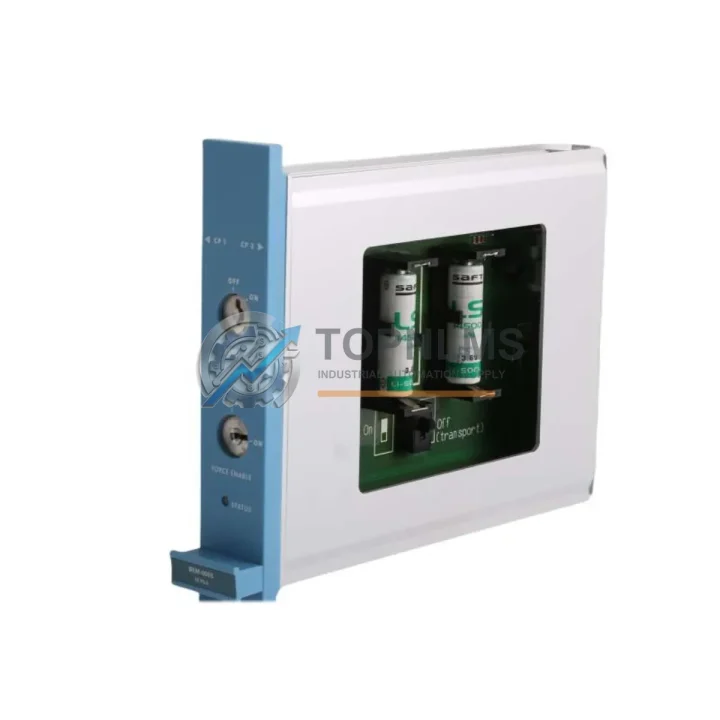

Honeywell FC-BKM-0001 V1.0 Replacement for Experion PKS: Seamless DCS Migration & Upgrade

When your Honeywell Experion PKS distributed control system requires a Battery & Key Switch Module replacement, sourcing a verified, drop-in compatible unit is critical to minimizing plant downtime. The Honeywell FC-BKM-0001 V1.0 is a factory-specification Battery & Key Switch Module designed for the Experion PKS platform — one of the most widely deployed DCS architectures in refining, petrochemical, power generation, and continuous process industries worldwide. Whether you are replacing a failed unit, building a critical spare inventory, or executing a planned control system modernization, this module delivers the exact electrical interface, physical form factor, and firmware compatibility required for a smooth, low-risk transition.

Many facilities operating legacy Honeywell TDC 3000, PlantScape, or early-generation Experion R100–R300 systems are now migrating to Experion PKS R400 and above. During this migration, the FC-BKM-0001 V1.0 plays a pivotal role: it maintains battery-backed memory integrity and key-switch security state across controller chassis, ensuring that critical process data and program logic are preserved even during power interruptions or controller switchover events. Engineers executing these migrations frequently encounter the need to replace or upgrade this module alongside other Experion PKS components such as the C300 Process Controller, the FC-SDIL-0001 Series D I/O Link Interface Module, and the CC-PAIX01 Analog Input Module — all of which share the same Series C/D chassis backplane and power distribution architecture.

From a wiring compatibility standpoint, the FC-BKM-0001 V1.0 connects directly to the controller chassis backplane without field wiring, eliminating the risk of terminal block re-termination errors that are common when replacing older TDC 3000 battery modules. The module’s key-switch interface is fully compatible with existing Experion PKS cabinet door interlock wiring, meaning no panel rewiring is required during a like-for-like replacement. For facilities upgrading from PlantScape to Experion PKS, the physical mounting dimensions and backplane connector pinout are identical, allowing direct installation into existing Series C controller racks without mechanical modification.

On the communications and system architecture side, the FC-BKM-0001 V1.0 operates transparently within the Experion PKS FTE (Fault Tolerant Ethernet) network topology. It does not require independent IP addressing or configuration within Experion Configuration Studio, which significantly reduces commissioning time during a live plant migration. System integrators performing phased migrations — where legacy TDC 3000 UCN (Universal Control Network) nodes are being progressively replaced with Experion PKS C300 controllers — can install and verify this module without interrupting adjacent control loops, provided the chassis is in the correct key-switch position. This is particularly important in facilities where the FC-CMNB-0001 Control Module Network Bridge is used to maintain UCN-to-FTE communication continuity during the transition period.

Power supply compatibility is another key consideration for migration projects. The FC-BKM-0001 V1.0 is designed to operate with the standard Experion PKS 24 VDC chassis power supply, including the FC-PSU-0001 Power Supply Module and its redundant pair configurations. Facilities that are simultaneously upgrading their control room UPS infrastructure will find that the module’s battery backup circuit is compatible with standard 24 VDC VRLA battery packs, and the key-switch logic operates independently of the UPS state — an important detail for sites where power system upgrades and DCS migrations are being executed in parallel.

For control cabinet space planning, the FC-BKM-0001 V1.0 occupies a single slot in the Experion PKS Series C/D controller chassis. In retrofit projects where existing cabinets are being repurposed from TDC 3000 to Experion PKS, this single-slot footprint is a significant advantage, as it preserves rack space for additional I/O modules such as the CC-TDIL01 Series D I/O Link Module or communication interface cards. Cabinet thermal management is unaffected, as the module’s power consumption is within the standard chassis budget.

From a spare parts and inventory management perspective, the FC-BKM-0001 V1.0 is a high-priority critical spare for any facility running Experion PKS. Its role in maintaining controller memory integrity means that an unplanned failure without a spare on hand can result in extended unplanned downtime while a replacement is sourced. Procurement teams managing DCS lifecycle programs are advised to maintain at least one unit per controller chassis as a minimum spare holding. All units shipped by TOPNLMS are subject to pre-shipment functional verification, including battery circuit continuity testing and key-switch mechanism inspection, and are accompanied by a 12-month warranty covering manufacturing defects and functional failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Experion PKS migration rarely involves a single module replacement. In practice, the FC-BKM-0001 V1.0 is most commonly deployed alongside a coordinated set of platform components. The C300 Process Controller is the primary controller unit that the FC-BKM-0001 V1.0 supports, and in most migration projects, both are replaced or upgraded simultaneously to ensure firmware version alignment. The FC-SDIL-0001 Series D I/O Link Interface Module provides the critical bridge between the C300 controller and field I/O termination assemblies, and its replacement is often scheduled in the same maintenance window as the battery key switch module to minimize the number of controller restarts required.

On the I/O side, facilities migrating from TDC 3000 will typically also be replacing legacy I/O cards with Experion PKS-compatible modules such as the CC-PAIX01 Analog Input Module and the CC-PDOB01 Digital Output Module, both of which connect to the Series D I/O Link and share the same termination assembly form factor. The CC-TDIL01 Series D I/O Link Module is another common co-replacement item, particularly in large-scale migrations where multiple I/O subsystems are being consolidated onto a single Experion PKS FTE network segment.

For facilities that require continued communication with legacy UCN devices during a phased migration, the FC-CMNB-0001 Control Module Network Bridge is an essential transitional component, allowing the new Experion PKS C300 controllers to exchange data with remaining TDC 3000 nodes without requiring a full cutover. Power infrastructure upgrades typically include the FC-PSU-0001 Power Supply Module in redundant pair configuration, ensuring that the new controller chassis meets the availability requirements of continuous process operations. Finally, engineering teams executing these migrations will require a compatible Experion PKS programming cable and configuration workstation running Experion Configuration Studio to perform controller downloads, I/O checkout, and loop verification after installation.

Retrofit Guidance FAQ

Q: Can the FC-BKM-0001 V1.0 be installed in a live Experion PKS chassis without a full controller shutdown?
A: The FC-BKM-0001 V1.0 is not hot-swappable. A controlled controller shutdown with the key switch in the correct position is required prior to module removal and installation. Always follow Honeywell’s documented maintenance procedures and ensure the redundant controller (if present) has assumed control before proceeding.

Q: Is the wiring from the existing TDC 3000 battery module reusable?
A: No field wiring is required for the FC-BKM-0001 V1.0, as the battery circuit is integrated into the backplane. Legacy TDC 3000 battery wiring to external battery packs is not applicable to this module and should be properly terminated and labeled during the migration.

Q: Does the FC-BKM-0001 V1.0 require configuration in Experion Configuration Studio?
A: No. The module is auto-detected by the Experion PKS system upon controller startup. No manual configuration, IP addressing, or firmware download is required for the battery and key switch functions.

Q: What communication protocols does this module support?
A: The FC-BKM-0001 V1.0 operates on the Experion PKS FTE (Fault Tolerant Ethernet) backplane architecture. It does not independently participate in Modbus, PROFIBUS, HART, or OPC-UA communications — those functions are handled by dedicated I/O and communication modules within the same chassis.

Q: How much physical space does this module require in the controller cabinet?
A: The module occupies a single slot in the Experion PKS Series C/D controller chassis. No additional DIN rail space, terminal blocks, or external enclosures are required.

Q: Can this module be used as a direct replacement for a failed unit without re-engineering the control program?
A: Yes. As a like-for-like hardware replacement within the Experion PKS platform, no changes to the control strategy, function block configuration, or I/O assignments are required. The replacement module will assume the same operational role as the failed unit upon controller restart.

Q: What testing is performed before shipment?
A: All FC-BKM-0001 V1.0 units undergo pre-shipment functional verification including battery circuit continuity testing, key-switch mechanism inspection, and visual inspection for physical damage. Units are shipped in anti-static packaging with appropriate cushioning for international freight.

Warranty Assurance

Every Honeywell FC-BKM-0001 V1.0 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and any discrepancy between the shipped unit and the confirmed order specification. In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund, subject to return of the defective module and confirmation of the failure mode.

Pre-shipment inspection is conducted on every unit, including battery circuit continuity verification, key-switch actuation testing, backplane connector inspection, and firmware version confirmation where applicable. Units are shipped with a test report summary and are packaged in ESD-safe materials with double-wall carton protection suitable for international air and sea freight.

TOPNLMS maintains stock of critical Experion PKS spare parts to support rapid dispatch. Standard orders are processed within 1–3 business days, with express shipping options available for urgent plant maintenance requirements. Our technical team is available to assist with part number verification, compatibility confirmation, and migration planning prior to purchase.
