Schneider Electric MA-0185-100 Ruggedized Coaxial Line Tap

Product Overview

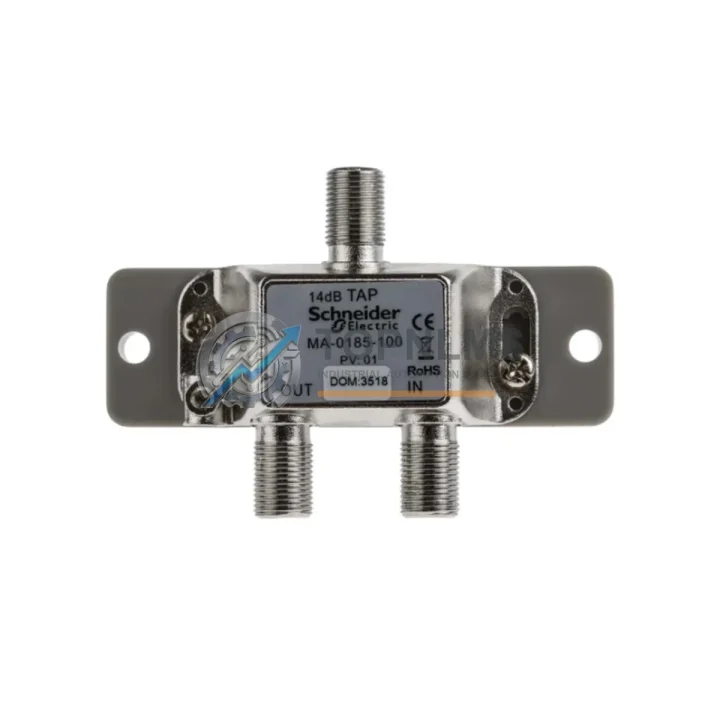

Schneider Electric MA-0185-100 Ruggedized Coaxial Line Tap for Harsh Industrial Environments

The Schneider Electric MA-0185-100 is a ruggedized coaxial line tap connector engineered for the Modicon Modbus Plus peer-to-peer industrial network. Designed to operate reliably in the most demanding plant-floor conditions — including high ambient temperatures, elevated humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference — this component is a critical link in any Modbus Plus trunk cable segment. Whether deployed in a continuous-process petrochemical facility, a high-cycle automotive stamping line, or a heavy-duty mining control room, the MA-0185-100 maintains signal integrity and network availability where lesser connectors fail.

Modbus Plus is a deterministic, token-passing fieldbus protocol that underpins thousands of legacy and active Schneider Electric Modicon PLC installations worldwide. The MA-0185-100 provides the physical-layer tap point that allows a Modicon controller — such as a Modicon 984, Quantum 140CPU, or Premium TSX57 series PLC — to join the Modbus Plus trunk without interrupting the main coaxial cable run. Its robust coaxial coupling mechanism resists loosening under vibration loads common in compressor rooms, rolling mills, and heavy press lines, ensuring that the network token continues to circulate without dropout or collision errors.

In high-EMI environments such as variable-frequency drive (VFD) motor control centers, arc furnace control rooms, and high-voltage switchgear bays, the shielded coaxial architecture of the Modbus Plus network — anchored by properly installed MA-0185-100 line taps — provides inherent noise rejection that protects PLC scan cycles and I/O update rates. This is especially important when the Modbus Plus segment is sharing a control cabinet with Schneider Electric ATV61 or ATV71 variable speed drives, TeSys D or TeSys K motor starters, or Zelio Logic smart relays, all of which can generate significant conducted and radiated EMI.

The MA-0185-100 is equally at home in distributed control architectures. When a Modbus Plus segment spans multiple control panels — connecting a Modicon Quantum 140NOE77100 Ethernet bridge module at one end to remote Modicon STB island bus distributed I/O drops at the other — each intermediate tap point must maintain consistent impedance matching and mechanical stability. The MA-0185-100 is factory-specified to meet these requirements, preserving the 1 Mbit/s data rate and the 500-meter maximum segment length defined in the Modbus Plus specification.

For safety-critical applications, the integrity of the physical network layer is a prerequisite for the correct operation of higher-level safety functions. In installations where Schneider Electric Preventa XPSMC or XPSMCM safety controllers communicate status and diagnostics over a Modbus Plus backbone, a degraded or intermittent tap connection can mask fault conditions and delay protective shutdowns. Replacing aged or damaged line taps with genuine MA-0185-100 units is therefore a recognized preventive maintenance practice in IEC 62061 and ISO 13849 compliant machine safety programs.

Beyond the Modbus Plus network itself, the MA-0185-100 supports the broader control system ecosystem. In a typical Modicon-based control cabinet, the Modbus Plus segment may also carry communications to Schneider Electric PowerLogic PM800 series power meters for energy monitoring, to Modicon TSX SCY 21601 serial communication modules bridging legacy JBUS/Modbus RTU devices, and to Schneider Electric Advantys STB NIP 2212 network interface modules serving pneumatic valve islands. Each of these nodes depends on a reliable physical tap connection, making the MA-0185-100 a foundational spare part for any site running Modicon automation infrastructure.

At TOPNLMS, every MA-0185-100 unit is sourced from authorized distribution channels or directly from decommissioned OEM equipment, inspected for physical integrity, and function-tested prior to dispatch. Units are shipped with full electrostatic discharge (ESD) protection packaging and are accompanied by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Typical lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express air freight options available for urgent plant breakdowns.

Rugged Specifications Table

Comprehensive Protection Solutions

The MA-0185-100 line tap is most effective when deployed as part of a fully engineered Modbus Plus network segment. A properly terminated segment begins with a Modicon SA-0185-001 Modbus Plus trunk cable and ends with MA-0185-002 termination resistor plugs at each cable end — without correct termination, reflections degrade signal quality across all connected nodes. Each node on the segment, whether a Modicon Quantum 140NOE77100 network option module, a Modicon Momentum 171CCC96030 communication adapter, or a Modicon Premium TSXMBP100 Modbus Plus PCMCIA card, connects to the trunk via its own MA-0185-100 tap.

In the power distribution layer of the same control cabinet, Schneider Electric Phaseo ABL8 24 VDC power supplies provide the stable, low-ripple DC bus that Modicon CPUs and communication modules require for deterministic scan performance. Upstream, Schneider Electric Acti9 iC60N circuit breakers protect each panel feed, while Schneider Electric Zelio RSB general-purpose relay modules handle discrete output switching without injecting noise onto the Modbus Plus segment. For motor control, Schneider Electric TeSys D LC1D contactors paired with LR2D thermal overload relays provide coordinated motor protection that can be monitored and controlled via the Modbus Plus network, closing the loop between field device status and PLC logic.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, Modicon Quantum PLCs managing wellhead control panels, pipeline SCADA RTUs, and compressor station automation rely on Modbus Plus as the primary inter-controller communication backbone. The MA-0185-100 line tap must withstand the wide ambient temperature swings, salt-laden air, and persistent vibration from reciprocating compressors that characterize these sites. A single failed tap can isolate a remote I/O drop or a safety shutdown system node, triggering an unplanned production halt.

In mining and mineral processing, Modicon-based conveyor drive control systems, crusher automation panels, and flotation cell controllers operate in environments with extreme dust loading, high humidity from wet processing, and ground-borne vibration from blasting and heavy mobile equipment. The coaxial shielding of the Modbus Plus network, maintained by correctly installed MA-0185-100 taps, provides the EMI immunity needed to sustain reliable communications between the surface control room and underground or pit-floor control panels.

In power generation and electrical utilities, Modicon PLCs supervising turbine auxiliary systems, transformer cooling controls, and switchyard interlocking schemes demand network components rated for continuous duty in high-voltage proximity. The MA-0185-100 supports these applications by maintaining signal integrity in environments where induced voltages and magnetic fields from large power transformers and bus bars would corrupt unshielded fieldbus wiring.

In water and wastewater treatment facilities, Modicon automation systems controlling pump stations, chemical dosing skids, and clarifier drives benefit from the corrosion-resistant construction of Modbus Plus coaxial components. The MA-0185-100 maintains connectivity in humid, chemically aggressive atmospheres where connector oxidation is a common cause of intermittent network faults.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers functional failure of the MA-0185-100 under normal operating conditions from the date of dispatch. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after the returned item is inspected. Contact [email protected] with your order number and a brief fault description to initiate a claim. Typical resolution time is 5–7 business days including return logistics.

Q2: How is each unit tested before shipment?
Every MA-0185-100 unit undergoes a pre-shipment inspection covering physical connector integrity, coaxial coupling mechanism function, and shield continuity. Units sourced from decommissioned equipment are additionally cleaned, re-inspected under magnification, and verified against Schneider Electric dimensional and electrical specifications before being accepted into stock. Units that do not pass inspection are quarantined and not sold.

Q3: Is the MA-0185-100 compatible with all Modicon Modbus Plus controllers and I/O platforms?
Yes. The MA-0185-100 is the standard Schneider Electric / Modicon line tap for all Modbus Plus trunk cable segments and is compatible with every Modicon controller and I/O platform that supports the Modbus Plus physical layer, including the Modicon 984, Quantum 140-series, Premium TSX57-series, and Momentum 171-series families. It is not compatible with Modbus RTU (RS-485) or Modbus TCP/IP (Ethernet) networks, which use different physical media.

Q4: Can TOPNLMS support long-term or repeat procurement of the MA-0185-100 for planned maintenance programs?
Yes. TOPNLMS maintains standing stock of Modicon Modbus Plus network components including the MA-0185-100 and can support blanket purchase orders, scheduled releases, and consignment arrangements for customers with ongoing preventive maintenance or capital spares programs. Contact [email protected] or call +86 18359293191 to discuss volume pricing and supply agreements.
