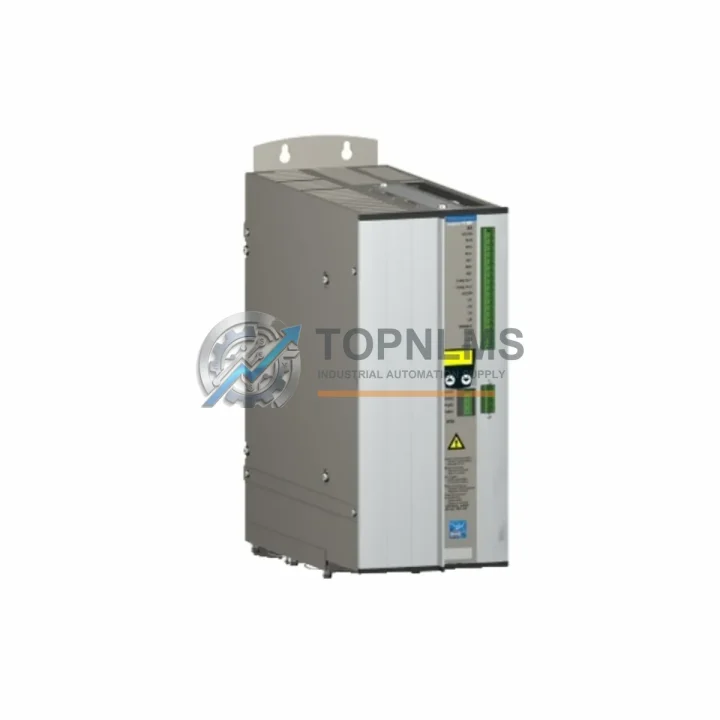

Schneider Electric LXM15MD40N4 Ruggedized AC Servo Drive

Product Overview

Schneider Electric LXM15MD40N4 Ruggedized AC Servo Drive: Industrial Resilience for Harsh Environments

The Schneider Electric LXM15MD40N4 is a high-performance AC servo drive from the Lexium 15 series, engineered to deliver precise motion control under the most demanding industrial conditions. Rated at 4 kW with a 3-phase 400 V input, this drive is purpose-built for continuous-duty applications where thermal stability, electromagnetic immunity, and mechanical robustness are non-negotiable. Whether deployed in a sealed control cabinet on a steel mill floor, a dusty cement plant, or a vibration-intensive offshore platform, the LXM15MD40N4 maintains servo loop integrity and axis positioning accuracy without compromise.

Schneider Electric’s Lexium 15 platform is designed around the principle that motion control must remain deterministic even when the surrounding environment is not. The LXM15MD40N4 achieves this through a reinforced power stage, wide-range input filtering, and a thermally optimized heatsink profile that sustains rated output across an ambient operating range of 0 °C to 45 °C — extendable with derating to 55 °C. Its IP20-rated enclosure, combined with conformal-coated PCBs as standard, provides a meaningful first line of defense against condensation, airborne particulates, and corrosive atmospheres typical of chemical processing and water treatment facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The LXM15MD40N4 is rarely deployed in isolation. In a fully integrated Schneider Electric motion architecture, it operates alongside the LXM15MD28N4 (2.8 kW variant) and LXM15MD75N4 (7.5 kW variant) to form a scalable multi-axis servo system within a single control cabinet. The drive interfaces directly with BSH servo motors from the Lexium BSH series, which share the same encoder protocol and thermal class, ensuring seamless closed-loop tuning without third-party compatibility risk.

On the control side, the LXM15MD40N4 is typically commanded by a Modicon M340 or Modicon M580 PLC via CANopen or Ethernet/IP, with motion function blocks executed through Unity Pro or EcoStruxure Machine Expert. In safety-critical lines, the drive’s integrated STO (Safe Torque Off) function connects directly to a Preventa XPS-MC safety relay or a Modicon M580 Safety CPU, enabling IEC 62061 SIL 2 compliance without external contactors — reducing panel wiring complexity and improving response time in emergency stop scenarios.

Power quality upstream of the drive is managed by a Schneider Electric ATV312 or dedicated line reactor, which suppresses harmonic distortion and protects the LXM15MD40N4’s rectifier bridge from voltage spikes common in heavy industrial grids. For distributed I/O, the TM3 expansion modules connected to the Modicon PLC handle analog feedback from position sensors, temperature transmitters, and pressure transducers — all feeding into the same EcoStruxure supervisory layer that monitors the servo axis in real time.

In cabinet builds where space is constrained, the LXM15MD40N4 is mounted alongside Schneider Electric Zelio Logic smart relays for auxiliary control tasks, BMXCPS2000 power supply modules for the Modicon backplane, and VW3A3616 CANopen communication cards where fieldbus topology requires daisy-chain extension. Terminal connections are managed through Linergy TR terminal blocks, which provide vibration-resistant clamping suitable for the shock loads encountered in mining conveyors and press lines.

Application in Critical Infrastructure

The LXM15MD40N4 has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

In oil and gas upstream and midstream facilities, the drive controls pump jack positioning systems and valve actuators in classified hazardous areas, installed within Ex-rated enclosures that meet ATEX Zone 2 requirements. Its STO function satisfies process safety management (PSM) requirements under OSHA 1910.119, allowing the servo axis to be de-energized without full system shutdown during maintenance windows.

In mining and mineral processing, the LXM15MD40N4 drives conveyor positioning heads, crusher feed gates, and flotation cell agitators. The drive’s vibration immunity — validated to IEC 60068-2-6 — ensures that the servo loop remains stable even when mounted in proximity to jaw crushers or ball mills generating continuous broadband vibration. Conformal coating prevents sulfur-bearing dust from bridging PCB traces, a failure mode that has historically caused premature drive failures in uncoated units.

In power generation and transmission substations, the drive is used for turbine blade pitch control and transformer tap-changer positioning, where positioning repeatability of ±1 encoder count is required over thousands of daily cycles. The drive’s wide-temperature storage specification (−25 °C to +70 °C) makes it suitable for outdoor switchgear rooms in northern climates without additional climate control.

In water and wastewater treatment plants, the LXM15MD40N4 controls dosing pump servo axes and sluice gate actuators in high-humidity environments where condensation is a persistent risk. The combination of conformal-coated PCBs and sealed cable entry points allows the drive to operate reliably in pump rooms where ambient humidity regularly exceeds 85% RH.

In metallurgy and steel production, the drive is integrated into rolling mill positioning systems and ladle transfer car drives, where it must sustain rated torque output despite radiated heat from furnace zones and conducted EMI from large thyristor rectifiers. The LXM15MD40N4’s IEC 61800-3 C3 EMC immunity rating is specifically validated for this class of industrial electromagnetic environment.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every LXM15MD40N4 unit shipped by TOPNLMS undergoes a multi-stage inspection protocol: visual inspection for physical damage, power-on functional test verifying DC bus charge, gate drive signals, and encoder interface continuity, followed by a load simulation test confirming rated current output. The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of delivery. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from our Xiamen warehouse upon fault confirmation.

Q2: Is this unit compatible with my existing Lexium 15 servo motor and Modicon PLC setup?
Yes. The LXM15MD40N4 is fully compatible with all BSH and BSP series servo motors rated for the Lexium 15 platform, including SinCos, Hiperface, and EnDat encoder variants. It communicates natively with Modicon M340, M580, and Premium PLCs via CANopen or Modbus RTU without requiring firmware modification. If you are integrating into an existing multi-axis system, the drive’s CANopen node address is configurable via front-panel DIP switches, allowing drop-in replacement without rewiring the fieldbus segment.

Q3: Can this drive be used as a direct replacement for a failed unit on a live production line?
The LXM15MD40N4 is designed for direct field replacement. Parameter sets can be uploaded from a functioning drive using the SoMove configuration tool and downloaded to the replacement unit in under five minutes, restoring all tuning parameters, motion profiles, and I/O mappings. TOPNLMS maintains buffer stock of this model to support emergency replacement orders, with same-day dispatch available for orders confirmed before 14:00 CST. For critical production lines, we recommend maintaining at least one spare unit on-site given the drive’s role in continuous-process applications.

Q4: What is your long-term supply commitment for this model, and can you source discontinued or end-of-life variants?
TOPNLMS maintains an active procurement network for Schneider Electric Lexium 15 series components, including models that have transitioned to limited availability or end-of-life status. We source from authorized distribution channels and verified secondary market suppliers, with each unit subject to the same pre-shipment inspection protocol regardless of source. For customers requiring long-term supply agreements covering multiple units per quarter, we offer reserved inventory arrangements with fixed pricing valid for up to 12 months. Contact our technical sales team to discuss volume requirements and lead time commitments.
