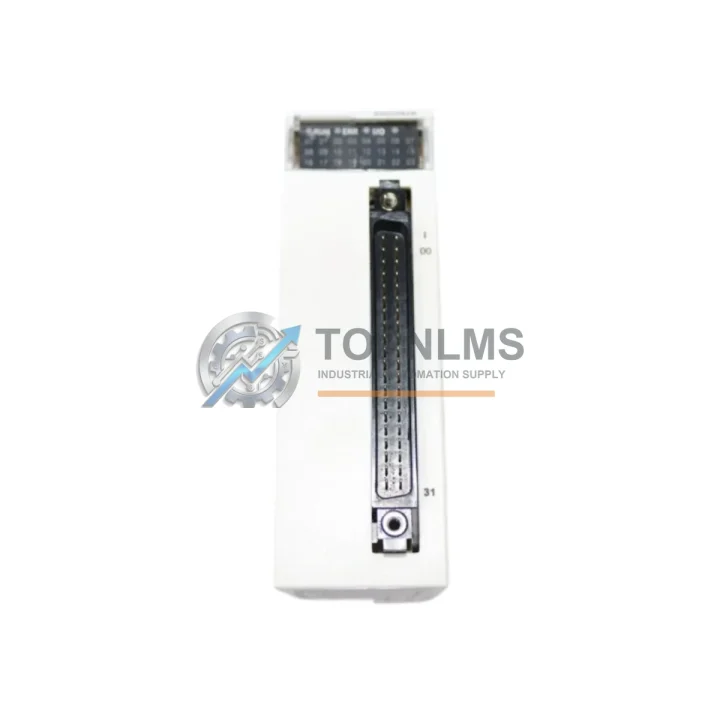

Schneider Electric BMXDDI3202K Ruggedized Digital Input Module for Harsh Environments

Product Overview

Schneider Electric BMXDDI3202K Ruggedized Digital Input Module for Harsh Environments

The Schneider Electric BMXDDI3202K is a 32-channel, 24VDC digital input module engineered for the Modicon M340 programmable automation controller platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining galleries, vibration-intensive heavy machinery bays, and zones with severe electromagnetic interference — this module delivers the signal integrity and operational continuity that mission-critical automation systems require.

Built to IEC 61131-2 standards for PLC input modules, the BMXDDI3202K integrates seamlessly into the Modicon M340 backplane via the BMX bus, providing deterministic 24VDC discrete signal acquisition across all 32 channels simultaneously. Its robust hardware filtering and optical isolation architecture suppress transient noise and ground loops that are endemic to industrial power environments, ensuring that field signals from proximity sensors, limit switches, push-buttons, and safety interlocks are captured accurately — even when variable frequency drives, large motor starters, or high-current welding equipment operate in close proximity.

For facilities running continuous production lines — petrochemical plants, offshore platforms, underground mines, power generation stations, water treatment works, and steel mills — unplanned downtime caused by a failed I/O module is unacceptable. The BMXDDI3202K addresses this risk through its hot-swap-compatible form factor within the M340 rack, allowing maintenance teams to replace the module during scheduled windows without powering down the entire rack. Paired with a Modicon M340 CPU such as the BMX P34 2020 or BMX P34 2030, and supported by a BMX CPS 2000 or BMX CPS 3500 power supply module, the system maintains full availability even under demanding load cycles.

In distributed control architectures, the BMXDDI3202K works in concert with Modicon M340 communication modules — including the BMX NOE 0100 Ethernet module and the BMX NOM 0200 serial communications module — to relay field status data upstream to SCADA systems, DCS historians, or MES platforms via Modbus TCP/IP or Modbus RTU protocols. This interoperability makes it a natural fit for hybrid control architectures where legacy serial networks coexist with modern Ethernet-based supervisory layers.

When specifying spare parts for a Modicon M340 control cabinet, procurement engineers frequently source the BMXDDI3202K alongside complementary modules: the BMXDDO3202K 32-channel digital output module for symmetric I/O expansion, the BMXAMI0810 8-channel analog input module for process variable monitoring, the BMXAMO0410 4-channel analog output module for control signal generation, and the BMXDAI1602 16-channel 100–120VAC digital input module for legacy field devices. Together, these modules form a complete, validated I/O subsystem within a single M340 rack, reducing integration risk and simplifying spare-parts inventory management.

In safety-instrumented system (SIS) adjacent applications — where the BMXDDI3202K feeds discrete status signals into a safety PLC or a Modicon M580 Safety CPU — signal fidelity is paramount. The module’s per-channel LED diagnostics enable field technicians to verify wiring continuity and signal state without connecting a laptop or programming terminal, accelerating fault isolation in time-sensitive situations. This diagnostic transparency is equally valuable during commissioning of new production lines, where hundreds of field terminations must be verified before first start-up.

The BMXDDI3202K is also a proven replacement module for aging Modicon Quantum and Premium I/O systems being migrated to the M340 platform, offering a cost-effective modernization path without requiring full cabinet redesigns. Its compact single-slot form factor and standard BMX connector pinout simplify panel retrofits, and its compatibility with Unity Pro XL and EcoStruxure Control Expert programming environments means existing function block libraries and I/O mapping tables can be reused with minimal rework.

Rugged Specifications Table

Comprehensive Protection Solutions

A resilient Modicon M340 control system is built from a carefully matched set of components, and the BMXDDI3202K is most effective when deployed as part of a validated system architecture. In a typical control cabinet serving a continuous process line, the module sits alongside the BMX P34 2020 CPU, which handles ladder logic execution and Modbus TCP/IP communications, and the BMX CPS 2000 24VDC power supply module, which provides regulated, noise-filtered power to the entire rack. For applications requiring analog process variable monitoring — such as pressure, temperature, or flow — the BMXAMI0810 8-channel analog input module complements the BMXDDI3202K’s discrete signal acquisition capability within the same rack.

Where the control system must interface with variable frequency drives, motor protection relays, or soft starters, the BMXDDO3202K 32-channel digital output module provides the corresponding command signals, forming a symmetric I/O pair with the BMXDDI3202K. In installations where field devices operate on 100–120VAC rather than 24VDC — common in older North American and Japanese industrial facilities — the BMXDAI1602 16-channel AC digital input module handles those signals, while the BMXDDI3202K manages the 24VDC sensor network. For serial communications to legacy field instruments or remote I/O drops, the BMX NOM 0200 serial communications module extends the M340’s connectivity without requiring a full network infrastructure upgrade.

In safety-critical zones, the BMXDDI3202K feeds discrete status signals — emergency stop states, valve position feedback, pressure switch trips — into the control logic, where they can be cross-referenced with outputs from Modicon safety relay modules or third-party safety PLCs. This layered approach to signal management supports functional safety architectures aligned with IEC 61508 and IEC 62061 requirements, providing the defense-in-depth that oil and gas, chemical, and power generation operators demand.

Application in Critical Infrastructure

The BMXDDI3202K has established a strong track record across the full spectrum of heavy industry and critical infrastructure applications. In upstream oil and gas facilities — wellhead control panels, gas compression stations, and pipeline SCADA outstations — the module’s optical isolation and EMI filtering protect signal integrity against the high-frequency noise generated by variable speed pumps and gas turbine generators. In underground coal and metal mines, where ambient temperatures fluctuate widely and fine particulate contamination is constant, the module’s sealed connector design and wide operating temperature range ensure continuous operation without the signal degradation that affects less robust alternatives.

Power generation plants — whether coal-fired, gas turbine, hydroelectric, or nuclear auxiliary systems — rely on the BMXDDI3202K to monitor breaker status, valve positions, and interlock states across distributed control cabinets. Its deterministic scan time and backplane bus architecture ensure that status changes are captured and processed within the CPU’s scan cycle, supporting the fast response times required by turbine protection and load-shedding logic. In municipal water treatment and wastewater facilities, the module monitors pump run/fault signals, level switch states, and chemical dosing interlock conditions across multiple process trains, providing the operators with a complete real-time picture of plant status.

Steel mills and aluminum smelters present some of the harshest electrical environments in industry, with large DC rectifiers, arc furnaces, and overhead cranes generating continuous electromagnetic interference. The BMXDDI3202K’s IEC 61000-4 compliant EMC design allows it to operate reliably in these environments, maintaining signal accuracy for rolling mill position feedback, furnace door interlock monitoring, and crane limit switch supervision. In all these applications, the module’s per-channel LED diagnostics and Unity Pro XL diagnostic function blocks allow maintenance engineers to pinpoint faults rapidly, minimizing mean time to repair and supporting the high-availability targets that modern industrial operations demand.

Security & Quality FAQ

Q1: What warranty coverage is provided with the BMXDDI3202K?
Every BMXDDI3202K supplied by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement or full refund — no lengthy RMA processes. Our warranty commitment reflects our confidence in the quality of every unit we ship.

Q2: How is each module tested before shipment?
All BMXDDI3202K units undergo pre-shipment functional verification, including power-on self-test confirmation, visual inspection for physical damage, and connector integrity checks. Units sourced from authorized distribution channels are accompanied by original manufacturer documentation where available. We do not ship untested or cosmetically damaged modules.

Q3: Is the BMXDDI3202K compatible with my existing Modicon M340 rack and Unity Pro software?
Yes. The BMXDDI3202K is a standard Modicon M340 series module and is fully compatible with all BMX rack sizes (4, 6, 8, and 12-slot), all M340 CPUs, and both Unity Pro XL and EcoStruxure Control Expert (formerly Unity Pro) programming environments. No firmware updates or hardware modifications are required for integration into an existing M340 system.

Q4: Can TOPNLMS support long-term supply and replacement needs for this module?
Yes. TOPNLMS maintains stock of the BMXDDI3202K and key Modicon M340 complementary modules to support both planned maintenance programs and emergency breakdown replacements. We offer fast global shipping from Xiamen, China, with DHL Express and FedEx International Priority options available for urgent requirements. For large-volume procurement or long-term supply agreements, please contact our technical sales team directly.
