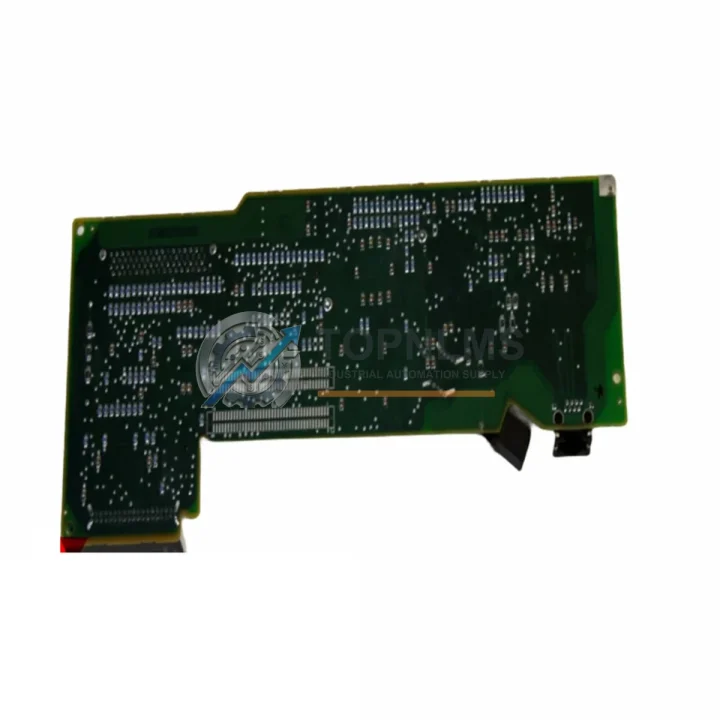

Schneider Electric 140NOE77100 Ruggedized Ethernet TCP/IP Module

Product Overview

Schneider Electric 140NOE77100 Ruggedized Ethernet TCP/IP Module: Industrial Resilience for Harsh Environments

The Schneider Electric 140NOE77100 is a high-performance Ethernet TCP/IP network communication module engineered for the Modicon Quantum PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the 140NOE77100 delivers the network backbone reliability that mission-critical industrial systems demand.

In continuous production environments — from petrochemical refineries and offshore platforms to steel mills and municipal water treatment facilities — communication integrity between the PLC rack and the supervisory control network is non-negotiable. The 140NOE77100 provides a dedicated, deterministic Ethernet TCP/IP link that keeps the Modicon Quantum CPU in constant, low-latency communication with SCADA systems, HMI panels, historian servers, and peer controllers. Its rugged design ensures that even under sustained vibration loads, wide supply voltage swings, and aggressive EMI from variable frequency drives and large motor starters, the module maintains packet integrity and connection stability without requiring manual intervention.

Rugged Specifications Table

Comprehensive Protection Solutions

The 140NOE77100 does not operate in isolation — it is the communications nerve center of a broader Modicon Quantum control system. In a fully configured Quantum rack, it works in concert with the 140CPU65150 or 140CPU67160 processor modules, which handle the real-time execution of ladder logic and function block programs. Power integrity for the entire rack is maintained by the 140CPS11420 or 140CPS21400 power supply modules, which provide regulated backplane voltage even under fluctuating site power conditions common in heavy industrial facilities.

On the I/O side, the 140NOE77100 enables the CPU to communicate status and control signals from 140DAI54000 digital input modules and 140DAO84000 digital output modules to upstream SCADA or DCS platforms. In process-intensive applications, analog signals from field instruments are handled by 140ACI04000 analog input modules, with all data routed through the Ethernet backbone that the 140NOE77100 establishes. For installations requiring redundant network paths — critical in oil and gas or nuclear power applications — the module supports hot-standby configurations alongside a secondary 140NOE77101 unit.

Where the Quantum system interfaces with third-party devices using legacy serial protocols, the 140NOM21200 Modbus Plus network module or 140NOA61100 AS-Interface master module can be co-installed in the same rack, with the 140NOE77100 serving as the primary Ethernet gateway to the plant network. In control cabinet builds, the module is typically paired with Schneider Electric Preventa XPS safety relays and Zelio Logic smart relays for zone-level safety interlocking, ensuring that network-level faults do not cascade into unsafe physical states. Terminal block assemblies from the Schneider Electric Linergy TR series provide the field wiring termination infrastructure that completes the cabinet.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the 140NOE77100 is deployed in wellhead control panels, pipeline SCADA RTU cabinets, and compressor station automation systems. Its ability to sustain reliable Modbus TCP communications across noisy, vibration-prone environments — where diesel generators, high-voltage switchgear, and large reciprocating compressors generate continuous EMI — makes it a preferred choice for field engineers specifying replacement or upgrade components.

In power generation and grid substations, the module enables real-time data exchange between Quantum PLCs and energy management systems (EMS), supporting functions such as automatic generation control (AGC), transformer protection coordination, and breaker status monitoring. Its dual RJ-45 ports allow ring or star Ethernet topologies, providing network redundancy without additional switching hardware.

In mining and mineral processing, where conveyor systems, crushers, and flotation cells operate around the clock, the 140NOE77100 maintains the communication link between distributed Quantum I/O drops and the central control room, even in the presence of heavy dust loading and ground vibration. Water treatment and desalination plants rely on the module for continuous monitoring of pump stations, chemical dosing systems, and filtration processes, where any communication dropout can result in regulatory non-compliance or process contamination.

In metallurgical and steel production environments — among the harshest in industrial automation — the module’s wide operating temperature range and robust EMC design allow it to function reliably in close proximity to induction furnaces, arc furnaces, and rolling mill drives, where electromagnetic field intensities routinely exceed standard industrial thresholds.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 140NOE77100 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Coverage includes functional failure under normal operating conditions. Each unit undergoes pre-shipment functional testing — including backplane communication verification and Ethernet port integrity checks — before dispatch. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module.

Q2: How is compatibility with my existing Modicon Quantum rack verified?
The 140NOE77100 is compatible with all standard Modicon Quantum backplane racks in the 140XBP series (6-slot, 10-slot, and 16-slot configurations). It is firmware-independent at the hardware level and is recognized automatically by Unity Pro / EcoStruxure Control Expert software. If you are integrating into an existing system with a specific firmware revision, our technical team can advise on any version-specific considerations prior to shipment.

Q3: Is long-term supply availability guaranteed for this module?
TOPNLMS maintains dedicated stock of the 140NOE77100 and other Modicon Quantum series modules to support long-term maintenance and MRO (Maintenance, Repair & Operations) procurement strategies. For customers managing aging Quantum installations, we offer scheduled supply agreements to ensure continuity of spare parts availability beyond the original manufacturer’s active production lifecycle.

Q4: What safety considerations apply when replacing this module in a live system?
The 140NOE77100 is a hot-swap-capable module within the Modicon Quantum architecture, provided the rack is configured for redundant operation. For single-CPU, non-redundant systems, replacement should be performed during a planned maintenance window with the rack de-energized and appropriate lockout/tagout (LOTO) procedures applied. TOPNLMS recommends consulting the Schneider Electric Quantum Hardware Reference Manual and coordinating with your site safety officer before performing any live-rack maintenance.
