Schneider Electric 140DDO35300C Original Industrial Spare Quantum Compatible

Product Overview

Schneider Electric 140DDO35300C Original Industrial Spare Quantum Compatible: System Stability & Maintenance Value

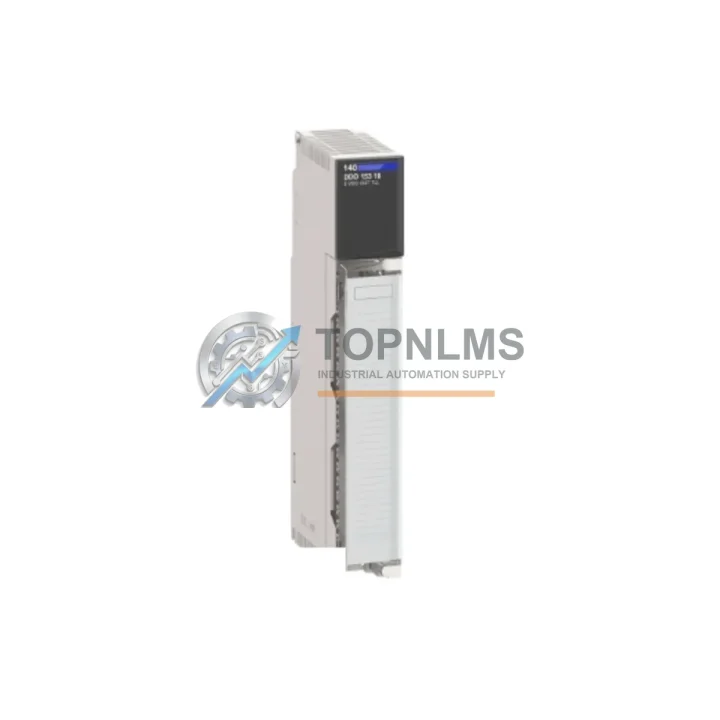

The Schneider Electric 140DDO35300C is an original discrete output module designed for the Modicon Quantum PLC platform — one of the most widely deployed process-control architectures in heavy industry, utilities, oil & gas, and manufacturing automation. As a 32-point transistor output module, the 140DDO35300C provides high-density, solid-state switching for field devices including solenoid valves, motor starters, indicator lamps, and relay coils. Holding a verified original spare of this module in your maintenance inventory is a direct investment in system uptime and operational continuity.

Industrial facilities running Modicon Quantum racks understand the cost of unplanned downtime. A single failed output module can halt an entire production line, trigger safety shutdowns, or compromise batch integrity. The 140DDO35300C is a drop-in replacement that restores full rack functionality without requiring software reconfiguration, rack rewiring, or system re-commissioning — making it the preferred choice for maintenance engineers who need fast, reliable recovery.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned shutdown or responding to a Quantum rack fault, experienced maintenance teams know that replacing only the failed module is rarely sufficient. The 140DDO35300C output module operates within an interconnected electrical circuit — its performance depends on the health of adjacent components in the same control cabinet and PLC rack.

During a cabinet inspection that involves the 140DDO35300C, it is best practice to simultaneously inspect the 140CPS11420 or 140CPS21400 power supply modules that energize the rack. A degraded power supply delivering marginal voltage can cause intermittent output faults that mimic module failure. Alongside the power supply, the 140CPU65160 or 140CPU67160 processor module should be checked for firmware currency and diagnostic logs — the CPU’s event buffer often records pre-fault output anomalies that help identify root cause.

The I/O bus integrity of the Quantum rack is equally critical. If the 140DDO35300C is installed in an extended rack, inspect the 140XBE10000 remote I/O head adapter and associated 140CRA93200 remote I/O drop adapter for communication errors. Intermittent bus faults can cause false output states that are misdiagnosed as module failures. While the rack is open, verify the condition of the 140XTS00200 or equivalent terminal strip connectors — corroded or loose field wiring terminals are a leading cause of output circuit failures in high-vibration environments.

For facilities managing mixed discrete and analog I/O, it is advisable to cross-check the adjacent 140AVO02000 analog output module or 140DDI35300 discrete input module for signs of thermal stress or connector wear. These modules share the same backplane power bus and are subject to the same environmental stressors. Proactively stocking a 140DDI35300 input module alongside the 140DDO35300C output module ensures that both sides of a critical I/O loop can be restored without a second procurement cycle.

Communication infrastructure supporting the Quantum system should also be reviewed during any planned maintenance window. The 140NOE77101 Ethernet network option module and 140NOM21200 Modbus Plus network module are common single points of failure in aging Quantum installations. Verifying their status during a cabinet inspection — rather than waiting for a network fault — significantly reduces the risk of a communication-related production stoppage.

Finally, for facilities operating Quantum systems in hazardous or high-humidity environments, inspect the 140XCP90000 conformal coating status on all installed modules. Moisture ingress on uncoated modules is a primary cause of premature output transistor failure, and the 140DDO35300C is no exception.

Strategic Replacement Solutions

The Modicon Quantum platform has been in active industrial deployment for over two decades. Many facilities are operating racks with original modules that are approaching or have exceeded their recommended service life. The 140DDO35300C serves as a direct, pin-compatible replacement for earlier Quantum discrete output modules, including the 140DDO35300 and 140DDO35301, without requiring any changes to the rack slot assignment, I/O map, or PLC program.

This backward compatibility is a critical advantage for maintenance teams managing legacy systems where full platform migration is not yet feasible or economically justified. By replacing aging output modules with original 140DDO35300C units, facilities can extend the operational life of their existing Quantum infrastructure by 5–10 years while maintaining full compatibility with their current Unity Pro or Concept programming environment.

For sites managing multiple Quantum racks across different production zones, a standardized spare-parts strategy built around the 140DDO35300C reduces the number of unique SKUs in the maintenance storeroom, simplifies technician training, and accelerates mean time to repair (MTTR). Procurement teams are advised to maintain a minimum buffer stock of 2–3 units per active rack to cover both emergency replacement and scheduled preventive swap-outs.

All units supplied by TOPNLMS are sourced as original Schneider Electric components, tested for electrical continuity and output switching function prior to dispatch, and shipped with full traceability documentation. Each module is covered by a 12-month warranty from the date of delivery.
