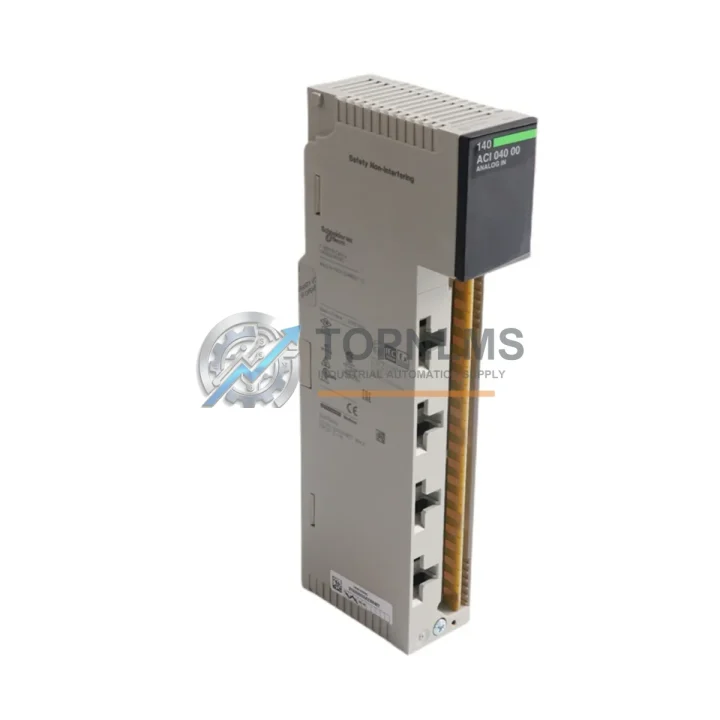

Schneider Electric 140ACI04000 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Schneider Electric 140ACI04000 is an 8-channel unipolar analog input module engineered for the Modicon Quantum programmable automation controller platform — one of the most widely deployed DCS/PLC architectures in heavy industry worldwide. Designed to operate continuously in demanding industrial environments, the 140ACI04000 delivers stable, high-resolution signal acquisition even under conditions of elevated temperature, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). For plant engineers and procurement specialists sourcing reliable spare parts or system expansion components, this module represents a proven, field-validated solution with a direct replacement path for aging Quantum rack installations.

Rugged Specifications Table

Comprehensive Protection Solutions

The 140ACI04000 does not operate in isolation — it is a critical node within a broader Modicon Quantum control architecture. In a typical Quantum rack assembly, this analog input module works in close coordination with the 140CPU67160 or 140CPU65150 central processing units, which handle real-time scan cycles and deterministic logic execution. Analog signals acquired by the 140ACI04000 are processed alongside discrete I/O data from companion modules such as the 140DDI35300 digital input module and the 140DDO35300 digital output module, enabling tightly integrated process control loops.

For applications requiring analog output — such as valve positioner control or variable-speed drive setpoint commands — the 140ACO02000 analog output module pairs directly with the 140ACI04000 on the same Quantum backplane, sharing the same local I/O bus and configuration environment. In installations where the Quantum system communicates with field devices over Modbus Plus or Ethernet TCP/IP, the 140NOE77101 Ethernet communication module provides the network gateway, ensuring that analog process values captured by the 140ACI04000 are transmitted reliably to SCADA systems and historian servers without data loss.

Power integrity is foundational to analog measurement accuracy. The 140CPS11420 power supply module, mounted in the same Quantum rack, delivers clean, regulated DC power to the backplane, minimizing noise that could corrupt low-level analog signals. In safety-critical zones, the Quantum platform supports integration with Preventa XPS safety relay modules and 140EHC10500 high-speed counter modules, allowing the 140ACI04000 to coexist within a mixed safety and standard control architecture. Terminal block assemblies such as the 140XTS00200 provide secure field wiring termination, reducing the risk of loose connections that could introduce measurement errors in high-vibration environments.

For facilities running Profibus DP field networks alongside Quantum systems, the 140CRP93200 RIO head adapter extends the reach of the Quantum I/O bus to remote drops, allowing analog input modules to be distributed across large plant footprints without signal degradation. This distributed architecture is particularly valuable in refineries, power stations, and water treatment plants where process instrumentation is spread across multiple buildings or process units.

Application in Critical Infrastructure

The Schneider Electric 140ACI04000 has established a long service record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it monitors pressure transmitters, flow meters, and temperature sensors on wellheads, compressor stations, and pipeline SCADA systems — environments where ambient temperatures can swing from sub-zero to above 50°C and where explosive atmospheres demand rigorous EMC discipline. The module’s robust backplane connection and conformal-coated PCB construction resist moisture ingress and corrosive gases that are common in offshore platforms and onshore processing terminals.

In power generation — including coal-fired, gas turbine, hydroelectric, and nuclear auxiliary systems — the 140ACI04000 provides the analog front-end for turbine control loops, generator excitation monitoring, and balance-of-plant instrumentation. Its 12-bit resolution ensures that small deviations in process variables are detected early, enabling predictive maintenance strategies that reduce unplanned outages. Power plant control rooms operating Modicon Quantum systems benefit from the module’s long-term availability as a stocked spare part, avoiding the costly downtime associated with obsolete or hard-to-source components.

In mining and metallurgy, where conveyor systems, crushers, smelters, and electrolytic cells generate intense electromagnetic noise and mechanical vibration, the 140ACI04000’s compliance with IEC 60068-2-6 vibration standards and IEC 61000 EMC standards ensures measurement integrity even in the harshest plant environments. Water treatment and municipal utilities rely on the module for continuous monitoring of flow, pH, turbidity, and chemical dosing — applications where 24/7 uptime is a regulatory requirement, not merely a commercial preference.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 140ACI04000?
Every 140ACI04000 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module undergoes functional testing prior to dispatch, including backplane communication verification and channel-level signal integrity checks. A test report is available upon request for quality-assurance documentation purposes.

Q2: Is this module compatible with all Modicon Quantum rack configurations?
Yes. The 140ACI04000 is compatible with all standard Modicon Quantum 140 series backplanes, including 4-slot, 6-slot, 10-slot, and 16-slot rack configurations. It is fully interchangeable with existing 140ACI04000 units in the field and requires no firmware modification when used as a drop-in replacement. Compatibility with Unity Pro and Concept programming environments is maintained.

Q3: How quickly can the module be shipped, and is long-term supply guaranteed?
In-stock units are dispatched within 1–3 business days from our Xiamen, China warehouse. We maintain buffer inventory of high-demand Modicon Quantum modules to support both emergency replacement orders and planned maintenance shutdowns. Long-term supply continuity is a core commitment — we source from verified channels and can support multi-year blanket order arrangements for facilities with ongoing spare-parts programs.

Q4: Can the 140ACI04000 be used in safety-instrumented systems (SIS)?
The standard 140ACI04000 is a non-safety-rated module and is not certified for use as a primary element in IEC 61511 safety-instrumented systems. However, it is routinely deployed in the basic process control system (BPCS) layer alongside dedicated safety modules such as Schneider Electric’s Preventa safety relays and Triconex TMR safety controllers. For SIS applications requiring analog input, we recommend consulting your functional safety engineer and reviewing the applicable SIL certification documentation before specifying any module.
