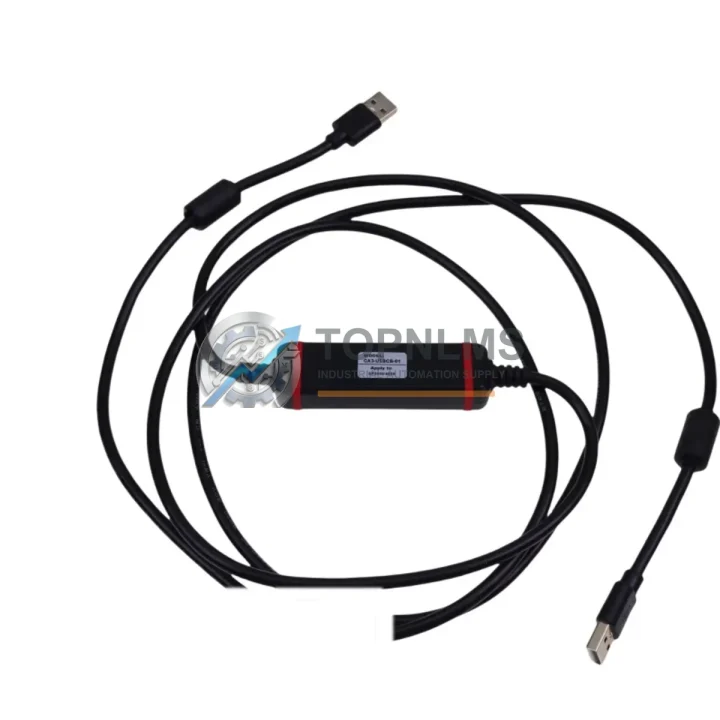

Schneider CA3-USBCB-01 TeSys U USB Config Cable

Product Overview

Schneider CA3-USBCB-01 TeSys U USB Config Cable: Seamless Upgrade & Legacy System Replacement

The Schneider Electric CA3-USBCB-01 is the dedicated USB configuration cable for the TeSys U motor management system — a critical interface tool for engineers commissioning, upgrading, or migrating control systems built around TeSys U motor starters and their associated multifunction control units. Whether you are replacing a worn or lost cable on an existing installation, migrating from an older RS-232-based configuration setup, or integrating TeSys U starters into a modernized control architecture, the CA3-USBCB-01 provides the direct USB-to-RJ45 communication link required by Schneider Electric’s PowerSuite and SoMove configuration software.

In many brownfield automation projects, the CA3-USBCB-01 is the first component engineers reach for when recommissioning legacy TeSys U panels. The cable connects a standard laptop USB port directly to the RJ45 configuration port on the LUCA, LUCB, LUCC, or LUCM multifunction control units, enabling full parameter read/write, fault history retrieval, and protection threshold adjustment without interrupting the main power circuit. This makes it indispensable during scheduled maintenance windows, emergency fault diagnosis, and system handover documentation.

When upgrading from older TeSys T or TeSys D motor management relays, the CA3-USBCB-01 is typically the first new accessory added to the engineer’s toolkit. The TeSys U platform introduced a unified RJ45 configuration interface across its LUCA, LUCB, and LUCM control units, replacing the proprietary serial connectors used on earlier generations. Engineers migrating from TeSys T systems will find that the CA3-USBCB-01 works seamlessly with SoMove software, which also supports parameter migration templates from legacy TeSys T configurations — significantly reducing reprogramming time during panel retrofits.

In distributed motor control centers (MCCs) where multiple TeSys U starters are installed across several LUB12, LUB32, or LUF1A base units, a single CA3-USBCB-01 cable serves the entire panel. Technicians can move the cable from unit to unit, connecting to each LUCM advanced multifunction control unit in sequence to verify overload settings, phase imbalance thresholds, and communication parameters before energizing the system. This workflow is particularly valuable during commissioning of new production lines or after a partial panel replacement where only selected starters have been upgraded.

For installations that incorporate TeSys U starters into a Modbus RTU or CANopen network — using the LUCM10BL or LUCM10F communication modules — the CA3-USBCB-01 remains the local configuration interface even when the starter is online on the fieldbus. Engineers can configure the Modbus node address, baud rate, and parity settings locally via the cable before the starter is brought onto the network, avoiding address conflicts and communication errors during system startup. This is especially important in large installations where the XBTZG935 or XBTZG9371 HMI terminals are used for supervisory monitoring of motor status across the Modbus network.

The cable is also essential when integrating TeSys U starters with Schneider Electric Modicon M340 or Modicon M580 PLCs via the Modbus serial network. Before the PLC program can poll motor status registers, each TeSys U starter must be individually configured with the correct node address and communication parameters — a task that requires the CA3-USBCB-01 and SoMove software. In systems where the BMXNOE0100 or BMXNOE0110 Ethernet communication modules are used on the M340 rack, the CA3-USBCB-01 handles the local starter-level configuration while the PLC manages supervisory control at the network level.

Procurement teams sourcing the CA3-USBCB-01 as a spare part or replacement should note that this cable is a consumable accessory with a finite service life due to connector wear and cable flex fatigue. Stocking one or two units per panel is standard practice in facilities with active TeSys U installations. TOPNLMS ships CA3-USBCB-01 units from verified stock with full inspection, and each unit is covered by a 12-month warranty against manufacturing defects.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete TeSys U commissioning or migration toolkit typically includes several complementary components alongside the CA3-USBCB-01. The LUCM advanced multifunction control unit is the primary device configured via this cable, providing overload protection, phase monitoring, and Modbus/CANopen communication in a single compact module. For installations requiring fieldbus connectivity, the LUCM10BL (Modbus RTU) or LUCM10F (CANopen) communication modules are configured locally using the CA3-USBCB-01 before being brought online on the network.

Engineers replacing older TeSys D or TeSys T motor starters will also need to verify compatibility of the LUB12 or LUB32 base units, which provide the power switching function and accept the LUCA or LUCM control units. In panels where space is constrained, the LUF1A or LUF2A function modules can be added to the base unit to extend I/O or communication capability without increasing the overall footprint. For supervisory monitoring, the XBTZG935 operator panel or a Modicon M340 PLC with BMXNOE0100 Ethernet module provides the upstream control layer that communicates with the configured TeSys U starters over Modbus RTU or TCP/IP. Signal isolation between the TeSys U Modbus network and the PLC I/O rack may require DIN-rail-mounted signal isolators or terminal blocks such as the NSYTRV series, ensuring clean communication in electrically noisy environments.

Retrofit Guidance FAQ

Q: Will the CA3-USBCB-01 work with my existing TeSys U starters without any hardware modification?
A: Yes. The CA3-USBCB-01 connects directly to the RJ45 configuration port present on all LUCA, LUCB, LUCC, and LUCM control units. No hardware modification, adapter, or additional module is required. Simply install the SoMove software driver and connect the cable.

Q: Can I use this cable to migrate parameters from an old TeSys T system to a new TeSys U installation?
A: The CA3-USBCB-01 is specific to the TeSys U RJ45 interface. SoMove software supports parameter templates that can be adapted from TeSys T configurations, but the physical cable for TeSys T is different. You will use the CA3-USBCB-01 to program the new TeSys U starters after preparing the parameter files in SoMove.

Q: Does the cable support configuration while the starter is energized and running?
A: Yes. The RJ45 configuration port on TeSys U control units is electrically isolated from the power circuit, allowing safe parameter reading and non-critical adjustments while the motor is running. Critical protection threshold changes should be made during a maintenance window.

Q: What communication protocol does the CA3-USBCB-01 use, and will it conflict with my existing Modbus network?
A: The cable uses a USB CDC virtual COM port protocol for local PC-to-starter communication. It is entirely independent of the Modbus RTU or CANopen fieldbus network on the starter. There is no conflict; both interfaces can coexist simultaneously.

Q: How much physical space does the cable require in the control cabinet?
A: The CA3-USBCB-01 is an external cable used only during configuration and maintenance. It does not occupy any permanent panel space. The RJ45 port on the TeSys U control unit is typically accessible from the front of the starter without opening the cabinet door fully.

Q: Is a special driver required for Windows 10 or Windows 11?
A: The USB driver is included with the SoMove software installation package. No separate driver download is required for Windows 10 or 11. The cable installs as a virtual COM port and is recognized automatically after SoMove is installed.

Warranty Assurance

Every CA3-USBCB-01 shipped by TOPNLMS is covered by a 12-month warranty against manufacturing defects, including connector failure, cable continuity faults, and USB interface issues. Prior to shipment, each unit undergoes a continuity and communication function check to verify that the cable performs correctly with TeSys U control units and SoMove software.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team can assist with driver installation, SoMove configuration, and compatibility verification for your specific TeSys U installation. Orders are typically processed and shipped within 1–3 business days from our Xiamen warehouse, with DHL, FedEx, and UCP express options available for urgent replacement requirements.

For bulk procurement, OEM supply agreements, or project-based sourcing of TeSys U accessories and Schneider Electric automation components, please contact our sales team directly to discuss pricing, lead times, and quality documentation.
