Schneider BSH0703P12F1A Replacement for BSH Series: Seamless Transition & Legacy System Compatibility

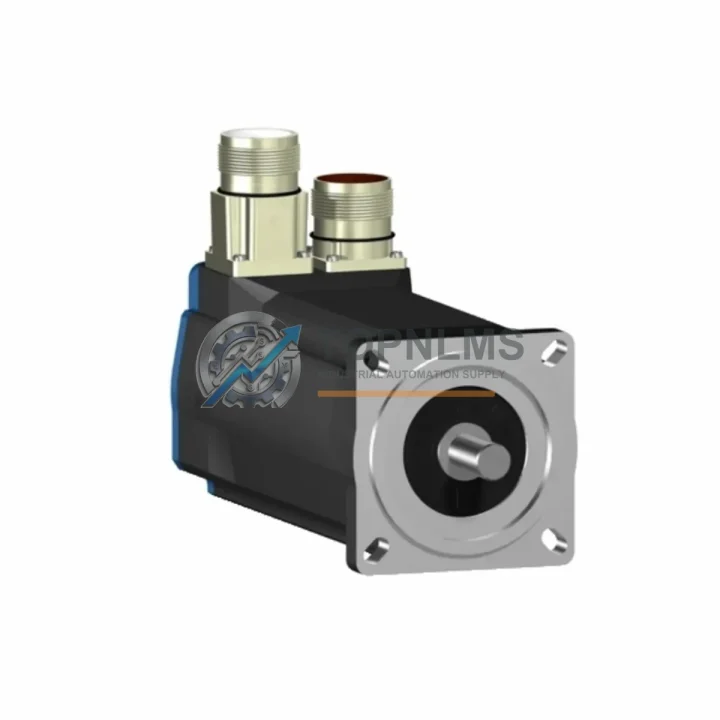

When a Schneider Electric BSH0703P12F1A AC Servo Motor fails or reaches end-of-life in your production line, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. The BSH0703P12F1A is a compact, high-performance servo motor from Schneider Electric’s BSH Series — a platform widely deployed across packaging machinery, CNC machining centers, textile equipment, material handling conveyors, and general-purpose motion control systems throughout Europe and Asia. At TOPNLMS, we supply original BSH0703P12F1A units that are fully tested, immediately available, and backed by a 12-month warranty, enabling your engineering team to execute a smooth, low-risk replacement without redesigning the surrounding control architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing a BSH0703P12F1A is rarely an isolated task. In most industrial environments, the servo motor operates as part of a tightly integrated motion control loop, and a successful upgrade requires verifying the health and compatibility of every adjacent component in the drive chain and control cabinet.

The most common pairing for the BSH0703P12F1A is a Lexium 05 or Lexium 32 servo drive. Before commissioning the replacement motor, engineers should confirm that the drive firmware supports the encoder resolution of the P12 feedback variant and that the drive’s current rating matches the motor’s peak torque demand. If the existing Lexium drive is also aging or showing fault codes, sourcing a matched replacement drive simultaneously eliminates a second unplanned shutdown in the near future.

The power and feedback cabling between the drive and motor is another critical checkpoint. BSH Series motor cables — both the power cable (typically a shielded 4-core with PE) and the encoder feedback cable — must be inspected for insulation degradation, connector pin corrosion, and shield continuity. Damaged cables are a leading cause of encoder noise faults and erratic positioning errors that are often misdiagnosed as motor failure. Replacing the motor without renewing worn cables can result in immediate re-faulting after commissioning.

On the control side, the BSH0703P12F1A typically receives its motion commands from a Modicon M340 or M580 PLC via the Lexium drive’s fieldbus interface. If the migration involves moving from an older Modicon Premium or Quantum platform, the engineering team must validate the motion function blocks and axis configuration parameters in the new PLC program. In many retrofit projects, a CANopen or EtherCAT communication module must be added to the PLC rack to support the drive’s preferred protocol, and the I/O mapping for homing, enable signals, and fault resets must be re-verified.

Within the control cabinet, the 24 VDC power supply module feeding the drive’s logic circuit and the motor’s brake circuit (if applicable in adjacent axes) should be load-tested. Undersized or aging power supplies cause intermittent drive trips that are difficult to trace. Similarly, the terminal blocks and wiring duct in the servo section of the cabinet should be inspected — loose terminals on the motor power circuit are a fire and fault risk that a planned motor replacement is the ideal opportunity to address.

For multi-axis systems, it is also advisable to inspect neighboring axes during the same maintenance window. If the machine uses multiple BSH Series motors — for example, a BSH1001P12F1A or BSH0702P12F1A on adjacent axes — and those units have accumulated similar operating hours, a proactive replacement schedule prevents cascading failures. Keeping one spare BSH0703P12F1A in local inventory is a widely recommended practice for high-utilization machines where this motor size is the primary motion element.

Finally, if the machine’s HMI (Human-Machine Interface) — such as a Magelis XBTGT or HMIGTO panel — displays axis-specific alarm pages, the alarm text and parameter screens should be reviewed after the motor swap to confirm that the new motor’s encoder offset and tuning parameters have been correctly entered. A brief auto-tune cycle on the Lexium drive after installation is standard practice and ensures optimal velocity loop performance from the first production cycle.

Retrofit Guidance FAQ

Q1: Is the BSH0703P12F1A a direct drop-in replacement for my existing BSH Series motor?
In most cases, yes. The BSH0703P12F1A uses the standard 70 mm BSH frame with an IEC-compliant flange and the same power/feedback connector pinout as other BSH Series motors of the same frame size. However, you must verify that your existing Lexium drive is configured for an incremental encoder (P12) rather than a resolver or SinCos encoder variant. If your current motor uses a different feedback type, a drive parameter change or firmware update may be required before commissioning.

Q2: Do I need to re-program my PLC or servo drive after replacing the motor?
For a like-for-like BSH0703P12F1A replacement, the PLC program typically does not require modification. The Lexium drive may require an encoder offset re-calibration (homing cycle) and a velocity/current loop auto-tune after installation. If you are migrating from a different motor variant (different encoder resolution or torque rating), drive parameter adjustments will be necessary. Our technical team can provide parameter guidance upon request.

Q3: Can the BSH0703P12F1A operate with older Lexium 05 drives that are no longer in production?
Yes. The BSH0703P12F1A is compatible with the Lexium 05 drive family, which remains widely installed in legacy machinery. The motor’s electrical interface and encoder protocol are consistent across the BSH/Lexium ecosystem. If your Lexium 05 drive is also showing signs of wear, we recommend sourcing a replacement drive at the same time to avoid a second shutdown. TOPNLMS stocks a range of Lexium drive variants to support complete axis-level replacements.

Q4: What pre-shipment testing does TOPNLMS perform on the BSH0703P12F1A?
Every BSH0703P12F1A unit undergoes electrical continuity testing, insulation resistance verification, encoder signal integrity check, and visual inspection for mechanical damage before shipment. Units are packed in anti-static, shock-protected packaging suitable for international freight. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our after-sales team responds within 24 hours for warranty claims and provides replacement or repair support as applicable.

Warranty Assurance

Every BSH0703P12F1A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failures arising from manufacturing defects, encoder malfunctions, winding faults, and bearing failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or mechanical overload beyond the motor’s rated specifications.

Prior to shipment, each unit is subjected to a structured pre-delivery inspection protocol: electrical parameter verification, encoder output signal testing, insulation resistance measurement (megger test), and physical integrity inspection. A test report is available upon request for quality-critical applications.

Shipping is handled via DHL Express, FedEx International Priority, or sea freight depending on order volume and destination. Most in-stock orders are dispatched within 1–3 business days. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided as standard for all international shipments.

For warranty claims, our after-sales team at [email protected] responds within 24 business hours. We offer replacement unit dispatch, repair assessment, or credit note options depending on the nature of the fault and the customer’s operational urgency. Our goal is to minimize your downtime and protect your procurement investment.
