Schneider BMXDRA1605 Replacement for Modicon M340

Product Overview

Schneider BMXDRA1605 Replacement for Modicon M340: Seamless Transition from Legacy Relay Output Systems

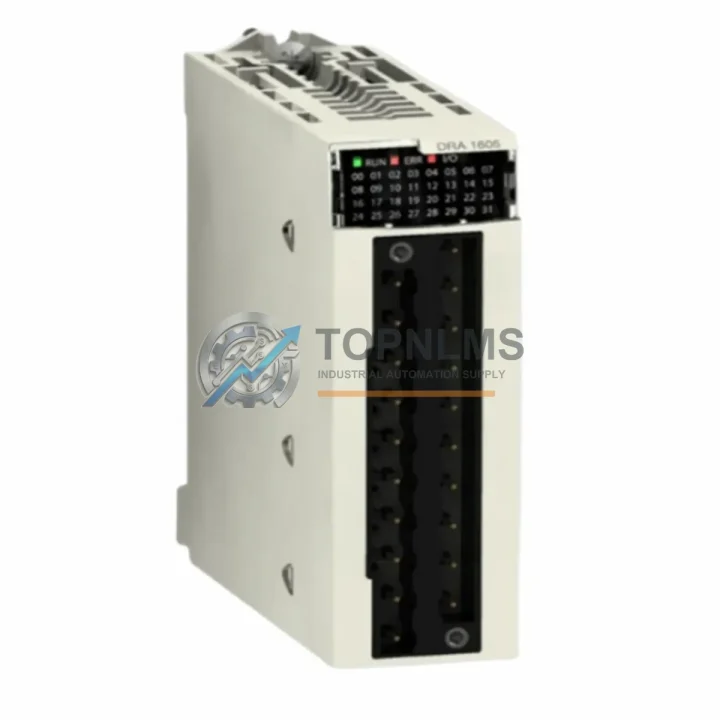

The Schneider Electric BMXDRA1605 is a 16-channel relay output module designed for the Modicon M340 automation platform. As industrial facilities face increasing pressure to modernize aging control infrastructure, the BMXDRA1605 has become a critical replacement and upgrade component for engineers migrating from earlier Modicon Quantum, Modicon Premium, and TSX Series relay output configurations. Whether your existing system relies on discontinued TSX DSY 16R5 relay output modules or aging Quantum 140DDO35300 discrete output cards, the BMXDRA1605 provides a direct migration path with minimal rewiring and zero PLC program restructuring in most M340 rack configurations.

Designed to slot directly into the BMX XBP 0400 / BMX XBP 0800 / BMX XBP 1200 backplane racks, the BMXDRA1605 integrates natively with the M340 CPU modules such as the BMX P34 2020 and BMX P34 2030, communicating over the internal X-Bus backplane without requiring additional communication configuration. For sites upgrading from older relay output cards with screw-terminal wiring blocks, the BMXDRA1605 accepts standard 20-pin front connector wiring, and existing field wiring can typically be re-terminated with no changes to cable routing or panel layout.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the BMXDRA1605 rarely involves a single module swap. In practice, engineers upgrading from legacy Modicon Premium or TSX-based control cabinets will typically also source the BMX XBP 0800 backplane rack to accommodate the expanded I/O count of the M340 platform. Power supply continuity is ensured by pairing the BMXDRA1605 with the BMX CPS 2000 or BMX CPS 3500 power supply modules, which provide regulated 24 VDC to the rack and support hot-standby configurations in critical process environments.

For sites that also need to modernize their digital input infrastructure alongside relay output replacement, the BMX DDI 1602 16-channel 24 VDC discrete input module is the natural companion to the BMXDRA1605 within the same rack. Analog signal chains can be preserved or upgraded using the BMX AMI 0410 analog input module, which supports 4–20 mA and 0–10 V field instruments without signal conditioner changes.

Communication architecture upgrades are often required in parallel. The BMX NOE 0100 Ethernet communication module enables Modbus TCP/IP connectivity for SCADA integration, replacing older Uni-Telway or Modbus serial links from legacy Premium systems. For sites retaining serial Modbus RTU field devices, the BMX NOM 0200 serial communication module provides RS-485/RS-232 support within the M340 rack without requiring external converters.

Panel wiring simplification is achievable by integrating BMXFTB2000 or BMXFTB2010 screw-terminal front connector blocks, which accept standard 1.5 mm² field wiring and reduce termination time during commissioning. For applications requiring signal isolation between field devices and the M340 relay outputs — particularly in high-voltage or noisy industrial environments — signal isolators such as the Phoenix Contact MINI MCR series or equivalent DIN-rail isolators are commonly installed in the same control cabinet.

HMI integration is typically handled via the Magelis HMIGTO series or Vijeo Designer-compatible panels communicating over Modbus TCP to the M340 CPU, providing operators with real-time relay output status visualization without changes to the PLC program logic.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring from a TSX DSY 16R5 installation?
A: In most cases, yes. The BMXDRA1605 uses a 20-pin screw terminal front connector. If your legacy module used a similar screw-terminal block with the same pin-out grouping, field cables can be re-terminated directly. Verify load voltage ratings per channel before energizing — the BMXDRA1605 supports 24–240 VAC/VDC on the load side.

Q: Do I need to modify my Unity Pro / Control Expert program after replacing the module?
A: No program modification is required if the BMXDRA1605 is installed in the same rack slot as the original relay output module and the I/O addressing in the program matches the slot position. The M340 CPU auto-detects the module on power-up. If migrating from a different platform (e.g., Quantum or Premium), I/O variable remapping in Control Expert will be necessary.

Q: Is the BMXDRA1605 compatible with both BMX XBP 0400 and BMX XBP 0800 racks?
A: Yes. The BMXDRA1605 is compatible with all standard M340 backplane racks (BMX XBP 0400, 0800, and 1200) and occupies a single slot. No jumper or DIP switch configuration is required.

Q: What communication protocols does the M340 system support after this upgrade?
A: The M340 platform natively supports Modbus TCP/IP (via BMX NOE Ethernet modules), Modbus RTU/ASCII (via BMX NOM serial modules), CANopen, and DeviceNet. The BMXDRA1605 itself communicates over the internal X-Bus and is transparent to the CPU’s external communication configuration.

Q: How much physical space does the BMXDRA1605 require in the control cabinet?
A: The BMXDRA1605 occupies a single M340 rack slot. The overall cabinet footprint depends on the rack size selected. The BMX XBP 0800 (8-slot rack) has a standard DIN-rail or panel-mount profile compatible with most 400 mm or wider control cabinet widths.

Q: Can the BMXDRA1605 be used in a hot-standby redundancy configuration?
A: The BMXDRA1605 is compatible with M340 hot-standby CPU configurations (BMX CPS 3500 power supply + redundant CPU setup). Relay output modules in hot-standby systems switch seamlessly on CPU failover with no output pulse.

Warranty Assurance

Every BMXDRA1605 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including backplane interface continuity checks, relay contact resistance testing, and visual inspection for physical damage or counterfeit indicators. Units are shipped in anti-static packaging with original labeling intact.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing for production-critical orders. Our technical team is available to assist with installation verification, compatibility confirmation, and commissioning guidance via email at [email protected] or by phone at +86 18359293191.

Stock availability is maintained for immediate dispatch. Standard lead time for in-stock units is 1–3 business days for domestic China shipments and 5–10 business days for international orders via DHL, FedEx, or UPS Express. Bulk procurement inquiries and long-term supply agreements are welcome.
