Schneider BMXDDI1602 Replacement/Upgrade Solution for M340

Product Overview

Schneider BMXDDI1602 Replacement/Upgrade Solution for M340: Smooth Transition from Legacy Systems

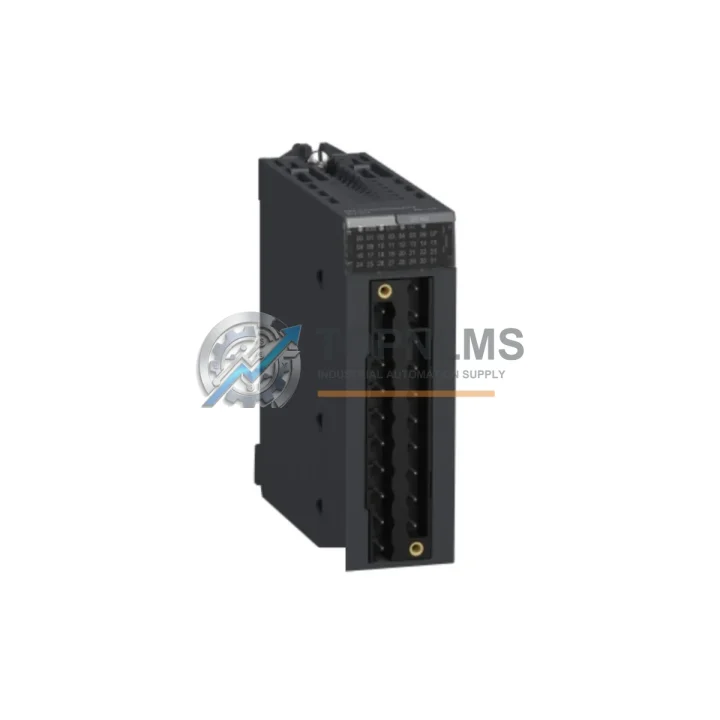

The Schneider Electric BMXDDI1602 is a 16-channel, 24 VDC digital input module designed for the Modicon M340 automation platform. For facilities running aging Quantum, Premium, or early-generation M340 systems, this module represents a proven, cost-effective path to modernize discrete input acquisition without redesigning the control architecture. Whether you are replacing a failed unit, upgrading from a discontinued TSX or Quantum I/O card, or consolidating a mixed-vendor panel into a unified Schneider ecosystem, the BMXDDI1602 delivers the compatibility, density, and reliability your operation demands.

Industrial sites that have operated legacy Modicon TSX Quantum or TSX Premium PLCs for more than a decade face increasing pressure from end-of-life part availability, rising maintenance costs, and the inability to integrate modern SCADA or MES platforms. Migrating discrete input channels to the M340 platform using the BMXDDI1602 allows engineers to reuse existing field wiring in many cases, dramatically reducing retrofit labor. The module’s 24 VDC sink/source input compatibility aligns with the majority of proximity sensors, limit switches, and push-button circuits already installed in the field, meaning terminal rewiring is often limited to connector adaptation rather than full cable replacement.

From a physical installation standpoint, the BMXDDI1602 mounts directly onto standard BMX XBP backplanes — including the BMX XBP 0400, BMX XBP 0800, and BMX XBP 1200 — without requiring additional mounting hardware or spacers. This slot-for-slot compatibility is critical in retrofit projects where control cabinet space is fixed and adding new DIN rail sections is not feasible. Engineers migrating from older Quantum 140DDI35300 or 140DDI84100 discrete input cards will find that the M340 rack footprint is significantly more compact, often freeing space for additional communication modules or power supplies within the same enclosure.

On the communication and programming side, the BMXDDI1602 integrates seamlessly with the Unity Pro / EcoStruxure Control Expert programming environment. I/O mapping, channel diagnostics, and module health monitoring are all handled natively within the same project file used for the BMX P34 or BMX P58 CPU modules. For sites transitioning from Concept or PL7 Pro software, the migration wizard in EcoStruxure Control Expert can import legacy variable tables and remap I/O addresses to the new M340 rack configuration, substantially reducing programming rework. Fieldbus continuity is maintained through the BMX NOE 0100 or BMX NOE 0110 Ethernet communication modules, which support Modbus TCP and EtherNet/IP — the same protocols used in most existing plant historian and SCADA integrations.

Power supply compatibility is another key consideration in any migration. The BMXDDI1602 draws its logic power from the M340 backplane, supplied by a BMX CPS 2000 or BMX CPS 3500 power supply module. Both units accept a wide AC input range and provide regulated 24 VDC backplane power, eliminating the need for separate field power converters that were common in older Quantum installations. For applications requiring isolated field power, a dedicated 24 VDC external supply feeding the input commons remains the recommended approach, consistent with IEC 61131-2 wiring practices.

Signal integrity and noise immunity are preserved through the module’s built-in optical isolation on all 16 input channels. This is particularly important in retrofit scenarios where the BMXDDI1602 shares a cabinet with variable frequency drives, servo amplifiers, or high-current contactors — equipment that generates significant electromagnetic interference. The module’s IEC 61000-4 compliance ensures stable operation in these electrically noisy environments without requiring additional signal conditioning hardware such as external signal isolators or filter relays.

For projects that also require analog input migration, the BMXAMI0410 analog input module and BMXAMO0410 analog output module are direct M340 platform companions that can be installed in adjacent slots on the same backplane. Similarly, the BMXDDO1602 digital output module mirrors the BMXDDI1602’s form factor and channel density, making it straightforward to build balanced I/O racks with matched input and output capacity. HMI integration is typically handled through a Magelis HMIGTO or HMISCU panel connected via Modbus serial or Ethernet, preserving operator interface continuity during the migration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete M340 migration typically involves more than a single I/O module. The BMX P342020 or BMX P342030 CPU module serves as the processing core, while the BMX XBP 0800 eight-slot backplane provides the physical foundation for a mid-density I/O rack. Alongside the BMXDDI1602, engineers commonly add the BMXDDO1602 for digital outputs and the BMXAMI0410 for analog inputs, creating a complete mixed I/O rack within a single enclosure. The BMX NOE 0110 Ethernet module bridges the M340 rack to plant Ethernet networks, while the BMX CPS 2000 power supply ensures stable backplane power. For serial communication continuity with legacy field devices, the BMX NOM 0200 serial communication module supports Modbus RTU and ASCII protocols. Programming and commissioning require a standard USB-to-mini-USB cable compatible with the M340 CPU’s onboard USB port — no proprietary programming adapter is needed, unlike older Quantum or Premium systems. Where signal isolation between field devices and the M340 rack remains a concern, DIN-rail-mounted signal isolators can be inserted between the field terminal block and the BMXDDI1602 input commons without any modification to the module itself.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring from a Quantum 140DDI35300?
A: In most cases, yes. Both modules accept 24 VDC discrete inputs. You will need to adapt the Quantum 40-pin connector to the M340 HE10 connector using a BMX FTB or equivalent terminal block adapter. Verify input common polarity before energizing.

Q: Is the I/O address mapping identical after migration?
A: No. Quantum uses a slot-based %I addressing scheme; M340 uses a rack/slot/channel structure in EcoStruxure Control Expert. The migration wizard can assist with remapping, but manual verification of all I/O references in the application program is recommended before live commissioning.

Q: Does the BMXDDI1602 support both sink and source wiring?
A: Yes. The module supports IEC Type 1 (sink) and Type 3 (source) input configurations, providing flexibility for NPN and PNP sensor wiring without hardware modification.

Q: What communication protocols are supported for SCADA integration?
A: Via the BMX NOE 0110 Ethernet module, the M340 platform supports Modbus TCP and EtherNet/IP. Legacy Modbus RTU devices can be connected through the BMX NOM 0200 serial module.

Q: How much physical space does the M340 rack require compared to a Quantum rack?
A: The M340 BMX XBP 0800 backplane is significantly more compact than an equivalent Quantum 140 XBP rack. In most retrofit projects, the M340 rack fits within the existing cabinet footprint, often with space to spare for additional modules.

Q: What is the minimum downtime expected during cutover?
A: With pre-tested hardware, a pre-loaded application program, and pre-adapted wiring harnesses, a single-rack cutover can typically be completed within a planned maintenance window of 4–8 hours. TOPNLMS recommends bench-testing the complete rack assembly before site installation to minimize on-site commissioning time.

Warranty Assurance

Every BMXDDI1602 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on self-test, channel continuity check, and communication handshake validation. Units that do not pass inspection are not shipped. In the event of a confirmed defect within the warranty period, TOPNLMS will arrange replacement shipment or full refund — whichever the customer prefers — with no return shipping cost to the buyer. Our average response time for warranty claims is under 24 hours on business days. We maintain buffer stock of high-demand M340 modules to ensure replacement units can be dispatched without extended lead times. For urgent plant-down situations, expedited shipping options are available upon request. All warranty claims are handled directly by our technical team, with no third-party intermediaries.
