Schneider BMXART0814 Replacement/Upgrade Solution for M340

Product Overview

Schneider BMXART0814 Replacement/Upgrade Solution for M340: Smooth Transition from Legacy Analog Input Systems

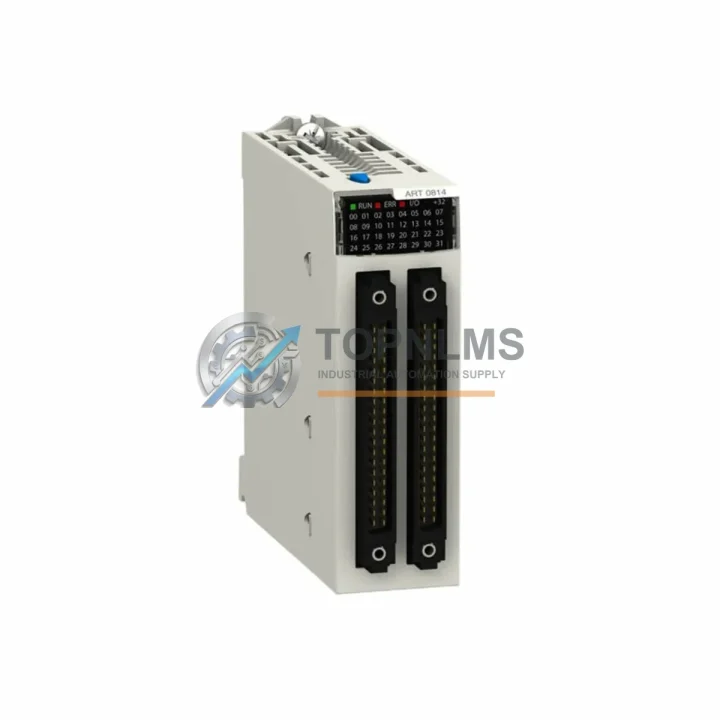

The Schneider Electric BMXART0814 is an 8-channel RTD and thermocouple (TC) isolated analog input module designed for the Modicon M340 automation platform. For facilities running aging Modicon Quantum, Modicon Premium, or early-generation M340 racks with non-isolated analog input cards, migrating to the BMXART0814 represents a low-risk, high-value upgrade path that preserves existing field wiring, minimizes engineering rework, and dramatically reduces unplanned downtime.

Whether your plant is retiring a TSXAEY414 from a Modicon Premium rack, decommissioning a 140AII33000 from a Quantum backplane, or simply replacing a failed BMXART0814 in an active M340 system, this module slots directly into any BMX series rack — including the BMXXBP0400, BMXXBP0800, and BMXXBP1200 backplanes — without requiring rack modification or additional mounting hardware.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the BMXART0814 rarely involves the module alone. In practice, field engineers upgrading from legacy Modicon Premium or Quantum systems will also need to evaluate adjacent components in the control cabinet. The BMXFTB2000 terminal block adapter is the standard wiring interface for this module, allowing existing shielded thermocouple and RTD cables to be reconnected without re-termination — a critical time-saver during live plant retrofits.

For systems where the CPU is also being upgraded, the BMXP342020 or BMXP342030 processors are the natural pairing, offering Modbus TCP and Ethernet/IP communication that integrates cleanly with SCADA and DCS supervisory layers. If the existing rack is a legacy Quantum or Premium chassis, a new BMXXBP0800 8-slot BMX backplane will be required, along with a compatible BMXCPS2000 or BMXCPS3500 power supply module to ensure stable 24 VDC rail delivery to all I/O slots.

Communication continuity is another key concern. Sites running Modbus RTU over RS-485 to field instruments can bridge to the M340 platform using a BMXNOE0100 Ethernet communication module, while installations requiring CANopen or DeviceNet connectivity should evaluate the BMXNOE0110 for protocol gateway functions. For signal conditioning in high-noise industrial environments — common in steel, petrochemical, and water treatment plants — adding a BMXAMI0810 standard analog input module alongside the BMXART0814 provides additional 4–20 mA channels without occupying a second RTD/TC slot.

Finally, for programming and commissioning, a TSXPCX3030 USB-to-serial programming cable or a direct Ethernet connection to EcoStruxure Control Expert (formerly Unity Pro) is required to configure channel types, sensor ranges, and fault detection thresholds for each of the 8 isolated input channels.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring from a TSXAEY414 or 140AII33000?
A: In most cases, yes. RTD and TC wiring is sensor-driven and follows IEC 60584 / IEC 60751 standards. As long as the cable shielding and grounding practices are maintained, existing wiring can be re-terminated to the BMXFTB2000 terminal block without signal degradation.

Q: Do I need to rewrite my PLC program when replacing a failed BMXART0814?
A: No. A like-for-like BMXART0814 replacement in the same rack slot requires no program changes. The module address and I/O mapping remain identical. If migrating from a different module type, channel re-mapping in EcoStruxure Control Expert will be required.

Q: Is the BMXART0814 compatible with Modbus TCP SCADA systems?
A: Yes. The module communicates via the BMX backplane bus to the M340 CPU, which exposes all analog values over Modbus TCP or Ethernet/IP to upstream SCADA, DCS, or historian systems without additional gateways.

Q: What physical space does the module require?
A: The BMXART0814 occupies a single slot in any BMX series rack. No additional DIN rail space or external signal conditioner is required. Cabinet depth requirements are standard for M340 I/O modules.

Q: How do I configure RTD vs. TC input types per channel?
A: Channel type configuration is performed in EcoStruxure Control Expert under the module’s I/O configuration tab. Each of the 8 channels can be independently set to PT100, PT1000, Ni100, Type J, Type K, Type T, or other supported sensor types.

Warranty Assurance

Every BMXART0814 unit shipped by TOPNLMS undergoes pre-shipment functional testing, including backplane communication verification, channel isolation checks, and input range calibration validation. All units are covered by a 12-month replacement warranty from the date of delivery.

In the event of a confirmed module fault within the warranty period, TOPNLMS provides direct replacement support with expedited re-shipment from our Xiamen warehouse. Our after-sales response time is within 24 hours on business days. We support procurement teams with full documentation including test reports, packing lists, and commercial invoices for customs clearance.

For urgent plant shutdowns or emergency replacement scenarios, express shipping options (DHL, FedEx, UPS) are available to most destinations within 3–5 business days. Bulk procurement inquiries for MRO stock programs are welcome.
