Schneider ATS48C 16250850112A08 Original Spare ATS48 Compatible: System Stability & Industrial Spare Parts Maintenance Value

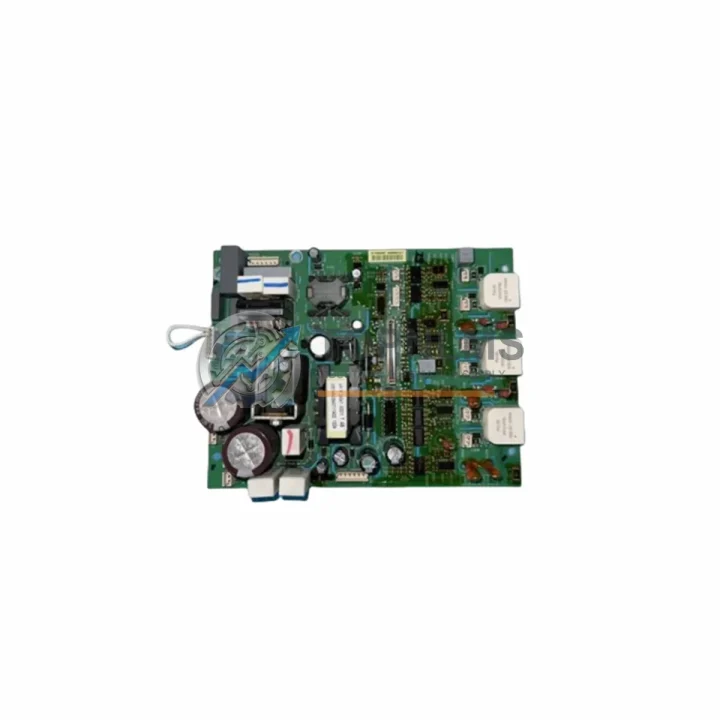

The Schneider Electric ATS48C 16250850112A08 is an original power supply board designed for the Altivar ATS48 series soft starter — one of the most widely deployed motor soft-start solutions in global industrial automation. This internal power supply board is the critical energy management component that regulates and distributes control voltage across the ATS48 drive’s logic circuits, gate driver stages, and communication interfaces. When this board fails, the entire soft starter becomes inoperable, leading to unplanned motor downtime, production line stoppages, and costly emergency maintenance windows.

Sourced as an original Schneider Electric spare part, the ATS48C 16250850112A08 is manufactured to OEM specifications, ensuring full compatibility with the ATS48C soft starter range without any firmware conflicts, parameter resets, or recalibration requirements. For maintenance engineers managing aging ATS48 installations in cement plants, water treatment facilities, mining conveyors, HVAC systems, and heavy process industries, stocking this board as a critical spare is a proven strategy to minimize mean time to repair (MTTR) and protect production continuity.

Critical Technical Specs Table

Preventive Maintenance Strategy

A power supply board failure in the ATS48C is rarely an isolated event. In most field cases, the root cause traces back to sustained overvoltage on the control supply, capacitor aging, or thermal stress from inadequate ventilation inside the control cabinet. A disciplined preventive maintenance program should treat the ATS48C 16250850112A08 replacement as the trigger for a comprehensive cabinet inspection — not just a board swap.

When replacing the ATS48C 16250850112A08 power supply board, maintenance teams should simultaneously inspect the ATS48C control terminal board for corrosion or loose wiring on the 24 VDC logic supply inputs. The ATS48 gate driver board should be checked for signs of thermal discoloration or IGBT gate signal anomalies, as power supply instability often stresses the gate drive circuits in parallel. If the soft starter is connected to a Modbus RTU or CANopen communication module, verify that the communication card’s power rail is stable post-replacement, since a degraded supply board can corrupt fieldbus communication parameters stored in volatile memory.

The ATS48 bypass contactor — typically a Schneider Electric LC1D or TeSys series contactor — should be tested for contact wear during the same maintenance window, as soft starter power supply faults sometimes result from contactor chatter feeding back into the control circuit. Inspect the 24 VDC auxiliary power supply unit feeding the control cabinet to confirm output voltage is within ±5% tolerance; an undersized or aging SMPS is a common upstream cause of ATS48 power board degradation.

For installations where the ATS48C drives critical pump or fan loads, consider stocking the ATS48 thermistor input module and motor protection relay (such as the Schneider Electric LR9 series) as companion spares. These components share the same maintenance cycle and are frequently replaced together during major overhauls. Additionally, the ATS48 keypad display unit (VW3A58101) should be tested after any power supply board replacement to confirm HMI communication is restored and parameter sets are intact.

Terminal blocks and Phoenix Contact or Schneider Linergy terminal strips inside the control cabinet should be re-torqued to specification during this maintenance event. Loose terminals are a leading cause of intermittent power supply faults that are misdiagnosed as board failures. Finally, inspect the cabinet cooling fan and filter mats — thermal management is the single most impactful factor in ATS48 power supply board longevity.

Strategic Replacement Solutions

The ATS48C series has been in service in global industrial facilities for over two decades. Many installations running ATS48C21Q, ATS48C25Q, ATS48C32Q, ATS48C41Q, or larger frame variants are now operating beyond their original design lifecycle, yet replacement of the entire soft starter is often cost-prohibitive or logistically complex due to panel re-engineering requirements. The ATS48C 16250850112A08 power supply board provides a targeted, cost-effective repair path that restores full soft starter functionality without requiring panel redesign, motor recabling, or PLC parameter reconfiguration.

Using an original OEM board — rather than a third-party repair service or counterfeit substitute — ensures that the ATS48C’s internal diagnostics, fault logging, and protection thresholds remain calibrated to factory standards. This is particularly critical in applications where the soft starter’s electronic shear pin, motor thermal protection, and phase loss detection functions are relied upon as primary motor protection layers. A non-original board may restore basic operation while silently disabling these protective functions, creating latent safety risks.

For facilities managing a fleet of ATS48C soft starters across multiple production lines, establishing a strategic spare parts inventory with at least one ATS48C 16250850112A08 board per five installed units is a recognized best practice in industrial reliability engineering. This ratio balances carrying cost against the risk of extended lead times during supply chain disruptions, which have become increasingly common for legacy automation components.
