Schneider ATS480D62Y Original Industrial Spare ATS480 Compatible: Ensuring System Stability in Demanding Environments

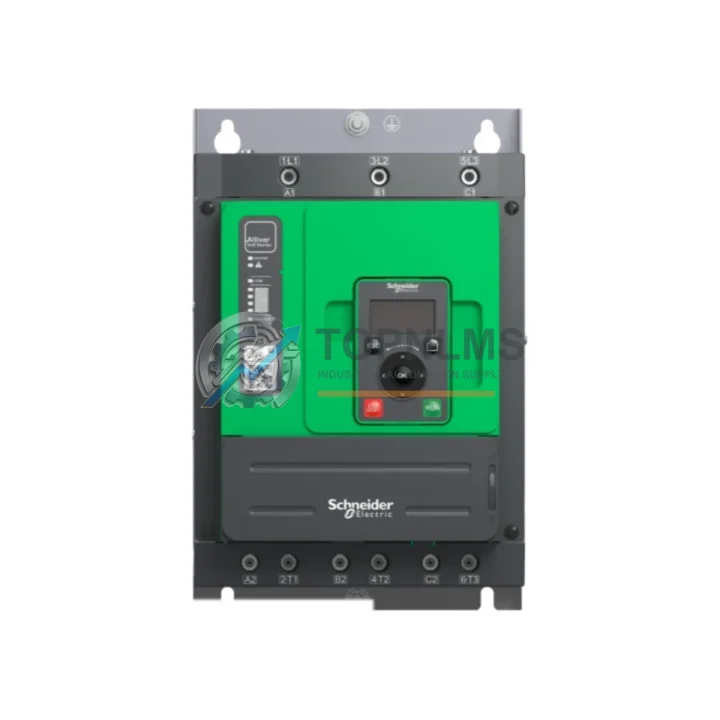

The Schneider Electric ATS480D62Y is a genuine original soft starter from the Altivar ATS480 series, rated at 30kW / 62A for three-phase supply voltages of 380–480V AC. Designed for heavy-duty industrial motor control applications, this unit delivers smooth motor starting and stopping, significantly reducing mechanical stress on drive trains, pump systems, conveyor belts, and compressor assemblies. For maintenance engineers managing aging control systems or executing planned shutdowns, having a verified original ATS480D62Y in your spare parts inventory is a critical risk-mitigation measure that directly reduces unplanned downtime exposure.

In modern industrial facilities — from automotive assembly lines to water treatment plants and petrochemical processing units — soft starters are among the most frequently replaced motor control components. The ATS480D62Y occupies a central role in motor protection circuits, and its failure can cascade into broader system outages. Sourcing an original replacement unit in advance, rather than reactively during a breakdown, is the cornerstone of any mature preventive maintenance strategy.

Critical Technical Specs

Preventive Maintenance Strategy

When a soft starter like the ATS480D62Y is flagged for replacement during a scheduled shutdown or condition-based maintenance review, experienced maintenance planners treat the event as an opportunity to audit the entire motor control circuit. A soft starter does not operate in isolation — it is embedded within a broader electrical and control architecture, and the health of surrounding components directly affects the longevity of the replacement unit.

During the same maintenance window, engineers should inspect the upstream circuit breaker or motor protection relay (such as the Schneider Electric GV2 or GV3 series) to confirm that overcurrent protection settings remain calibrated to the motor’s full-load amperage. A mismatched protection relay can allow sustained overcurrent conditions that shorten the life of a new soft starter within months of installation.

The bypass contactor — typically a Schneider LC1D or TeSys D series contactor — should be replaced or at minimum bench-tested during the same intervention. In ATS480 installations, the bypass contactor engages after the motor reaches full speed, and a worn or sticky contactor can cause arcing events that damage the soft starter’s thyristor stack. Replacing the ATS480D62Y without servicing the bypass contactor is a common and costly oversight.

Equally important is the condition of the control power supply module. Many ATS480 installations draw control voltage from a dedicated 24VDC SMPS (switched-mode power supply) or a 110V AC transformer. Voltage fluctuations or ripple from an aging power supply can corrupt the soft starter’s internal logic and trigger nuisance faults. Verifying or replacing the control power source — such as a Schneider Electric Phaseo ABL8 series power supply — is a low-cost step that protects the investment in the new ATS480D62Y.

The I/O wiring and terminal blocks connecting the soft starter to the PLC or DCS should be inspected for oxidation, loose crimps, and insulation degradation. Phoenix Contact or Weidmüller terminal blocks in motor control cabinets are frequently overlooked during soft starter replacements, yet corroded terminals are a leading cause of intermittent fault signals and false trips. A full terminal inspection and re-torque procedure takes less than 30 minutes and can prevent weeks of diagnostic headaches post-commissioning.

If the installation includes a fieldbus communication module — for example, a VW3A3608 EtherNet/IP adapter or a VW3A3607 Modbus TCP module — verify firmware compatibility with the replacement ATS480D62Y unit. Communication module firmware mismatches are a known source of integration delays when swapping soft starters in networked motor control centers (MCCs).

For facilities running Schneider Electric Modicon M340 or M580 PLC platforms, the ATS480D62Y integrates natively via Modbus RTU or EtherNet/IP, enabling real-time monitoring of motor current, thermal state, and fault history directly from the PLC HMI. During the replacement, update the PLC program’s device address mapping and verify that the SCADA or HMI screen — whether a Magelis HMIGTO series panel or a PC-based Wonderware/Aveva system — correctly reflects the new unit’s diagnostic registers. This step is often deferred and later causes confusion during the next fault event.

Finally, review the motor thermistor or PTC probe wiring connected to the ATS480D62Y’s thermistor input. A damaged or open-circuit thermistor will either disable motor thermal protection entirely or trigger continuous fault codes on the new unit. Replacing the thermistor probe at the same time as the soft starter is a best practice that adds minimal cost but eliminates a common post-replacement fault scenario.

Strategic Replacement Solutions

The ATS480D62Y is the designated modern replacement for the legacy ATS22D62Q and ATS48D62Q soft starters, both of which have reached end-of-life status in Schneider Electric’s product lifecycle. Facilities still operating these older units face increasing risk: spare parts availability is declining, firmware support has ended, and the probability of a critical failure with no available replacement is rising each year.

Migrating to the ATS480D62Y offers a direct performance upgrade. The ATS480 series introduces enhanced motor protection algorithms, built-in energy measurement functions, and a wider communication protocol ecosystem compared to its predecessors. The physical footprint is compatible with standard IEC motor control cabinet layouts, and the terminal arrangement follows the same logical structure as the ATS22 and ATS48 series, reducing rewiring time during a like-for-like swap.

For maintenance teams managing multi-motor facilities, a strategic approach is to standardize on the ATS480 platform across all soft starter positions in the plant. This reduces the number of spare part SKUs that must be stocked, simplifies technician training, and enables cross-utilization of spare units across different motor circuits. A single ATS480D62Y held in the maintenance store can serve as a hot spare for any 30kW motor circuit in the facility, dramatically reducing the mean time to repair (MTTR) for motor-related outages.

From a procurement perspective, sourcing the ATS480D62Y as a verified original unit — rather than a grey-market or counterfeit substitute — is non-negotiable for facilities operating under ISO 9001 quality management systems or IEC 61511 functional safety frameworks. Counterfeit soft starters have been documented to fail within weeks of installation, void equipment warranties, and in extreme cases, cause motor damage that far exceeds the cost of the original spare part.

Support FAQ

Q1: Is the ATS480D62Y a direct drop-in replacement for the ATS22D62Q or ATS48D62Q?
Yes, in most standard applications. The ATS480D62Y shares the same power rating (30kW / 62A) and is designed as the functional successor to the ATS22 and ATS48 series. Terminal labeling and wiring logic are largely compatible, though a brief review of the ATS480 installation manual is recommended to confirm control circuit wiring, particularly for thermistor and bypass contactor connections.

Q2: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every ATS480D62Y unit shipped from TOPNLMS undergoes a full functional test prior to dispatch, including power-on verification, communication port check, and parameter initialization confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with original packaging and documentation where available.

Q3: How should I verify compatibility before installing the ATS480D62Y in my existing control cabinet?
Confirm the motor’s full-load current does not exceed 62A and that the supply voltage is within the 380–480V AC range. Check the control voltage source (110V or 230V AC) against the ATS480D62Y’s control circuit input. If a bypass contactor is present, verify its coil voltage and contact rating. For networked installations, confirm the fieldbus protocol and module firmware version before commissioning.

Q4: What is the recommended spare parts inventory strategy for facilities with multiple ATS480 soft starters?
For facilities with 5 or more ATS480 units installed, maintaining at least one spare unit per power rating tier is recommended. For critical motor circuits (cooling water pumps, compressors, conveyor drives), a dedicated hot spare stored in the maintenance room reduces MTTR to under 2 hours. Annual condition monitoring — including thermal imaging of the control cabinet and current signature analysis — can extend the operational life of installed units and optimize the timing of planned replacements.
