Schneider ABL6TS25U Replacement/Upgrade for ABL6 Series

Product Overview

Schneider ABL6TS25U Replacement/Upgrade for ABL6 Series: Smooth Transition to Modern Control Power

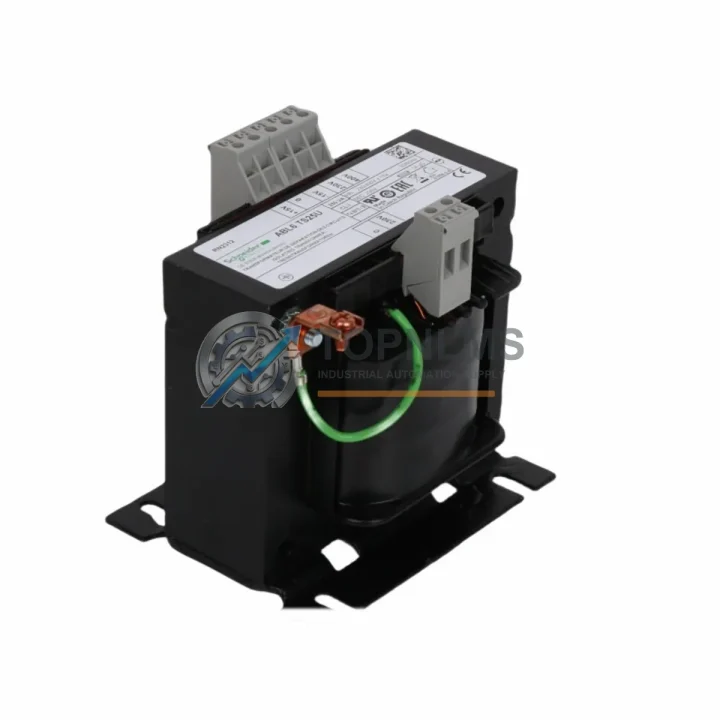

The Schneider Electric ABL6TS25U is a 250VA, 24V AC single-phase control transformer belonging to the proven ABL6 Series — a platform widely deployed across industrial control panels, machine tool cabinets, and process automation systems throughout manufacturing facilities worldwide. As legacy control architectures age and OEM support windows narrow, procurement teams and maintenance engineers increasingly face the challenge of sourcing a reliable, drop-in replacement that preserves existing wiring layouts, DIN-rail footprints, and panel space allocations without triggering a full cabinet redesign.

At TOPNLMS, we stock the ABL6TS25U as a direct replacement and upgrade solution for facilities transitioning away from discontinued or end-of-life transformer variants within the ABL6 family. Whether your existing installation relies on an older ABL6TS16U (160VA variant) being uprated for expanded I/O loads, or you are replacing a failed unit in a Modicon M340 or Modicon Premium PLC control cabinet, the ABL6TS25U integrates without modification to primary wiring, secondary output circuits, or protective earth bonding.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful control transformer replacement rarely occurs in isolation. In most ABL6-based control cabinets, the ABL6TS25U powers the 24V AC bus that feeds a range of downstream components. During a planned retrofit or emergency replacement, engineers typically audit and may simultaneously replace or verify the following associated components to ensure system integrity:

The ABL7RE2402 and ABL7RE2403 regulated SMPS power supply modules are frequently installed alongside the ABL6TS25U in hybrid cabinets where both AC and DC 24V rails are required — for example, when Modicon M340 CPU modules and their associated BMX DDI 1602 digital input modules draw from a common DC bus while relay output circuits remain on AC. Verifying that the SMPS modules are correctly rated after uprating the transformer prevents nuisance tripping on inrush.

In Modicon Premium and Quantum legacy architectures, the control transformer typically powers the backplane of TSX RKY 8EX or 140 XBP 010 00 racks. When migrating from a Quantum rack to a Modicon M580 architecture, the ABL6TS25U’s 250VA capacity comfortably supports the BMEP582040 CPU module and associated BMXDDO1602 discrete output modules during the transition period, allowing phased migration without a full power infrastructure overhaul.

Communication continuity is equally critical. If the legacy system used a TSX SCY 21601 serial communication module or a 140 NOE 771 10 Ethernet module, the replacement control transformer must maintain stable 24V AC output under variable load conditions — particularly during network polling cycles. The ABL6TS25U’s 250VA rating provides adequate headroom for these communication modules without voltage sag.

For installations incorporating Magelis HMIGTO series HMI panels powered from the same 24V AC rail, the increased capacity of the ABL6TS25U over smaller ABL6 variants ensures that display backlight inrush and touchscreen controller loads do not cause voltage dips that could reset the PLC CPU. Similarly, XPSAF5130 safety relay modules and XMLA010A2S11 pressure sensors wired into the same control circuit benefit from the transformer’s improved load regulation.

Where signal isolation is required between the transformer secondary and sensitive analog I/O — such as BMX AMI 0410 analog input modules — inline signal isolators or surge protection devices can be installed on the secondary terminals without any modification to the ABL6TS25U’s terminal block layout, preserving the original wiring harness.

Retrofit Guidance FAQ

Q: Can I replace an ABL6TS16U (160VA) with the ABL6TS25U without rewiring?
A: Yes. Both units share the same terminal designation (primary L1/L2/N, secondary V1/V2) and DIN-rail mounting profile. The ABL6TS25U is a direct mechanical and electrical replacement. No wiring changes are required; the increased VA rating simply provides additional load headroom.

Q: Is the primary voltage configurable for 230V single-phase vs. 400V three-phase applications?
A: The ABL6TS25U supports both 230V AC (single-phase, terminals 1-2) and 400V AC (phase-to-phase, terminals 1-3) primary connections via the onboard terminal block. Confirm your site supply voltage before installation and connect accordingly. No internal link changes are required for this model.

Q: Will the ABL6TS25U fit in the existing panel cutout and DIN-rail slot?
A: Yes. The ABL6 Series uses a standardized housing across the 100VA–400VA range. The ABL6TS25U occupies the same DIN-rail width as the ABL6TS16U and ABL6TS10U, making it a space-neutral replacement in existing control cabinets.

Q: What communication protocols does this transformer support?
A: As a power supply component, the ABL6TS25U does not participate in data communication protocols (Modbus, Profibus, EtherNet/IP, etc.). It provides stable 24V AC power to the control circuit. All communication modules in the system connect to their respective network infrastructure independently.

Q: How do I verify the replacement unit before installation?
A: Each ABL6TS25U shipped by TOPNLMS undergoes pre-shipment functional testing: primary-to-secondary voltage ratio verification, insulation resistance check (≥100MΩ at 500V DC), and no-load output voltage measurement. A test report is available upon request. We recommend performing an in-panel no-load energization test before connecting downstream loads.

Q: What is the expected downtime for a like-for-like replacement?
A: For a trained electrician performing a direct ABL6TS16U-to-ABL6TS25U swap, typical replacement time is 15–30 minutes including isolation, terminal disconnection, unit swap, reconnection, and re-energization verification. No PLC program changes are required.

Warranty Assurance

Every ABL6TS25U supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our warranty commitment covers manufacturing defects, premature failure under rated operating conditions, and output voltage deviation beyond ±5% of nominal under rated load.

Pre-shipment inspection: Each unit is individually tested for primary-to-secondary voltage ratio, insulation integrity, and physical condition before packaging. Units failing inspection are quarantined and not shipped.

Replacement support: In the event of a warranty claim, TOPNLMS will dispatch a replacement unit within 3 business days of claim confirmation. Defective units are returned freight-collect for inspection. No-fault returns are accepted within 30 days of receipt for units in original, unused condition.

After-sales response: Our technical team is reachable via email at [email protected] or by phone at +86 18359293191 for pre-purchase compatibility verification, installation guidance, and post-delivery support. Response time is within 1 business day.

Procurement assurance: Stock is held at our Xiamen warehouse and available for immediate dispatch. Lead time for in-stock units is 1–3 business days domestic (China) and 5–10 business days international via DHL/FedEx/UPS. Bulk orders and long-term supply agreements are supported with priority allocation.
