Schneider 140-DAI-540-00 Replacement/Upgrade for Modicon Quantum

Product Overview

Schneider 140-DAI-540-00 Replacement/Upgrade for Modicon Quantum: Seamless Migration & Legacy System Compatibility

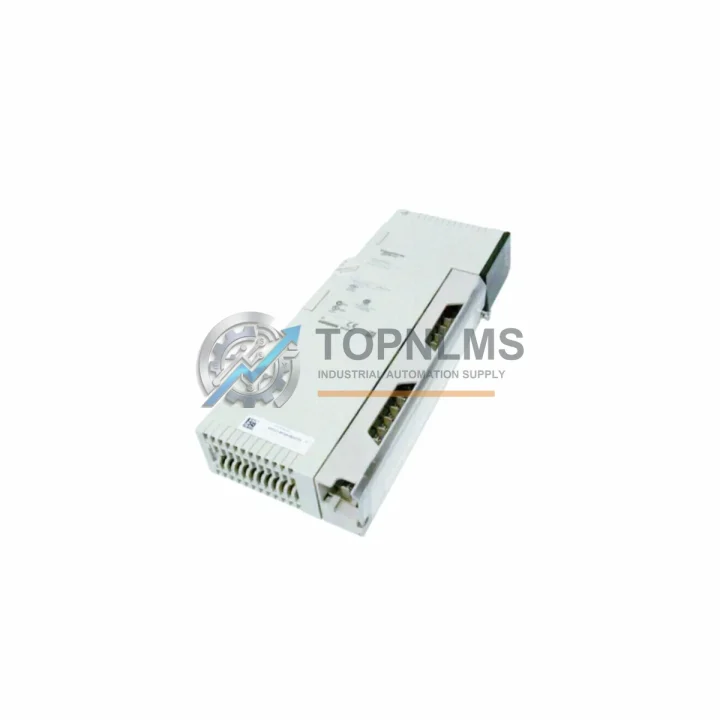

The Schneider Electric 140-DAI-540-00 is a 32-channel, 24VDC discrete input module designed for the Modicon Quantum automation platform. As industrial facilities face increasing pressure to maintain aging control architectures or migrate to modern equivalents, this module remains a critical component in thousands of active DCS and PLC installations worldwide. Whether you are sourcing a direct replacement for a failed unit, building a spare-parts buffer, or planning a phased system upgrade, the 140-DAI-540-00 offers a proven, field-validated solution that minimizes engineering rework and production downtime.

The Modicon Quantum platform was engineered for high-availability process control environments — oil & gas, water treatment, power generation, and heavy manufacturing. The 140-DAI-540-00 slots directly into the 140 XBP series backplane (e.g., 140-XBP-010-00, 140-XBP-016-00), sharing the same rack infrastructure as companion modules such as the 140-DAO-853-00 discrete output module and the 140-ACI-030-00 analog current input module. This physical and electrical compatibility means no rack modification, no new power budget calculation, and no changes to existing field wiring terminations when performing a like-for-like swap.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an end-of-life control system to a Modicon Quantum architecture involves more than swapping a single I/O module. During the retrofit process, engineers typically address the entire I/O subsystem, communication backbone, and power distribution simultaneously to avoid incremental downtime events.

When replacing the 140-DAI-540-00 in an existing Quantum rack, the 140-XBP-010-00 backplane must be verified for slot availability and bus integrity. If the rack is being expanded or replaced as part of a broader upgrade, the 140-CPS-111-00 power supply module should be evaluated to confirm it can support the additional current draw from newly added I/O modules. In many brownfield installations, the existing power supply is already operating near its rated capacity, and adding discrete input channels without a power audit is a common source of intermittent faults.

On the communication side, the 140-DAI-540-00 reports its channel states through the Quantum backplane to the CPU — typically a 140-CPU-651-60 or 140-CPU-671-60 processor module. If the migration also involves upgrading from Modbus Plus to Ethernet/IP, the 140-NOE-771-11 Ethernet communication module must be added to the rack to bridge the I/O data to the plant SCADA or DCS historian. This is a common step when integrating Quantum I/O into a modern Aveva or Ignition SCADA environment.

Field wiring from sensors and limit switches connects to the 140-DAI-540-00 via a 140-XTS-002-00 terminal strip or equivalent HE10 pre-wired cable assembly. During a migration from older Modicon 984 systems, the original screw-terminal field wiring must be re-terminated to the HE10 connector format — a step that is often underestimated in project scheduling. Pre-fabricated cable assemblies compatible with the 140-DAI-540-00 front connector significantly reduce field termination time and the risk of wiring errors.

For applications requiring signal conditioning or isolation between field devices and the Quantum I/O bus — particularly in environments with high electrical noise from variable frequency drives or large motor starters — a signal isolator barrier (such as those in the Schneider Electric Preventa or Phoenix Contact MINI Analog series) is recommended upstream of the discrete input module. This protects the 140-DAI-540-00 from transient overvoltage events that are common in heavy industrial environments.

If the upgrade scope includes replacing the HMI layer, the Magelis HMIGTO series touchscreen panels integrate natively with the Modicon Quantum platform via Modbus TCP, providing a modern operator interface without requiring changes to the PLC program logic. This allows the I/O migration and HMI upgrade to proceed independently, reducing project risk.

Retrofit Guidance FAQ

Q: Can the 140-DAI-540-00 replace a 140-DAI-353-00 or 140-DAI-740-00 in the same rack slot?
A: The 140-DAI-540-00 is a 32-channel 24VDC module. The 140-DAI-353-00 is a 16-channel 115VAC module and the 140-DAI-740-00 is a 32-channel 125VDC module. Physical slot dimensions are identical across the Quantum I/O range, so the module will fit mechanically. However, the input voltage rating and channel count differ — the PLC program I/O mapping and field wiring must be reviewed and updated accordingly before substitution.

Q: Is the 140-DAI-540-00 compatible with Unity Pro / Control Expert programming software?
A: Yes. The module is fully supported in Schneider Electric’s Unity Pro (now rebranded as EcoStruxure Control Expert). The I/O configuration is performed through the hardware catalog in the software, and the module’s channel data is mapped to the application program via the standard Quantum I/O addressing scheme (%I bits).

Q: What wiring changes are required when migrating from a Modicon 984 system?
A: The Modicon 984 platform used screw-terminal I/O modules with direct field wiring. The Quantum 140-DAI-540-00 uses a 40-pin HE10 (MIL-C-83503) front connector. Field wiring must be re-terminated to a compatible terminal block adapter or pre-wired cable assembly. No changes to the field sensor wiring beyond the panel are required if the sensor voltage (24VDC) matches.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, use Control Expert’s online mode to monitor the %I bit states in real time. Each of the 32 input channels maps to a discrete bit address. Activate each field device individually and confirm the corresponding bit toggles in the software. The module’s LED indicators on the front face also provide a visual channel-by-channel status during commissioning.

Q: What is the communication protocol used by this module?
A: The 140-DAI-540-00 communicates with the Quantum CPU via the internal Quantum backplane bus — it does not have an independent external communication port. The CPU then exposes the I/O data over Modbus Plus (via the 140-NOM-211-00 or similar) or Modbus TCP/Ethernet (via the 140-NOE-771-xx series), depending on the network architecture of the installation.

Warranty Assurance

Every 140-DAI-540-00 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on self-test, channel continuity check, and backplane interface validation. Units that do not pass our pre-shipment inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. We maintain buffer stock of high-demand Modicon Quantum modules — including the 140-DAI-540-00 — to support rapid replacement dispatch without lead-time delays.

For urgent plant-down situations, expedited shipping from our Xiamen warehouse is available to most destinations in Asia, the Middle East, and Europe. We work with DHL Express, FedEx International Priority, and SF Express international services to meet critical delivery windows.

All units are shipped in anti-static packaging with individual serial number documentation. A test report is available upon request for quality-critical procurement processes.
