ROBICON A5E01708486 Replacement for Perfect Harmony MV Drive

Product Overview

ROBICON A5E01708486 Replacement for Perfect Harmony MV Drive: Smooth Migration & Legacy System Compatibility

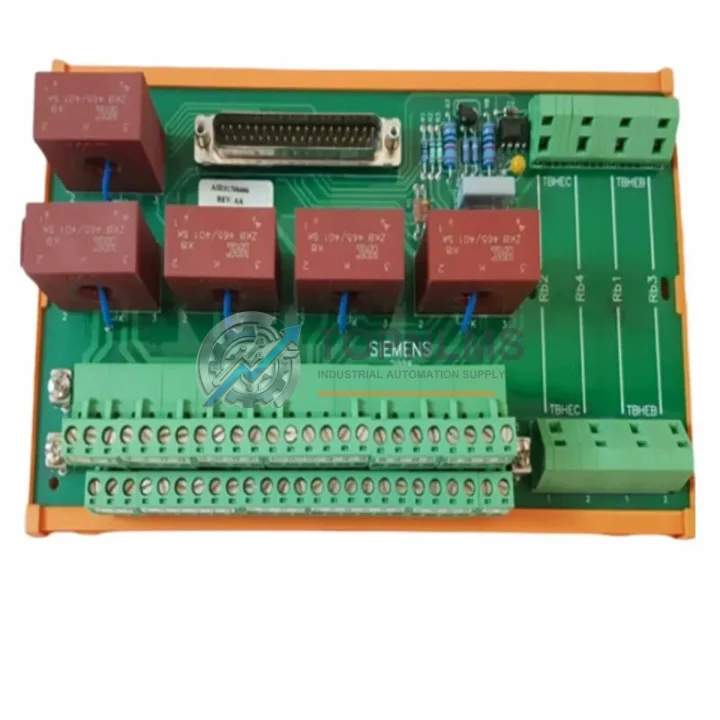

The ROBICON A5E01708486 Signal Control Board is a critical component of the Siemens ROBICON Perfect Harmony medium-voltage (MV) drive series — a platform widely deployed across power generation, oil & gas, water treatment, mining, and heavy industrial applications. As the Perfect Harmony series ages and OEM support windows narrow, facilities engineers and procurement teams face increasing pressure to source verified replacement boards that maintain full system compatibility without requiring costly drive replacements or extended shutdowns.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find MV drive control boards including the A5E01708486. Every unit undergoes pre-shipment functional verification, and all orders are backed by a 12-month replacement warranty. Whether you are executing a like-for-like swap on a failed board or building a strategic spare inventory ahead of a planned outage, our stock is ready to ship from Xiamen within 1–3 business days.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Perfect Harmony drive migration rarely involves a single board in isolation. In practice, field engineers replacing the A5E01708486 Signal Control Board often find it necessary to simultaneously address adjacent components that have experienced equivalent wear or obsolescence. During the cell-level replacement process, it is common to inspect and potentially replace the Perfect Harmony Power Cell Gate Driver Board, which works in tandem with the signal control board to regulate IGBT switching sequences. If the drive’s communication architecture relies on the Perfect Harmony Fiber Optic Interface Module, verifying the integrity of those fiber links before commissioning the new board is strongly recommended.

For facilities running multiple Perfect Harmony drives on a shared MCC bus, the Perfect Harmony Master Control Board (MCB) and associated I/O Interface Modules should be reviewed as part of the broader upgrade scope. Drives that communicate upstream to a DCS or SCADA system via PROFIBUS DP or Modbus RTU communication cards will require no protocol reconfiguration when replacing the A5E01708486, as the signal board does not handle the higher-level communication stack — that remains managed by the drive’s main controller.

Where the Perfect Harmony drive is integrated into a Siemens SIMATIC S7-300 or S7-400 PLC control architecture, the replacement of this board does not require any PLC program modification, provided the drive’s parameter set is preserved via the STARTER or SCOUT commissioning software prior to the swap. Engineers working on older installations may also need to source a compatible programming cable or PC adapter to re-upload drive parameters post-replacement. Additionally, if the control cabinet houses a Siemens SITOP power supply module supplying 24 VDC to the control logic, confirming its output stability before powering up the replacement board is a recommended pre-commissioning step.

For sites planning a phased modernization rather than a full drive replacement, pairing the A5E01708486 with a verified spare Perfect Harmony Bypass Contactor Module and a replacement Cell Capacitor Bank provides a comprehensive cell-level refurbishment that can extend drive service life by 5–10 years without the capital expenditure of a new drive installation.

Retrofit Guidance FAQ

Q: Can I replace the A5E01708486 without modifying the existing wiring harness?
A: Yes. The A5E01708486 is a plug-and-replace board designed to fit the standard Perfect Harmony cell rack slot. The existing connectors and harness are fully compatible. No rewiring is required under normal replacement conditions.

Q: Do I need to re-program the drive after installing this board?
A: In most cases, no. The signal control board does not store drive parameters. However, we strongly recommend backing up the drive’s parameter set using STARTER or SCOUT software before the swap, and verifying parameter integrity after installation. If the drive’s main controller or memory card has also been replaced, a full parameter restore will be necessary.

Q: Is this board compatible with all revisions of the Perfect Harmony series?
A: The A5E01708486 is designed for specific revisions of the Perfect Harmony MV drive platform. Please provide your drive’s full nameplate data (including serial number and firmware version) when placing your order so our technical team can confirm revision compatibility before shipment.

Q: What communication protocols does this board support?
A: The A5E01708486 Signal Control Board operates on the drive’s internal fiber-optic backplane communication bus. It does not directly interface with external fieldbus protocols such as PROFIBUS, Modbus, or PROFINET — those are handled by the drive’s master controller and communication option cards, which remain unaffected by this replacement.

Q: How much physical space does the replacement require?
A: The board occupies the same cell rack slot as the original. No additional cabinet space or mechanical modification is required. Ensure the cell is de-energized and properly isolated per your site’s LOTO procedures before installation.

Q: What if the replacement board does not resolve the fault condition?
A: Our 12-month warranty covers functional defects. If the installed board does not resolve the fault, contact our technical support team at [email protected]. We will assist with fault diagnosis and, if the board is confirmed defective, arrange a replacement at no additional cost.

Warranty Assurance

Every ROBICON A5E01708486 Signal Control Board supplied by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Our pre-shipment process includes visual inspection, functional bench testing, and packaging verification to ensure the unit arrives in field-ready condition.

If a warranty claim arises, our after-sales team responds within 24 business hours. We support return merchandise authorization (RMA) processing, and confirmed defective units are replaced from stock — not repaired and returned — to minimize your downtime. For time-critical applications, we can arrange advance replacement shipment upon request.

Procurement teams can request a test report, inspection certificate, or packing list prior to shipment. We ship globally via DHL, FedEx, and UPS with full tracking. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard for all international orders.

For volume orders, blanket purchase agreements, or consignment stock arrangements, please contact our sales team directly to discuss pricing and lead time commitments.
