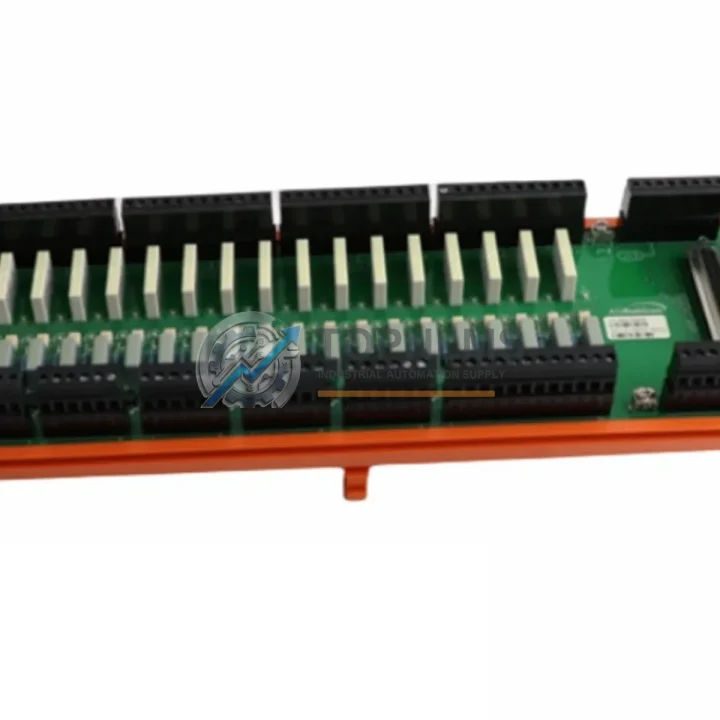

ROBICON A5E01649325 Ruggedized Gate Signal Breakout Module

Product Overview

ROBICON A5E01649325 Ruggedized Gate Signal Breakout Module: Industrial Resilience for Harsh Drive Environments

The ROBICON A5E01649325 is a precision-engineered gate signal breakout board designed for the Perfect Drives CHB (Cascaded H-Bridge) medium-voltage variable frequency drive platform. Built to operate continuously in the most demanding industrial environments — including high-temperature motor rooms, dusty mining galleries, vibration-intensive steel mills, and EMI-saturated power substations — this module delivers the signal integrity and thermal stability that mission-critical drive systems require.

In medium-voltage VFD architectures, the gate signal distribution layer is the nerve center of power conversion. The A5E01649325 routes precise firing pulses to IGBT or GTO power cells within each CHB inverter cell stack, ensuring synchronized switching across all phase legs. Any degradation in this signal path — caused by thermal cycling, moisture ingress, or electromagnetic interference — can result in cell misfires, harmonic distortion, or catastrophic drive trips. The A5E01649325 is engineered to eliminate these failure modes, providing stable, noise-immune gate drive signals under continuous industrial load.

Rugged Specifications Table

Comprehensive Protection Solutions

The A5E01649325 does not operate in isolation — it is a critical node within a broader ecosystem of protection, control, and communication hardware. In a fully configured Perfect Drives CHB medium-voltage drive cabinet, this gate signal breakout board works in concert with the ROBICON A5E01649326 cell control board, which manages individual H-bridge cell health and fault reporting. Upstream, the ROBICON A5E00414765 main control board coordinates speed reference, torque limits, and protection logic, issuing firing commands that the A5E01649325 faithfully distributes to each power cell.

On the power supply side, the ROBICON A5E01649320 auxiliary power supply module provides the isolated low-voltage rails that the gate drive circuitry depends on. Voltage fluctuations or ripple on these rails directly affect gate pulse timing; the A5E01649325 is designed to maintain signal fidelity even under marginal supply conditions. For fiber-optic gate signal transmission variants — common in high-voltage cell stacks where galvanic isolation is mandatory — the board interfaces with ROBICON fiber optic transmitter/receiver assemblies to eliminate ground loop interference entirely.

In the broader control cabinet, the A5E01649325 coexists with Siemens SIMATIC S7-300 and S7-400 PLC I/O modules handling process interlocks and safety logic, PROFIBUS DP communication modules linking the drive to the plant DCS, and Siemens SITOP PSU300M power supply units conditioning 24 VDC control power. Safety-rated Siemens 3SK1 safety relay modules monitor emergency stop and safe torque-off (STO) circuits, while Phoenix Contact PT series surge protection terminal blocks safeguard signal wiring at cabinet entry points. Together, these components form a layered defense against the electrical and environmental stresses that characterize heavy industrial installations.

Application in Critical Infrastructure

The ROBICON Perfect Drives CHB platform — and by extension the A5E01649325 gate signal breakout board — is deployed across the world’s most demanding process industries. In oil and gas facilities, medium-voltage VFDs drive pipeline compressors and injection pumps in classified hazardous areas, where unplanned downtime translates directly to production loss and safety risk. The A5E01649325 sustains reliable gate signal distribution even in the presence of high ambient temperatures, hydrocarbon vapors, and the intense electromagnetic fields generated by large motor loads.

In underground mining operations, CHB drives power conveyor systems, hoists, and ventilation fans in environments characterized by coal dust, high humidity, and mechanical shock. The board’s robust PCB construction and conformal coating options resist moisture and particulate ingress that would compromise lesser designs. Power generation plants — both thermal and hydroelectric — rely on medium-voltage drives for boiler feed pumps, cooling water pumps, and induced draft fans, where continuous 24/7 operation is non-negotiable. A failed gate signal board in this context can force a unit derating or full shutdown, with cascading consequences for grid stability.

Water and wastewater treatment facilities use CHB drives on large centrifugal pumps and blowers, often in outdoor or semi-outdoor installations subject to wide temperature swings and high humidity. Steel and metals plants present perhaps the harshest environment of all: radiant heat from furnaces, heavy vibration from rolling mills, and pervasive electromagnetic interference from arc furnaces and large rectifiers. In petrochemical and refinery applications, the A5E01649325 supports continuous process drives where any unscheduled stop triggers costly production interruptions and safety reviews. The module is proven in all of these contexts, making it a trusted spare part for maintenance engineers who cannot afford to compromise on signal integrity or system uptime.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
Every A5E01649325 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide full replacement or repair at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit, with no hidden conditions or exclusion clauses for standard industrial use.

Q2: How is each unit tested before shipment?
All A5E01649325 boards undergo a multi-stage inspection protocol prior to dispatch: visual inspection for PCB damage and component integrity, continuity testing across all signal channels, functional verification of gate pulse output paths, and insulation resistance checks. Units sourced as refurbished are additionally subjected to burn-in testing to screen for early-life failures. A full test report is available upon request for quality assurance documentation.

Q3: Is the A5E01649325 compatible with all Perfect Drives CHB variants?
The A5E01649325 is designed for the ROBICON Perfect Drives CHB medium-voltage VFD platform. Compatibility depends on the specific drive rating, cell configuration, and firmware revision in service. We recommend confirming your drive’s nameplate data and existing board revision before ordering. Our technical team at [email protected] can assist with cross-referencing your drive’s bill of materials to confirm fitment and avoid costly mismatches.

Q4: Can you support long-term or repeat supply of this part?
Yes. TOPNLMS maintains dedicated inventory of ROBICON Perfect Drives spare parts, including the A5E01649325, to support both planned maintenance programs and emergency breakdown scenarios. We accommodate blanket purchase orders, consignment stock arrangements, and priority allocation agreements for customers with high-availability requirements. Long-term supply continuity is a core commitment — contact us to discuss a supply framework tailored to your maintenance schedule and criticality tier.
