REXROTH VT-VSPA1-1-11 Replacement for VT-VSPA1 Series

Product Overview

REXROTH VT-VSPA1-1-11 Replacement for VT-VSPA1 Series: Seamless Transition & Compatibility Upgrade

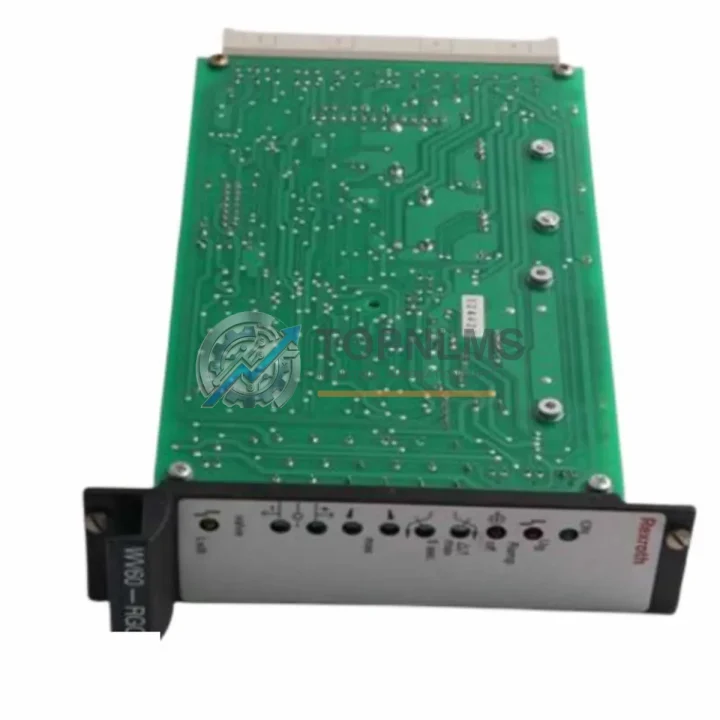

The REXROTH VT-VSPA1-1-11 is a single-axis analog proportional valve amplifier card designed for precise electrohydraulic control in demanding industrial environments. As legacy hydraulic control systems age and original REXROTH VT-VSPA1 series cards approach end-of-life or become increasingly difficult to source, plant engineers and maintenance teams face mounting pressure to maintain uptime without triggering a full system overhaul. The VT-VSPA1-1-11 serves as the direct replacement and upgrade solution for aging VT-VSPA1 series amplifier cards, offering full backward compatibility with existing wiring harnesses, DIN rail mounting configurations, and analog command signal interfaces.

Whether your facility is running a legacy REXROTH hydraulic press, injection molding machine, die casting unit, or continuous casting line, the VT-VSPA1-1-11 is engineered to slot into your existing control cabinet with minimal modification. The card accepts standard ±10 V analog command signals and interfaces directly with proportional directional control valves, proportional pressure valves, and proportional flow control valves already installed in your system. Engineers migrating from earlier VT-VSPA1 variants — including the VT-VSPA1-1-10 and VT-VSPA1-1-12 — will find that the command signal scaling, enable logic, and ramp function parameters remain consistent, dramatically reducing commissioning time on the shop floor.

For facilities operating REXROTH Syhnc or older analog hydraulic axis controllers, the VT-VSPA1-1-11 integrates without requiring PLC program rewrites. The card’s onboard potentiometer adjustments for gain, offset, ramp-up, and ramp-down mirror the layout of predecessor models, allowing technicians familiar with the VT-VSPA1 platform to complete a swap-out in under two hours. Power supply requirements remain at 24 VDC, compatible with standard REXROTH power supply modules and third-party 24 V rail-mount PSUs already present in most control cabinets.

In multi-axis hydraulic systems, the VT-VSPA1-1-11 is frequently deployed alongside the REXROTH VT-VSPA2 dual-axis amplifier card for mixed-axis architectures, and pairs naturally with the VT-HNC100 digital axis controller for facilities transitioning from pure analog to hybrid digital-analog control strategies. Systems using REXROTH 4WRPH or 4WRPEH series proportional directional valves will find the VT-VSPA1-1-11’s output stage fully compatible with the valve’s integrated electronics, eliminating the need for external signal conditioning modules.

For plants upgrading from older REXROTH VT-SR2 or VT-SR4 series servo amplifier cards, the VT-VSPA1-1-11 provides a cost-effective intermediate migration path before committing to a full digital drive platform such as the REXROTH IndraDrive or VT-HACD series. This staged approach allows maintenance teams to stabilize production first, then plan a phased digital migration without emergency downtime. The card’s analog architecture also ensures compatibility with legacy REXROTH RA/RD series hydraulic power units and their associated valve manifolds, which remain in widespread use across steel, automotive, and heavy equipment manufacturing facilities.

Signal isolation and EMC performance of the VT-VSPA1-1-11 meet the requirements of industrial environments with significant electrical noise from variable frequency drives, servo motors, and high-current switching equipment. The card’s shielded analog input stage minimizes interference from adjacent VFD modules such as the REXROTH IndraDrive Cs or third-party drives sharing the same control cabinet, ensuring stable valve positioning even in electrically noisy environments.

From a procurement standpoint, TOPNLMS maintains verified stock of the VT-VSPA1-1-11 with pre-shipment functional testing on each unit. Every card undergoes bench verification of command signal response, enable logic, ramp function, and output current linearity before dispatch. Units are shipped in anti-static packaging with full documentation. Standard lead time from Xiamen is 3–7 business days for international express delivery, with DHL, FedEx, and UPS options available. All units are covered by a 12-month warranty from the date of shipment, with direct replacement support for confirmed defective units.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VT-VSPA1-1-11 retrofit rarely involves the amplifier card alone. In practice, migration projects typically require a coordinated review of adjacent components to ensure system-level compatibility. The REXROTH VT-VSPA2 dual-axis proportional amplifier is commonly evaluated in parallel when a second hydraulic axis shares the same control cabinet, allowing engineers to standardize on a single amplifier platform. For systems where the existing terminal block wiring is aged or non-standard, REXROTH VT-SWKD plug-in connector kits provide a direct mating solution for the VT-VSPA1-1-11’s edge connector, eliminating the need to re-terminate field wiring.

In hydraulic press and die casting applications, the VT-VSPA1-1-11 is frequently installed alongside REXROTH 4WRPH10 or 4WRPEH10 proportional directional control valves, which are the primary final control elements receiving the amplifier’s output current. Where the existing hydraulic power unit uses a REXROTH VT-SR2 or VT-SR4 servo amplifier card for a high-response servo valve axis, the VT-VSPA1-1-11 handles the lower-bandwidth proportional valve axes in the same cabinet, creating a cost-optimized mixed-performance architecture.

For facilities planning a longer-term migration toward digital hydraulic control, the REXROTH VT-HNC100 digital axis controller can be introduced as an overlay controller above the VT-VSPA1-1-11, using the analog command output of the HNC100 to drive the amplifier card while adding closed-loop position control, diagnostics, and fieldbus connectivity (PROFIBUS, CANopen) without replacing the valve or hydraulic circuit. This approach is particularly effective in automotive body shop and stamping press applications where cycle time optimization is a priority but full hydraulic system replacement is not yet budgeted.

Power supply integrity is critical in proportional valve amplifier installations. REXROTH 24 VDC power supply modules with low ripple output are recommended to prevent instability in the amplifier’s current regulation stage. Signal isolation modules — such as DIN rail-mount galvanic isolators for the ±10 V command signal — are advisable when the PLC analog output and the amplifier card are separated by long cable runs or when the PLC is a different brand with a floating analog output reference. These signal conditioners protect the VT-VSPA1-1-11’s input stage and extend service life in electrically noisy environments.

Retrofit Guidance FAQ

Q: Can I replace my existing VT-VSPA1-1-10 with the VT-VSPA1-1-11 without rewiring?
A: Yes. The VT-VSPA1-1-11 uses the same edge connector pinout and 24 VDC supply as the VT-VSPA1-1-10. The ±10 V command signal wiring, enable input, and solenoid output connections are identical. No rewiring is required in standard installations.

Q: Do I need to modify my PLC program after replacing the amplifier card?
A: No PLC program changes are required. The VT-VSPA1-1-11 accepts the same analog command signal and enable logic as predecessor VT-VSPA1 series cards. Ramp and gain parameters are re-adjusted via onboard potentiometers during commissioning, not via the PLC.

Q: Is the VT-VSPA1-1-11 compatible with PROFIBUS or EtherNet/IP control systems?
A: The VT-VSPA1-1-11 is an analog amplifier card and does not have a native fieldbus interface. It receives its command signal as a ±10 V analog voltage from the PLC’s analog output module. If your PLC communicates via PROFIBUS or EtherNet/IP, the analog output module in the PLC rack handles the protocol conversion — the amplifier card itself requires no fieldbus configuration.

Q: What is the physical footprint of the VT-VSPA1-1-11? Will it fit in my existing control cabinet?
A: The VT-VSPA1-1-11 is a standard REXROTH VT-VSPA1 series card with DIN rail mounting. It occupies the same physical space as predecessor VT-VSPA1 variants. No additional cabinet space or mounting hardware modifications are required for a like-for-like replacement.

Q: How do I verify the replacement card is functioning correctly after installation?
A: After installation, apply 24 VDC supply and activate the enable input. Apply a known analog command signal (e.g., +5 V = 50% command) and verify solenoid current output with a clamp meter. Adjust the gain potentiometer if the valve response does not match the expected flow or pressure. REXROTH’s VT-VSPA1 series commissioning documentation provides the full adjustment procedure.

Q: What if the replacement card is defective on arrival?
A: All units shipped by TOPNLMS are pre-tested before dispatch. In the event of a confirmed defect within the 12-month warranty period, we provide direct replacement support with priority re-shipment. Contact [email protected] with your order number and fault description for immediate assistance.

Warranty Assurance

Every REXROTH VT-VSPA1-1-11 unit supplied by TOPNLMS is backed by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol covers command signal linearity, enable logic response, ramp function operation, and output current accuracy across the full solenoid drive range. Units that do not meet specification are quarantined and not dispatched.

Packaging uses anti-static foam inserts and moisture barrier bags to protect the card’s sensitive analog circuitry during international transit. Each shipment includes a test report summary and basic installation reference. For customers requiring additional documentation such as original REXROTH data sheets or wiring diagrams, our technical team can provide support via email.

In the event of a warranty claim, TOPNLMS commits to a response within 1 business day. Confirmed defective units are replaced with priority dispatch at no additional cost. We do not require the defective unit to be returned before dispatching the replacement in urgent production-down situations, subject to prior agreement.

For bulk procurement, OEM integrators, and MRO stocking programs, TOPNLMS offers volume pricing and extended warranty options. Contact our sales team to discuss consignment stock arrangements, incoming inspection support, and dedicated account management for high-volume industrial automation customers.
