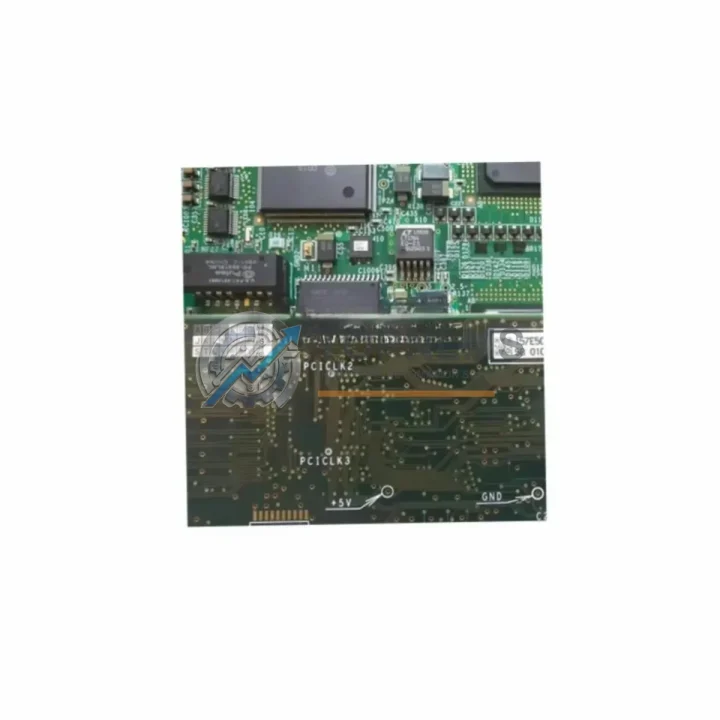

Bosch Rexroth CRF-C0021-04010 Drive Control Board Compatible

Product Overview

Bosch Rexroth CRF-C0021-04010 Drive Control Board Compatible: Sustaining System Stability Through Precision Spare Part Management

The Bosch Rexroth CRF-C0021-04010 is a frequency converter control board designed for use within Bosch Rexroth’s High Voltage Drive series — a platform widely deployed across heavy industrial environments including steel mills, paper manufacturing, mining operations, cement plants, and large-scale HVAC systems. As a core component of the drive’s control architecture, the CRF-C0021-04010 governs signal processing, gate drive logic, feedback loop management, and fault diagnostics. When this board fails or degrades, the entire drive unit becomes inoperable, leading to unplanned downtime that can cost thousands of dollars per hour in lost production.

At TOPNLMS, we maintain ready stock of the CRF-C0021-04010 to support maintenance engineers, MRO procurement teams, and plant operations managers who cannot afford extended lead times on critical drive components. Every unit is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced maintenance engineers understand that a drive control board failure rarely occurs in isolation. The CRF-C0021-04010 operates within a broader drive system where thermal stress, voltage transients, and aging capacitors can progressively degrade multiple components simultaneously. A proactive maintenance strategy — rather than a purely reactive one — significantly reduces the risk of cascading failures and unplanned shutdowns.

When inspecting or replacing the CRF-C0021-04010, it is advisable to simultaneously evaluate the condition of the Bosch Rexroth power supply module that feeds the control board, as undervoltage or ripple on the DC bus can accelerate board-level failures. The gate driver board (often designated as a CRF-G or equivalent series component) should also be checked, since control board faults frequently originate from or propagate to the gate drive stage. If the drive cabinet uses a Bosch Rexroth IGBT module, its thermal interface and clamping torque should be verified during the same maintenance window.

For drives integrated into larger automation architectures, the Rexroth SERCOS or PROFIBUS communication interface card should be inspected for connector oxidation and firmware version compatibility, particularly if the drive communicates with a Rexroth IndraControl L or IndraControl XM controller upstream. Signal integrity issues at the communication layer are a common but overlooked root cause of apparent control board faults.

Within the control cabinet, the 24VDC auxiliary power supply feeding the control electronics deserves attention — a sagging auxiliary rail is a frequent silent contributor to intermittent drive faults. Alongside this, terminal blocks and signal wiring harnesses connecting the CRF-C0021-04010 to encoder feedback, temperature sensors, and I/O expansion modules should be inspected for insulation degradation and loose terminations. If the system uses signal isolators between the drive and the PLC I/O rack, these should be tested for drift, as aging isolators can introduce offset errors that trigger false fault codes on the control board.

Finally, the cooling fan assembly within the drive enclosure — often a separately replaceable component — should be assessed for bearing wear and airflow capacity. Thermal management is the single largest factor in control board longevity, and a degraded fan can reduce board service life by 40–60% under continuous duty cycles.

Procuring the CRF-C0021-04010 alongside these associated components as a planned maintenance kit is a cost-effective strategy that minimizes future emergency procurement costs and reduces total downtime exposure across the maintenance cycle.

Strategic Replacement Solutions

The CRF-C0021-04010 is a board-level replacement component, meaning it can be swapped into an existing Bosch Rexroth HV Drive chassis without requiring full drive replacement. This approach delivers significant cost savings compared to purchasing a complete new drive unit, while preserving the existing cabinet layout, wiring infrastructure, and motor parameter configurations already programmed into the drive.

For plants operating legacy Bosch Rexroth frequency converters that are approaching or past their recommended service intervals, maintaining a strategic inventory of the CRF-C0021-04010 is a recognized best practice in industrial MRO management. A single unplanned drive failure in a critical process line — a compressor, a conveyor, a pump, or a fan — can trigger production losses that far exceed the cost of maintaining a spare board on the shelf.

TOPNLMS supports both single-unit emergency procurement and bulk spare part orders for maintenance departments building strategic buffer stock. Our logistics team ships from Xiamen with standard international express options (DHL, FedEx, UPS) and can provide commercial invoices, packing lists, and HS code documentation to support customs clearance in most destination countries. Lead time for in-stock units is typically 1–3 business days from order confirmation.

For customers replacing a failed board in the field, our technical support team can provide guidance on installation sequence, parameter backup procedures, and post-replacement commissioning checks to ensure the drive returns to full operational status with minimal disruption to the production schedule.

Support FAQ

Q1: How do I confirm the CRF-C0021-04010 is compatible with my specific drive unit?
The CRF-C0021-04010 is designed for Bosch Rexroth High Voltage Drive series frequency converters. Compatibility is confirmed by matching the part number printed on the existing board’s label or the drive’s spare parts list. If you have the drive’s full model number or serial number, our team can cross-reference it against the applicable spare parts documentation before you place an order.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact us at [email protected] with your order number, a description of the fault, and any available fault codes from the drive. We will arrange a replacement or repair within the agreed service timeline.

Q3: Is pre-shipment testing performed on every unit?
Yes. Every CRF-C0021-04010 unit dispatched by TOPNLMS undergoes a functional inspection and electrical continuity check prior to packaging. Units that do not pass inspection are quarantined and not shipped. A test record is available upon request for customers with quality management system requirements.

Q4: Can I order multiple units for strategic spare inventory, and are volume discounts available?
Yes. TOPNLMS supports bulk procurement for MRO departments and maintenance contractors. Volume pricing is available for orders of 3 or more units. Contact our sales team at [email protected] or +86 18359293191 to discuss pricing, lead times, and consolidated shipping arrangements for multi-SKU spare part orders.
