Reliance Electric DCVR-3 SC-68224 Original Industrial Spare DCVR Compatible

Product Overview

Reliance Electric DCVR-3 SC-68224 Original Industrial Spare DCVR Compatible: System Stability & Industrial Spare Maintenance Value

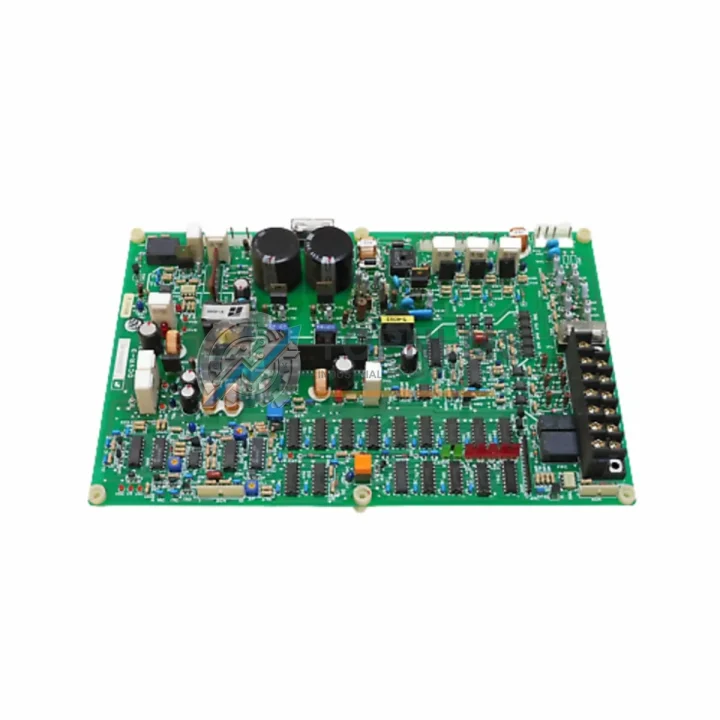

The Reliance Electric DCVR-3 SC-68224 is an original DC power supply module engineered for industrial drive systems requiring reliable, regulated DC power delivery. In high-demand manufacturing environments — from continuous process lines to heavy-duty motor drive cabinets — the integrity of the DC power supply module is foundational to system uptime. A degraded or failed DCVR-3 SC-68224 can cascade into drive faults, motor trip events, and unplanned production shutdowns that cost far more than the component itself.

Sourced as an original Reliance Electric spare, the DCVR-3 SC-68224 is fully compatible with the DCVR series drive architecture. It is the correct replacement for aging or failed units in legacy Reliance Electric drive cabinets still operating across steel mills, paper plants, chemical processing facilities, water treatment stations, and general manufacturing lines worldwide. With a 12-month warranty and pre-shipment functional testing, this module is procurement-ready for both emergency replacement and planned preventive maintenance stock.

Critical Technical Specs

Preventive Maintenance Strategy

When a DCVR-3 SC-68224 DC power supply module is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance engineers know that the power supply rarely fails in isolation. The DC bus, control logic, and feedback circuits of a Reliance Electric DCVR drive form an interdependent system — and a thorough inspection at the time of module replacement is the most cost-effective way to prevent the next unplanned outage.

During the same maintenance window, it is strongly recommended to inspect and, where appropriate, stock the following related components:

The DCVR-3 firing board (SCR gate driver board) works in direct coordination with the power supply module to control thyristor switching. If the SC-68224 has shown signs of voltage instability, the firing board should be bench-tested simultaneously. Similarly, the DCVR-3 regulator board governs speed and current feedback loops — a worn regulator can stress the power supply and accelerate its failure cycle.

The Reliance Electric armature bridge assembly and associated SCR modules within the drive cabinet are high-wear items that should be visually inspected for heat discoloration, cracking, or loose connections whenever the power supply is accessed. Stocking a spare SCR module alongside the DCVR-3 SC-68224 is a recognized best practice in facilities running legacy DC drive systems.

On the control wiring side, shielded control cables connecting the drive to the motor feedback encoder or tachometer should be checked for insulation integrity. Degraded cable shielding introduces noise into the DC control loop and can cause erratic speed regulation that is often misdiagnosed as a power supply fault. Replacing the SC-68224 without addressing cable integrity may result in repeat failures.

The 24VDC auxiliary power supply feeding the drive’s control logic board is another component worth inspecting. If the auxiliary supply is marginal, it can cause intermittent logic faults that appear as power supply issues. Facilities that maintain a spare 24VDC DIN-rail power supply module compatible with their Reliance Electric cabinet configuration report significantly faster fault resolution times.

For drives integrated into a broader PLC-controlled system — particularly those interfaced with Allen-Bradley SLC 500 or PLC-5 analog output modules providing speed reference signals — the analog I/O module’s calibration and wiring integrity should be verified during the same maintenance event. A drifting analog reference signal can cause the drive to operate outside its design envelope, placing unnecessary stress on the power supply module.

Finally, terminal blocks and DIN-rail mounted fuse holders within the drive cabinet should be inspected for corrosion, loose terminations, and blown fuses. Loose power connections are a leading cause of localized heating that degrades power supply modules prematurely. Replacing suspect terminal blocks and fuse elements as part of a comprehensive cabinet inspection extends the service life of the newly installed DCVR-3 SC-68224 and reduces the likelihood of a repeat callout.

Strategic Replacement Solutions

The Reliance Electric DCVR-3 series represents a generation of DC drive technology that remains deeply embedded in industrial infrastructure built between the 1980s and early 2000s. Many facilities continue to operate these drives because the cost and complexity of full drive replacement — including motor re-commissioning, PLC program updates, and production downtime — far exceeds the cost of maintaining the existing system with genuine spare parts.

The DCVR-3 SC-68224 is the correct OEM power supply module for this architecture. Using a genuine Reliance Electric module — rather than an aftermarket substitute — ensures that the drive’s protection circuits, current limiting behavior, and thermal management characteristics remain within the original design specification. This is particularly important in applications where the drive is controlling a critical process motor with no standby redundancy.

For facilities managing a fleet of DCVR-series drives, establishing a minimum stock level of one SC-68224 per drive cabinet is a widely adopted strategy. The module’s compact form factor and stable shelf life make it practical to hold in a climate-controlled spare parts store. When a drive fault occurs, having the replacement module on-site eliminates the lead time risk entirely — the difference between a two-hour repair and a two-week production delay.

For older DCVR-3 installations where the full drive chassis is approaching end-of-life, the SC-68224 power supply module can serve as a bridge solution — restoring drive functionality while a longer-term modernization plan is developed and budgeted. This approach is common in capital-constrained maintenance environments where full drive replacement must be deferred to the next fiscal cycle.
