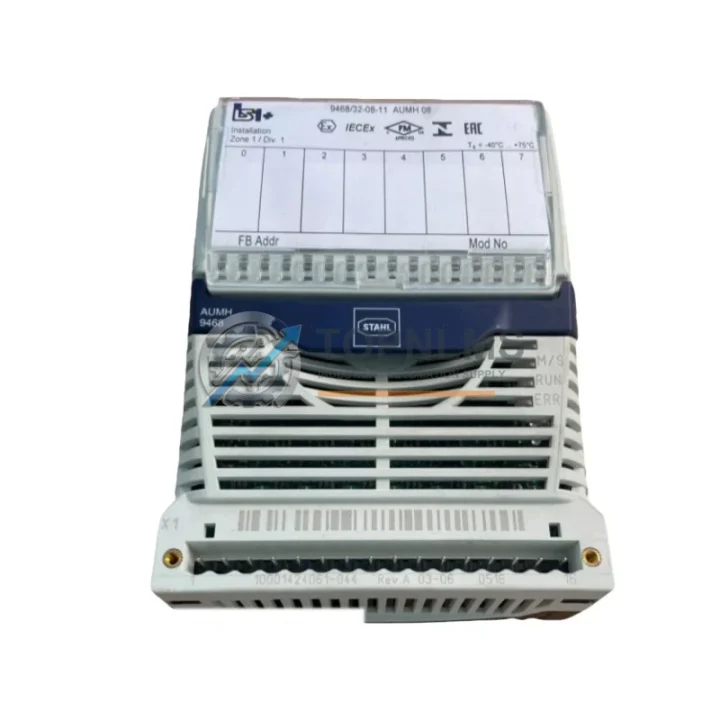

R. STAHL 9468/32-08-11 Ruggedized IS Barrier: Industrial Resilience for Hazardous Environments

The R. STAHL 9468/32-08-11 is a precision-engineered intrinsically safe analog universal module designed to deliver unwavering signal integrity in the most demanding industrial environments. Built on R. STAHL’s proven 9468 Series platform, this IS barrier is purpose-built for Zone 1 and Zone 2 hazardous area installations where explosive atmospheres, extreme temperatures, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference are everyday realities. Whether deployed in oil and gas processing facilities, petrochemical plants, offshore platforms, underground mining operations, or heavy industrial manufacturing lines, the 9468/32-08-11 provides the galvanic isolation and signal conditioning performance that safety-critical control systems demand.

In continuous production environments, signal integrity between field instruments and control room equipment is non-negotiable. The 9468/32-08-11 acts as the critical interface between hazardous-area sensors — including 4–20 mA transmitters, RTDs, thermocouples, and HART-compatible devices — and the safe-area control infrastructure. Its universal analog input/output capability makes it an exceptionally versatile component within distributed control architectures, reducing the need for multiple barrier types across a single installation.

Rugged Specifications Table

Comprehensive Protection Solutions

The 9468/32-08-11 does not operate in isolation — it is a cornerstone component within a broader intrinsic safety and process control architecture. In a typical hazardous-area control cabinet, this IS barrier works in concert with R. STAHL 9160 Series power supply units, which provide the stable, isolated DC power required to maintain barrier performance under fluctuating load conditions. Alongside the 9468/32-08-11, engineers frequently deploy R. STAHL 9163 Series Zener barriers for simple, cost-effective passive protection on discrete signal loops, while the 9468 Series galvanic isolators handle more complex universal analog channels requiring active signal conditioning.

For installations integrating HART field devices, the 9468/32-08-11 supports transparent HART communication pass-through, enabling asset management systems to communicate with smart transmitters without additional multiplexers. This is particularly valuable when paired with HART-capable DCS I/O cards from platforms such as the Honeywell Experion C300 controller or the ABB S800 I/O modules, where field device diagnostics are routed directly to the control room.

Within the control cabinet, the 9468/32-08-11 is typically mounted on DIN rail alongside R. STAHL 9185 Series terminal modules and marshalling components, ensuring clean, organized wiring between field cables and the IS barrier backplane. For installations requiring higher channel density, the 9468 Series is designed to integrate with R. STAHL’s IS1+ Remote I/O system, allowing distributed barrier functionality to be managed from a central DCS or safety PLC. Safety-rated systems may also incorporate R. STAHL 9440 Series safety relay modules to provide SIL 2-rated discrete output control in the same cabinet footprint.

On the communication side, process data from the 9468/32-08-11 can be aggregated through PROFIBUS PA or FOUNDATION Fieldbus H1 segment couplers, enabling seamless integration with Siemens SIMATIC PCS 7 or Yokogawa CENTUM VP distributed control systems. Industrial Ethernet switches rated for hazardous-area cabinet use, such as those from the Hirschmann MICE series, are commonly deployed in the same enclosure to support higher-level SCADA connectivity without compromising the IS integrity of the barrier circuits.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the R. STAHL 9468/32-08-11 is routinely specified for wellhead control panels, gas compression skids, and pipeline metering stations where Zone 1 classification is mandatory. Its ability to condition signals from pressure transmitters, flow meters, and temperature sensors — while maintaining Ex ia protection — makes it indispensable for continuous, unattended operation in remote field locations.

In petrochemical and refinery environments, the 9468/32-08-11 supports reactor monitoring loops, distillation column instrumentation, and storage tank level measurement systems. The module’s robust EMC performance ensures that signal accuracy is maintained even in the presence of high-power variable frequency drives (VFDs), large motor starters, and high-voltage switchgear operating in adjacent panels.

Underground coal and hard-rock mining operations rely on IS barriers like the 9468/32-08-11 to protect ventilation monitoring systems, conveyor belt instrumentation, and methane detection networks. In these environments, the combination of dust ingress, mechanical shock, and explosive atmosphere classification demands the highest level of intrinsic safety certification — a standard the 9468 Series consistently meets.

Power generation facilities, including thermal, hydroelectric, and renewable energy plants, deploy the 9468/32-08-11 in turbine control panels and generator protection systems where analog signal fidelity directly impacts grid stability. Water and wastewater treatment plants use this module to interface with pH sensors, dissolved oxygen analyzers, and flow transmitters in chemically aggressive environments. Metallurgical and steel production facilities benefit from the module’s wide operating temperature range and vibration tolerance in rolling mill and furnace control applications.
