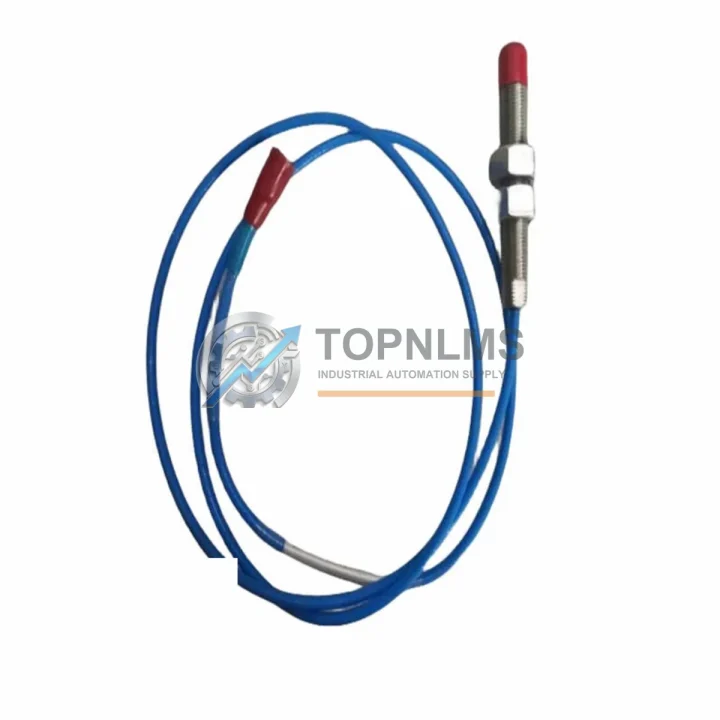

PROVIBTECH TM0180-A08-B00-C12-D10 Replacement & Upgrade Solution for TM Series: Smooth Migration from Legacy Vibration Monitoring Systems

The PROVIBTECH TM0180-A08-B00-C12-D10 is an eddy-current proximity probe engineered for non-contact displacement and vibration measurement in rotating machinery protection systems. As legacy TM Series probes reach end-of-life or become increasingly difficult to source, plant engineers and reliability teams face mounting pressure to migrate their condition monitoring infrastructure without triggering extended shutdowns or costly rewiring campaigns. This product page is designed to support that migration decision with full technical transparency.

The TM0180-A08-B00-C12-D10 designation encodes the probe’s key physical and electrical parameters: 8mm probe tip diameter (A08), standard body configuration (B00), 12mm linear measurement range (C12), and 10mm driver-to-probe cable length (D10). These specifications align directly with the Bently Nevada 3300 XL 8mm and Emerson CSI 6500 probe families, making this unit a viable drop-in replacement for sites currently running those platforms. The probe operates on the standard –24 VDC bias voltage supply and outputs a linear voltage signal in the –2 VDC to –18 VDC range, compatible with most existing vibration monitoring racks without signal conditioning changes.

For facilities upgrading from discontinued PROVIBTECH TM0100 or TM0150 series probes, the TM0180-A08-B00-C12-D10 maintains backward-compatible connector pinouts and cable jacket specifications. Field technicians can reuse existing armored extension cables and junction boxes in most installations, significantly reducing retrofit labor. The probe body threads (M10×1.0) are consistent across the TM Series, so existing probe holders, bracket mounts, and lock nuts remain serviceable during the upgrade.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy vibration monitoring system to the TM0180-A08-B00-C12-D10 rarely involves the probe alone. In most plant environments, the probe is one node in a broader measurement chain that includes the driver/oscillator module, the monitoring rack, signal cables, and the supervisory control layer. Understanding how each component interacts with the new probe is essential for a zero-rework installation.

The TM0180-A08-B00-C12-D10 is designed to pair with the PROVIBTECH TM0182 or TM0183 proximity driver modules. If your existing installation uses an older TM0181 driver, a driver swap is recommended to take full advantage of the extended 12mm linear range. The TM0182 driver provides improved temperature compensation and a wider output impedance range, which is particularly valuable in high-vibration compressor or turbine applications where ambient temperature fluctuates significantly.

For sites running Bently Nevada 3500 Series monitoring racks, the TM0180-A08-B00-C12-D10 integrates without modification to the rack’s 3500/42M Proximitor I/O module. The probe’s –24 VDC bias and standard output scale factor (200 mV/mil or 7.87 V/mm) are recognized natively by the 3500 rack’s configuration software. Similarly, facilities using the Emerson AMS 6500 ATG platform can configure the new probe through the standard channel setup wizard without custom scaling.

Extension cable management is another critical consideration during migration. The TM0180-A08-B00-C12-D10 is compatible with standard PROVIBTECH TM0190 series armored extension cables in lengths from 0.5m to 9m. If the existing cable run exceeds 9m, a TM0185 signal conditioner or an intermediate junction box with impedance matching should be incorporated into the design. This is especially relevant in large turbine halls where probe-to-rack distances can exceed 15 meters.

When the migration also involves upgrading the monitoring rack itself — for example, moving from a legacy PROVIBTECH VM600 rack to a newer MPS200 or Emerson Ovation DCS platform — the TM0180-A08-B00-C12-D10 remains compatible at the field device level. The probe’s analog output is rack-agnostic, and the signal can be terminated into any standard 4–20 mA or voltage input card with appropriate scaling. For DCS integration, a PROVIBTECH TM0195 signal isolator is recommended to prevent ground loops between the probe circuit and the DCS analog input card.

In control cabinet installations where space is constrained, the TM0180-A08-B00-C12-D10’s compact driver module (TM0182) occupies a standard 35mm DIN rail slot, making it straightforward to retrofit into existing marshalling cabinets alongside terminal blocks, surge protection modules, and cable management trays. The probe cable entry can be routed through standard M20 cable glands, maintaining IP65 enclosure integrity without custom cutouts.

For facilities that also need to upgrade their HMI layer during the migration, the probe’s output integrates cleanly with PROVIBTECH’s VM-series display units and third-party SCADA systems via Modbus RTU or HART protocol adapters. This allows the new probe to feed real-time vibration data into existing plant historian systems — such as OSIsoft PI or Wonderware — without requiring changes to the data acquisition layer.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing a TM0150 with the TM0180-A08-B00-C12-D10?
A: In most cases, yes. The connector pinout and cable jacket specifications are consistent across the TM Series. Verify that the existing extension cable length is within the 9m limit for the TM0182 driver. If the cable is longer, add a TM0185 signal conditioner at the junction point.

Q: Do I need to recalibrate my monitoring rack after installing the new probe?
A: A gap voltage check and scale factor verification are recommended after any probe replacement. The TM0180-A08-B00-C12-D10 uses the same 200 mV/mil scale factor as the TM0150, so rack configuration changes are typically not required. However, the extended 12mm linear range means the optimal gap voltage may shift slightly — set the probe gap to achieve –10 VDC at the midpoint of the measurement range.

Q: Is the TM0180-A08-B00-C12-D10 compatible with Bently Nevada 3300 XL drivers?
A: Yes. The probe’s electrical characteristics are compatible with the Bently Nevada 3300 XL 8mm proximity system. The scale factor and bias voltage are within the 3300 XL driver’s acceptance range. No hardware modification is required, but verify the driver’s gap voltage output before final commissioning.

Q: What communication protocols does this probe support for DCS integration?
A: The TM0180-A08-B00-C12-D10 outputs a standard analog voltage signal. For digital protocol integration (Modbus RTU, PROFIBUS, or HART), a PROVIBTECH TM0195 signal isolator or a compatible protocol converter is required between the driver output and the DCS analog input card.

Q: How much physical space does the driver module require in the control cabinet?
A: The TM0182 driver module occupies a single 35mm DIN rail slot (approximately 22.5mm wide). It can be installed in standard marshalling cabinets alongside existing terminal blocks and surge protection devices without requiring additional cabinet space.

Q: Can this probe be used on non-ferrous target materials?
A: The TM0180-A08-B00-C12-D10 is optimized for ferrous and Inconel targets. For non-ferrous targets (aluminum, titanium, or copper alloys), a target material correction factor must be applied. Contact TOPNLMS for application-specific calibration support.

Warranty Assurance

Every PROVIBTECH TM0180-A08-B00-C12-D10 unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each probe undergoes a multi-point functional test including bias voltage verification, scale factor measurement, linearity check across the full 12mm range, and connector integrity inspection. Test records are available upon request for quality-critical applications.

If a unit fails within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment within 3–5 business days. For urgent plant situations, expedited dispatch is available — contact our team directly to discuss priority fulfillment options. We maintain buffer stock of TM Series probes and drivers to support rapid response for unplanned outages.

Our after-sales team is available to assist with installation questions, gap setting guidance, driver compatibility verification, and DCS integration support. We understand that probe replacement in a live plant environment carries operational risk, and we are committed to providing the technical support needed to complete the retrofit safely and efficiently.

For procurement teams, we provide commercial invoices, packing lists, and certificates of conformance with every shipment. Export documentation for cross-border orders is handled in compliance with Chinese customs regulations, with HS code 9031.80 applied to proximity probe shipments.
